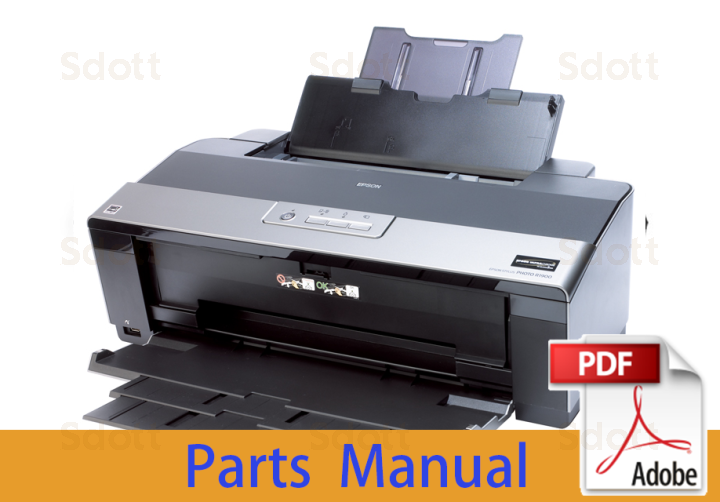

Parts Manual for EPSON StylusPhoto R1900
In stock
SKU
EP-R1900-PM
$1.20
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
EPSON StylusPhoto R1900 Series
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******

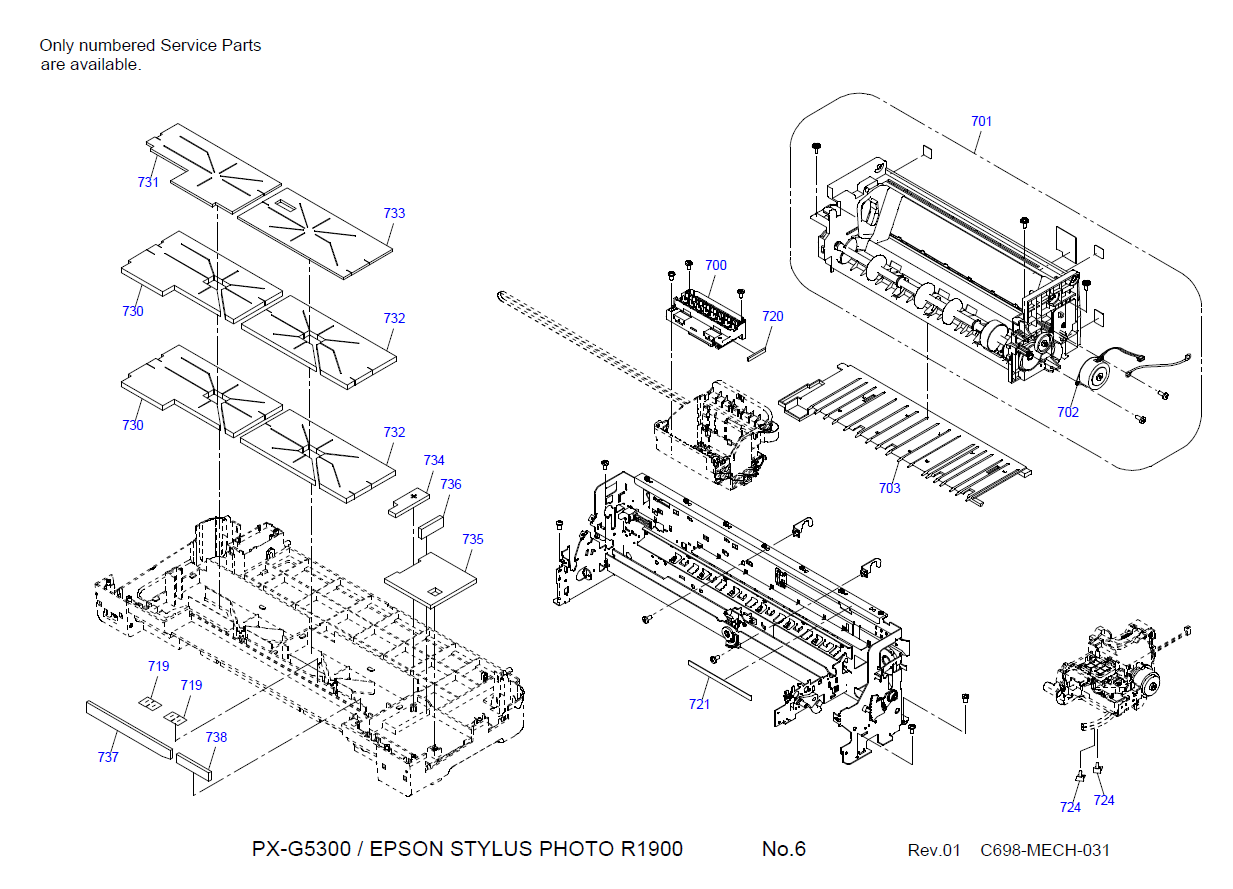

| Model | Article | Reference | Description |
| STYLUS PHOTO R1900 | 1304557 | 8 | ADAPTER,CDR |
| STYLUS PHOTO R1900 | 1274011 | 10 | ROLL PAPER ASSY.,LEFT,B,ASP |
| STYLUS PHOTO R1900 | 1477651 | 100 | HOUSING UPPER SUB ASSY ,B, ESL ASP |
| STYLUS PHOTO R1900 | 1554684 | 100 | HOUSING UPPER SUB ASSY ,B, ESL ASP |
| STYLUS PHOTO R1900 | 1477652 | 101 | PANEL SUB ASSY ,B, ESL ASP |
| STYLUS PHOTO R1900 | 1465190 | 102 | DECORATION PLATE,LEFT |
| STYLUS PHOTO R1900 | 1465170 | 103 | HOUSING,LOWER |
| STYLUS PHOTO R1900 | 1477662 | 104 | HOUSING CD-R ASSY , ESL ASP |
| STYLUS PHOTO R1900 | 1465189 | 107 | DECORATION PLATE,RIGHT |
| STYLUS PHOTO R1900 | 1477653 | 108 | PAPER SUPPORT SUB ASSY ,B, ESL ASP |
| STYLUS PHOTO R1900 | 1465174 | 109 | HOUSING,REAR |
| STYLUS PHOTO R1900 | 1274012 | 11 | Replace: 1552098 |
| STYLUS PHOTO R1900 | 1552098 | 11 | ROLL PAPER ASSY.,RIGHT,B,ASP |
| STYLUS PHOTO R1900 | 2117204 | 114 | HARNESS |
| STYLUS PHOTO R1900 | 1481579 | 12 | TRAY CDR ASSY,ESL |
| STYLUS PHOTO R1900 | 1295992 | 123 | SHEET,LED |
| STYLUS PHOTO R1900 | 1477658 | 126 | COVER,PRINTER,ASSY ,B ASP |
| STYLUS PHOTO R1900 | 1470311 | 127 | LABEL,CAUTION,CDR,B |
| STYLUS PHOTO R1900 | 1465191 | 130 | DECORATION PLATE,FRONT,RIGHT |
| STYLUS PHOTO R1900 | 1465192 | 131 | DECORATION PLATE,FRONT,LEFT |
| STYLUS PHOTO R1900 | 1477648 | 132 | HOLDER PICTBRIDGE ASSY ESL ASP |
| STYLUS PHOTO R1900 | 1477649 | 133 | STACKER ASSY ESL ASP |
| STYLUS PHOTO R1900 | 1477664 | 134 | HOUSING UPPER SUPPORT SUB ASSY,ESL ASP |
| STYLUS PHOTO R1900 | 2113395 | 135 | HIGH VOLTAGE MODULE |
| STYLUS PHOTO R1900 | 1108107 | 136 | FOOT |
| STYLUS PHOTO R1900 | 2117267 | 137 | HARNESS,ELECTRODE |
| STYLUS PHOTO R1900 | 2117206 | 138 | HARNESS |
| STYLUS PHOTO R1900 | 1293641 | 139 | TUBE,INK EJECT,LEFT,F |
| STYLUS PHOTO R1900 | 1293642 | 140 | TUBE,INK EJECT,RIGHT,F |
| STYLUS PHOTO R1900 | 1466312 | 141 | HOLDER,TUBE,INK EJECT,B |
| STYLUS PHOTO R1900 | 1479356 | 142 | LABEL,GENUINE INK,T087/EURO |
| STYLUS PHOTO R1900 | 1480515 | 143 | LABEL,HG2,B |
| STYLUS PHOTO R1900 | 1477645 | 17 | PAPER SUPPORT ASSY ,ESL ASP |
| STYLUS PHOTO R1900 | 1405761 | 18 | Replace: 1529123 |
| STYLUS PHOTO R1900 | 1529123 | 18 | LABEL,CAUTION,CUT PAPER GUIDE,B |
| STYLUS PHOTO R1900 | 2117123 | 200 | BOARD ASSY.,MAIN |
| STYLUS PHOTO R1900 | 2117127 | 300 | BOARD ASSY.,POWER SUPPLY |
| STYLUS PHOTO R1900 | 2145870 | 350 | BOARD ASSY.,PANEL |
| STYLUS PHOTO R1900 | 2117132 | 350 | Replace: 2145870 |
| STYLUS PHOTO R1900 | 2117205 | 360 | HARNESS |
| STYLUS PHOTO R1900 | 2107708 | 400 | POWER CABLE |
| STYLUS PHOTO R1900 | 2121524 | 500 | Replace: 2123209 |
| STYLUS PHOTO R1900 | 2123209 | 500 | PRINTER MECHANISM,ESL ASP |
| STYLUS PHOTO R1900 | 1486633 | 501 | CARRIDGE SUB ASSY,ESL ASP |
| STYLUS PHOTO R1900 | 1477663 | 502 | HOLDER CSIC ASSY,ESL ASP |
| STYLUS PHOTO R1900 | 1292771 | 503 | HOLDER,DETECTOR,PW |
| STYLUS PHOTO R1900 | 2109392 | 504 | Replace: 2109393 |
| STYLUS PHOTO R1900 | 2117265 | 505 | BOARD ASSY.,ENCODER,CR |
| STYLUS PHOTO R1900 | 2084550 | 506 | BOARD ASSY.,INK MARK |
| STYLUS PHOTO R1900 | 1262695 | 507 | HOLDER,BOARD ASSY.,ENCORDER,PF |
| STYLUS PHOTO R1900 | 2117268 | 508 | BOARD ASSY.,ENCODER,PF |
| STYLUS PHOTO R1900 | 1477656 | 509 | COVER IC ASSY ,ESL ASP |
| STYLUS PHOTO R1900 | 1292785 | 511 | SHAFT,CR,GUIDE |
| STYLUS PHOTO R1900 | 1443407 | 512 | SCALE,CR,B |
| STYLUS PHOTO R1900 | 1233669 | 513 | TORSION SPRING,24.7 |
| STYLUS PHOTO R1900 | 2112637 | 514 | MOTOR ASSY.,CR |
| STYLUS PHOTO R1900 | 2090524 | 515 | CABLE,HEAD,B |
| STYLUS PHOTO R1900 | 2090523 | 516 | CABLE,HEAD |
| STYLUS PHOTO R1900 | 2020393 | 517 | DETECTOR,LEAF,B2 |
| STYLUS PHOTO R1900 | 2117269 | 518 | HARNESS,DETECTOR,CD-R |
| STYLUS PHOTO R1900 | 2140447 | 518 | HARNESS,DETECTOR,CD-R |
| STYLUS PHOTO R1900 | 1303977 | 519 | AUTO PG ASSY.,ASP |
| STYLUS PHOTO R1900 | 1306533 | 520 | TRAY CDR BASE SUB ASSY.,ASP |
| STYLUS PHOTO R1900 | 1477655 | 521 | INK SYSTEM ASSY ,ESL,ASP |
| STYLUS PHOTO R1900 | 1486634 | 522 | PAPER GUIDE UPPER ASSY , ESL ASP |
| STYLUS PHOTO R1900 | 1292591 | 523 | TORSION SPRING,PAPER GUIDE,UPPER |
| STYLUS PHOTO R1900 | 2119427 | 524 | MOTOR ASSY.,PF,B |
| STYLUS PHOTO R1900 | 1421928 | 525 | FRAME PAPER EJ SUB ASSY.,B,ASP,ESL |
| STYLUS PHOTO R1900 | 1303962 | 526 | ROLLER,PF ASSY.,ASP |
| STYLUS PHOTO R1900 | 1477659 | 528 | PAPER GUIDE FRONT & ROLLER EJ ASSY,ESL A |
| STYLUS PHOTO R1900 | 1303974 | 529 | HOLDER RELEASE SUB ASSY.,ASP |
| STYLUS PHOTO R1900 | 1530857 | 529 | HOLDER RELEASE SUB ASSY.,ASP |
| STYLUS PHOTO R1900 | 1303976 | 532 | Replace: 1530584 |
| STYLUS PHOTO R1900 | 1303980 | 534 | RELEASE CD-R,LEFT ASSY.,ASP |
| STYLUS PHOTO R1900 | 1306294 | 535 | RELEASE CD-R,RIGHT ASSY ASP, ESL |
| STYLUS PHOTO R1900 | 1477660 | 536 | POROUS PAD,PAPER GUIDE,LEFT,ASP |
| STYLUS PHOTO R1900 | 1552101 | 536 | POROUS PAD,PAPER GUIDE,LEFT,ASP |
| STYLUS PHOTO R1900 | 1477661 | 538 | Replace: 1552100 |
| STYLUS PHOTO R1900 | 1552100 | 538 | Replace: 1569061 |
| STYLUS PHOTO R1900 | 1569061 | 538 | POROUS PAD,PAPER GUIDE,FRONT,ASP |
| STYLUS PHOTO R1900 | 1466359 | 539 | Replace: 1513177 |
| STYLUS PHOTO R1900 | 1513177 | 539 | POROUS PAD,PAPER GUIDE,INK EJECT,UPPER |
| STYLUS PHOTO R1900 | 2090534 | 541 | HARNESS,ENCORDER,PF |
| STYLUS PHOTO R1900 | 2090522 | 542 | HARNESS,BOARD ASSY.,RELAY |
| STYLUS PHOTO R1900 | 1552099 | 545 | CLEANER,HEAD,C,ASP |
| STYLUS PHOTO R1900 | 1275979 | 545 | Replace: 1552099 |
| STYLUS PHOTO R1900 | 2090528 | 549 | CABLE,DETECTOR,8 |
| STYLUS PHOTO R1900 | 1303975 | 550 | FRAG RELEASE ASSY.,ASP |
| STYLUS PHOTO R1900 | 2119426 | 553 | HARNESS,MOTOR,B |
| STYLUS PHOTO R1900 | 1262736 | 554 | CAM,RELEASE,LOCK,PAPER EJECT |
| STYLUS PHOTO R1900 | 1466360 | 560 | Replace: 1513178 |
| STYLUS PHOTO R1900 | 1513178 | 560 | POROUS PAD,PAPER GUIDE,INK EJECT,LEFT |
| STYLUS PHOTO R1900 | 1466361 | 561 | Replace: 1513179 |
| STYLUS PHOTO R1900 | 1513179 | 561 | POROUS PAD,PAPER GUIDE,INK EJECT,RIGHT |
| STYLUS PHOTO R1900 | 1466365 | 562 | POROUS PAD,GUIDE,INK EJECT,LEFT |
| STYLUS PHOTO R1900 | 1466362 | 563 | POROUS PAD,GUIDE,INK EJECT |
| STYLUS PHOTO R1900 | 1466492 | 564 | GUIDE,IC,B |
| STYLUS PHOTO R1900 | 1466355 | 565 | TRAY,POROUS PAD,PAPER GUIDE,FRONT |
| STYLUS PHOTO R1900 | 1513176 | 565 | TRAY,POROUS PAD,PAPER GUIDE,FRONT |
| STYLUS PHOTO R1900 | F186000 | 700 | PRINT HEAD |
| STYLUS PHOTO R1900 | 1569233 | 701 | ASF UNIT, ESL ASP |
| STYLUS PHOTO R1900 | 1624770 | 701 | ASF UNIT, ESL ASP |
| STYLUS PHOTO R1900 | 1477646 | 701 | Replace: 1569233 |
| STYLUS PHOTO R1900 | 2090539 | 702 | MOTOR,ASSY.,ASF |
| STYLUS PHOTO R1900 | 1292847 | 703 | PAPER GUIDE,MANUAL |
| STYLUS PHOTO R1900 | 1214680 | 719 | POROUS PAD,INK EJECT,H |
| STYLUS PHOTO R1900 | 1218027 | 720 | POROUS PAD,CABLE,HEAD |
| STYLUS PHOTO R1900 | 1470313 | 721 | LABEL,INK POSITION,B |
| STYLUS PHOTO R1900 | 1436642 | 724 | CLAMP,TUBE |
| STYLUS PHOTO R1900 | 1465227 | 730 | POROUS PAD,INK EJ,LEFT,LOWER |
| STYLUS PHOTO R1900 | 1465229 | 731 | POROUS PAD,INK EJ,LEFT,UPPER |
| STYLUS PHOTO R1900 | 1465230 | 732 | POROUS PAD,INK EJ,RIGHT,LOWER |
| STYLUS PHOTO R1900 | 1465231 | 733 | POROUS PAD,INK EJ,RIGHT,UPPER |
| STYLUS PHOTO R1900 | 1445777 | 734 | POROUS PAD,INK EJECT,IS,LEFT |
| STYLUS PHOTO R1900 | 1445778 | 735 | POROUS PAD,INK EJECT,IS,LOWER,FB |
| STYLUS PHOTO R1900 | 1445779 | 736 | POROUS PAD,INK EJECT,IS,LOWER,LEFT |
| STYLUS PHOTO R1900 | 1445780 | 737 | POROUS PAD,INK EJECT,TUBE,FA |
| STYLUS PHOTO R1900 | 1445781 | 738 | POROUS PAD,INK EJECT,TUBE,FB |
| STYLUS PHOTO R1900 | 1476034 | NON FIG | INK CART.UNBOXED,C-1S,PIG'T,J20C,AS |
| STYLUS PHOTO R1900 | 1476040 | NON FIG | INK CART.UNBOXED,GO-1S,PIG'T,J20C,AS |
| STYLUS PHOTO R1900 | 1476035 | NON FIG | INK CART.UNBOXED,M-1S,PIG'T,J20C,AS |
| STYLUS PHOTO R1900 | 1476038 | NON FIG | INK CART.UNBOXED,MK-1S,PIG'T,J20C,AS |
| STYLUS PHOTO R1900 | 1476039 | NON FIG | INK CART.UNBOXED,OR-1S,PIG'T,J20C,AS |
| STYLUS PHOTO R1900 | 1476033 | NON FIG | INK CART.UNBOXED,PK-1S,PIG'T,J20C,AS |
| STYLUS PHOTO R1900 | 1476037 | NON FIG | INK CART.UNBOXED,R-1S,PIG'T,J20C,AS |
| STYLUS PHOTO R1900 | 1476036 | NON FIG | INK CART.UNBOXED,Y-1S,PIG'T,J20C,AS |
| STYLUS PHOTO R1900 | 4110878 | NON FIG | SETTING UP MANUAL SDOTT.COM |
| STYLUS PHOTO R1900 | 3102643 | NON FIG | SOFTWARE CD,E/F/I/G/S/P/D |
| Manual Name | StylusPhoto R1900 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 1.4M |
| Pages | 6 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON StylusPhoto R1900 Series |
