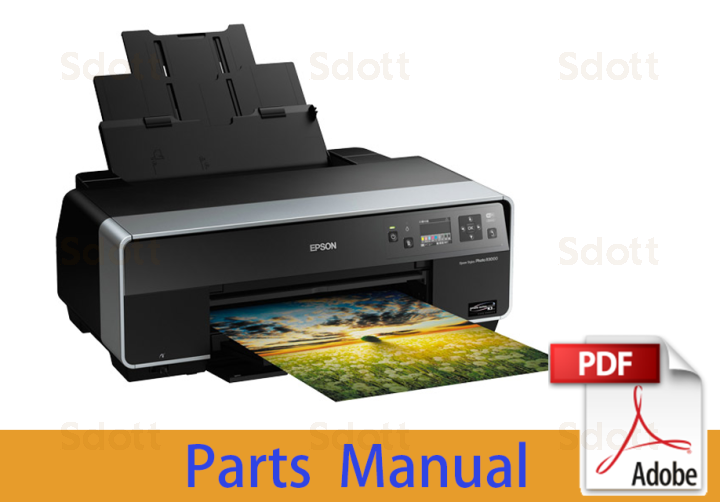

Parts Manual for EPSON StylusPhoto R3000
In stock
SKU
EP-R3000-PM
$1.20
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******
| Model | Article | Reference | Description |
| STYLUS PHOTO R3000 | 1304557 | 8 | ADAPTER,CDR |
| STYLUS PHOTO R3000 | 1535385 | 10 | Replace: 1582486 |
| STYLUS PHOTO R3000 | 1582486 | 10 | FRAME,ROLLE PAPER,LEFT |
| STYLUS PHOTO R3000 | 1533838 | 100 | HOUSING,REAR |
| STYLUS PHOTO R3000 | 1533840 | 101 | COVER,RIGHT |
| STYLUS PHOTO R3000 | 1533841 | 102 | COVER,LEFT |
| STYLUS PHOTO R3000 | 1533863 | 103 | DECORATION PLATE,RIGHT |
| STYLUS PHOTO R3000 | 1533864 | 104 | DECORATION PLATE,LEFT |
| STYLUS PHOTO R3000 | 1533858 | 105 | BUTTON,OK SDOTT |
| STYLUS PHOTO R3000 | 1533859 | 106 | COVER,LCD |
| STYLUS PHOTO R3000 | 1535386 | 11 | Replace: 1582487 |
| STYLUS PHOTO R3000 | 1582487 | 11 | FRAME,ROLLE PAPER,RIGHT |
| STYLUS PHOTO R3000 | 1550689 | 110 | PAPER SUPPORT SUB ASSY,NON EHC,IEI,ASP |
| STYLUS PHOTO R3000 | 1550687 | 111 | COVER, PRINTER, ASSY, ASP |
| STYLUS PHOTO R3000 | 1550684 | 112 | HOUSING UPPER UNIT.,IEI,ASP |
| STYLUS PHOTO R3000 | 1550686 | 113 | HOUSING UPPER SUPPORT.B.,ASSY.,IEI,ASP |
| STYLUS PHOTO R3000 | 1549014 | 12 | TRAY,CDR |
| STYLUS PHOTO R3000 | 1236444 | 13 | SHEET,CD,DUMMY |
| STYLUS PHOTO R3000 | 2130056 | 200 | BOARD ASSY.,MAIN |
| 6534A,STANDARD | |||
| STYLUS PHOTO R3000 | 2144321 | 200 | BOARD ASSY.,MAIN |
| 6534A,STANDARD | |||
| STYLUS PHOTO R3000 | 2130133 | 202 | BOARD ASSY.,SUB |
| 6541A,STANDARD | |||
| STYLUS PHOTO R3000 | 2135226 | 203 | WIRELESS LAN USB MODULE |
| STYLUS PHOTO R3000 | 2130248 | 204 | CR CONTACT MODULE |
| E6756CR | |||
| STYLUS PHOTO R3000 | 2142636 | 205 | CONNECTOR,CSIC,H |
| ,, | |||
| STYLUS PHOTO R3000 | 2131886 | 205 | Replace: 2142636 |
| STYLUS PHOTO R3000 | 2130060 | 300 | BOARD ASSY.,POWER SUPPLY |
| 6536A,CA86/CB35_STANDARD | |||
| STYLUS PHOTO R3000 | 2130062 | 350 | BOARD ASSY.,PANEL |
| 6537A,STANDARD | |||
| STYLUS PHOTO R3000 | 2121764 | 400 | POWER CABLE |
| STYLUS PHOTO R3000 | 2136990 | 500 | Replace: 2155174 |
| STYLUS PHOTO R3000 | 2155174 | 500 | PRINTER MECHANISM,CA86,ASP,IEI |
| STYLUS PHOTO R3000 | 1539519 | 501 | INK SUPPLY UNIT,IEI |
| STYLUS PHOTO R3000 | 1604456 | 501 | INK SUPPLY UNIT,IEI |
| STYLUS PHOTO R3000 | 1558483 | 502 | ROLLER PF SUB ASSY,ASP,,IEI |
| STYLUS PHOTO R3000 | 1539004 | 503 | PF ENCODER SUB ASSY.,IEI |
| STYLUS PHOTO R3000 | 1539013 | 504 | Replace: 1616685 |
| STYLUS PHOTO R3000 | 1616685 | 504 | INK SYSTEM ASSY.,IEI |
| STYLUS PHOTO R3000 | 1539017 | 505 | TRAY FRONT ASSY.,IEI |
| STYLUS PHOTO R3000 | 1559695 | 506 | CARRIAGE SUB ASSY, ASP,,IEI |
| STYLUS PHOTO R3000 | 1539292 | 507 | PAPER DETECTOR SUB ASSY |
| STYLUS PHOTO R3000 | 1539301 | 508 | AUTO PG UT |
| STYLUS PHOTO R3000 | 1540368 | 509 | FRAME ASSY PAPER EJECT |
| STYLUS PHOTO R3000 | 1518851 | 510 | Replace: 1557662 |
| STYLUS PHOTO R3000 | 1557662 | 510 | SCALE,CR |
| STYLUS PHOTO R3000 | 1535516 | 511 | GUIDE,TUBE,CR |
| STYLUS PHOTO R3000 | 1535906 | 512 | POROUS PAD,GUIDE,INK EJECT |
| STYLUS PHOTO R3000 | 1535907 | 513 | POROUS PAD,PAPER GUIDE,LEFT |
| STYLUS PHOTO R3000 | 1619864 | 513 | POROUS PAD,PAPER GUIDE,LEFT |
| STYLUS PHOTO R3000 | 1535905 | 514 | POROUS PAD,PAPER GUIDE,FRONT |
| STYLUS PHOTO R3000 | 1619863 | 514 | POROUS PAD,PAPER GUIDE,FRONT |
| STYLUS PHOTO R3000 | 1535908 | 515 | POROUS PAD,GUIDE,INK EJECT,LEFT |
| STYLUS PHOTO R3000 | 2020393 | 517 | DETECTOR,LEAF,B2 |
| STYLUS PHOTO R3000 | 1535369 | 518 | LOCK,TRAY,FRONT |
| STYLUS PHOTO R3000 | 5125513 | 519 | PAD,FRONT TRAY SUPPORT |
| STYLUS PHOTO R3000 | 1550690 | 521 | PAPER GUIDE FRONT SUB ASSY UNIT.,IEI,ASP |
| STYLUS PHOTO R3000 | F196010 | 700 | PRINT HEAD |
| 1440 | |||
| STYLUS PHOTO R3000 | 1539007 | 701 | WASTE FLUID TUBE ASSY.,IEI |
| STYLUS PHOTO R3000 | 1539031 | 702 | TRAY POROUS PAD UNIT.,IEI |
| STYLUS PHOTO R3000 | 1539032 | 703 | Replace: 1605927 |
| STYLUS PHOTO R3000 | 1605927 | 703 | MOTOR,DECOMP,ASSY.,IEI |
| STYLUS PHOTO R3000 | 1539305 | 704 | STACKER UNIT |
| STYLUS PHOTO R3000 | 1539324 | 705 | COVER,STACKER UNIT.,IEI |
| STYLUS PHOTO R3000 | 1539308 | 706 | CABLE HEAD ASSY.,IEI |
| STYLUS PHOTO R3000 | 1535535 | 707 | HOLDER,CABLE,TUBE,RELAY |
| STYLUS PHOTO R3000 | 1535993 | 708 | POROUS PAD,INK EJECT |
| STYLUS PHOTO R3000 | 1535994 | 709 | POROUS PAD,INK EJECT,B |
| STYLUS PHOTO R3000 | 1535995 | 710 | POROUS PAD,INK EJECT,C |
| STYLUS PHOTO R3000 | 1535996 | 711 | POROUS PAD,INK EJECT,D |
| STYLUS PHOTO R3000 | 1535997 | 712 | POROUS PAD,INK EJECT,E |
| STYLUS PHOTO R3000 | 1535998 | 713 | POROUS PAD,INK EJECT,F |
| STYLUS PHOTO R3000 | 1535999 | 714 | POROUS PAD,INK EJECT,G |
| STYLUS PHOTO R3000 | 1536000 | 715 | POROUS PAD,INK EJECT,H |
| STYLUS PHOTO R3000 | 1536001 | 716 | POROUS PAD,INK EJECT,I |
| STYLUS PHOTO R3000 | 1536002 | 717 | POROUS PAD,INK EJECT,J |
| STYLUS PHOTO R3000 | 1536003 | 718 | POROUS PAD,INK EJECT,K |
| STYLUS PHOTO R3000 | 1521980 | 719 | FOOT,B |
| STYLUS PHOTO R3000 | 1550691 | 720 | ASF.SUB.ASSY,IEI,ASP |
| STYLUS PHOTO R3000 | 1049533 | NON FIG | FLAX DISPENSER |
| #F723 | |||
| STYLUS PHOTO R3000 | 1080614 | NON FIG | GREASE G-26 (40GR)(B702600001) |
| STYLUS PHOTO R3000 | 1033657 | NON FIG | GREASE G-45 |
| STYLUS PHOTO R3000 | 1480655 | NON FIG | GREASE G-71(BLUE) |
| STYLUS PHOTO R3000 | 1409257 | NON FIG | GREASE G-74 |
| STYLUS PHOTO R3000 | 1053480 | NON FIG | I PACK,319LM |
| 06-015 #F984 | |||
| STYLUS PHOTO R3000 | 1462531 | NON FIG | I/P,DPIC009BSP,110,PRINTING |
| CH08-001 #N003 | |||
| STYLUS PHOTO R3000 | 1550876 | NON FIG | INK CART.UNBOXED,C-L1,PIG'T,099C,AS |
| STYLUS PHOTO R3000 | 1550881 | NON FIG | INK CART.UNBOXED,LBK-L1,PIG'T,099C,AS |
| STYLUS PHOTO R3000 | 1550879 | NON FIG | INK CART.UNBOXED,LC-L1,PIG'T,099C,AS |
| STYLUS PHOTO R3000 | 1550883 | NON FIG | INK CART.UNBOXED,LLBK-L1,PIG'T,099C,AS |
| STYLUS PHOTO R3000 | 1550882 | NON FIG | INK CART.UNBOXED,MBK-L1,PIG'T,099C,AS |
| STYLUS PHOTO R3000 | 1550874 | NON FIG | INK CART.UNBOXED,PBK-L1,PIG'T,099C,AS |
| STYLUS PHOTO R3000 | 1550880 | NON FIG | INK CART.UNBOXED,VLM-L1,PIG'T,099C,AS |
| STYLUS PHOTO R3000 | 1550877 | NON FIG | INK CART.UNBOXED,VM-L1,PIG'T,099C,AS |
| STYLUS PHOTO R3000 | 1550878 | NON FIG | INK CART.UNBOXED,Y-L1,PIG'T,099C,AS |
| STYLUS PHOTO R3000 | 1553098 | NON FIG | PF Roller Adjustment Jig |
| #F1067 | |||
| STYLUS PHOTO R3000 | 1553099 | NON FIG | PF Roller Adjustment Jig Stand |
| #F1068 | |||
| STYLUS PHOTO R3000 | 1276333 | NON FIG | PG ADJUSTMENT PLATE |
| STYLUS PHOTO R3000 | 4119817 | NON FIG | SETTING UP MANUAL |
| ,, | |||
| STYLUS PHOTO R3000 | 4119819 | NON FIG | SETTING UP MANUAL |
| ,, | |||
| STYLUS PHOTO R3000 | 4119821 | NON FIG | SETTING UP MANUAL |
| ,, | |||
| STYLUS PHOTO R3000 | 6104714 | NON FIG | SHIPPING CLEANING LIQUID,CR06A,18kg |
| CH08-009 #N006 | |||
| STYLUS PHOTO R3000 | 6104713 | NON FIG | SHIPPING CLEANING LIQUID,CR06A,1kg |
| CH08-0011 #N007 | |||
| STYLUS PHOTO R3000 | 3105850 | NON FIG | SOFTWARE CD,EURO-MAC |
| STYLUS PHOTO R3000 | 3106080 | NON FIG | SOFTWARE CD,EURO-WIN SDOTT |
| STYLUS PHOTO R3000 | 1294120 | NON FIG | SONIC TENSION METER U507 |
| STYLUS PHOTO R3000 | 1304994 | NON FIG | SURFACE PLATES SDOTT.COM |
| STYLUS PHOTO R3000 | 4119682 | NON FIG | USER'S GUIDE |
| STYLUS PHOTO R3000 | 4119683 | NON FIG | USER'S GUIDE |
| STYLUS PHOTO R3000 | 4119684 | NON FIG | USER'S GUIDE |
| STYLUS PHOTO R3000 | 4119685 | NON FIG | USER'S GUIDE |
| STYLUS PHOTO R3000 | 4119686 | NON FIG | USER'S GUIDE |
| STYLUS PHOTO R3000 | 4119687 | NON FIG | USER'S GUIDE |
| STYLUS PHOTO R3000 | 4119688 | NON FIG | USER'S GUIDE |
| STYLUS PHOTO R3000 | 4119689 | NON FIG | USER'S GUIDE |
| Manual Name | StylusPhoto R3000 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 3.9M |
| Pages | 6 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON StylusPhoto R3000 Series |
