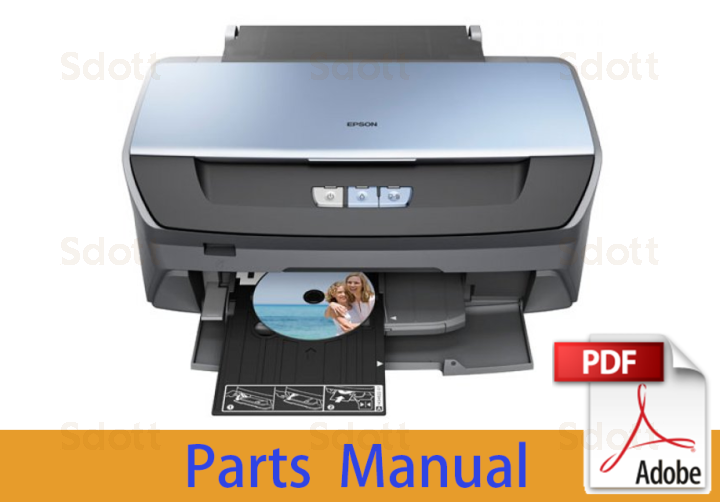

Parts Manual for EPSON StylusPhoto R260 R265 R270
In stock
SKU
EP-R270-PM
$1.20
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******
| Model | Article | Reference | Description | |
| STYLUS PHOTO R270 | 1458110 | 1 | TRAY CDR ASSY,C653,ASP | |
| STYLUS PHOTO R270 | 1446859 | 100 | HOUSING LOWER ASSY.,C653,EPPI | |
| STYLUS PHOTO R270 | 1108107 | 103 | FOOT | |
| STYLUS PHOTO R270 | 1421136 | 104 | DAMPER,STACKER | |
| STYLUS PHOTO R270 | 1409989 | 105 | SPUR GEAR,12 | |
| STYLUS PHOTO R270 | 1431474 | 106 | GUIDE,STACKER,LEFT | |
| STYLUS PHOTO R270 | 1431473 | 107 | GUIDE,STACKER,RIGHT | |
| STYLUS PHOTO R270 | 1410044 | 108 | TORSION SPRING,LEVER,CDR,GUIDE | |
| STYLUS PHOTO R270 | 1431472 | 109 | LEVER,GUIDE,CDR | |
| STYLUS PHOTO R270 | 1409986 | 110 | SHAFT,CDR | |
| STYLUS PHOTO R270 | 1438280 | 111 | STACKER SUPPORT ASSY,C653,EPPI | |
| STYLUS PHOTO R270 | 1442079 | 112 | COVER,PRINTER,B | |
| STYLUS PHOTO R270 | 1452628 | 113 | PAPER SUPPORT ASSY., C653,EPPI | |
| STYLUS PHOTO R270 | 1437200 | 114 | HOUSING,USB | |
| STYLUS PHOTO R270 | 1437186 | 115 | HOUSING,UPPER | |
| STYLUS PHOTO R270 | 1437192 | 116 | HOUSING,LEFT | |
| STYLUS PHOTO R270 | 1437190 | 117 | HOUSING,RIGHT | |
| STYLUS PHOTO R270 | 1437189 | 118 | HOUSING,MIDDLE | |
| STYLUS PHOTO R270 | 1437210 | 119 | GROUNDING PLATE,PANEL | |
| STYLUS PHOTO R270 | 1437218 | 120 | GROUNDING PLATE,M/B,LEFT | |
| STYLUS PHOTO R270 | 1437219 | 121 | GROUNDING PLATE,M/B,RIGHT | |
| STYLUS PHOTO R270 | 1437223 | 122 | GROUNDING PLATE,USB | |
| STYLUS PHOTO R270 | 1437211 | 123 | SPRING,STACKER | |
| STYLUS PHOTO R270 | 1040649 | 124 | LOCK,STACKER | |
| STYLUS PHOTO R270 | 1437201 | 125 | HOUSING,PANEL | |
| STYLUS PHOTO R270 | 1437205 | 126 | OPTICAL TUBE | |
| STYLUS PHOTO R270 | 1437202 | 127 | BUTTON,PS | |
| STYLUS PHOTO R270 | 1442085 | 128 | BUTTON,I/C,B | |
| STYLUS PHOTO R270 | 1442087 | 129 | BUTTON,PAPER LOAD,B | |
| STYLUS PHOTO R270 | 2109952 | 130 | HARNESS | |
| STYLUS PHOTO R270 | 1437209 | 131 | SHIELD PLATE,PANEL | |
| STYLUS PHOTO R270 | 1437187 | 132 | HOUSING,FRONT | |
| STYLUS PHOTO R270 | 1437196 | 133 | COVER,FRONT | |
| STYLUS PHOTO R270 | 1437199 | 134 | HOUSING,FRONT,LEFT | |
| STYLUS PHOTO R270 | 1437198 | 135 | HOUSING,FRONT,RIGHT | |
| STYLUS PHOTO R270 | 1446449 | 137 | LABEL,INSTRUCTION | |
| STYLUS PHOTO R270 | 2112130 | 200 | BOARD ASSY.,MAIN | |
| STYLUS PHOTO R270 | 2117968 | 200 | BOARD ASSY.,MAIN | |
| STYLUS PHOTO R270 | 2109868 | 201 | BOARD ASSY.,PANEL 6206A,Standard | |
| STYLUS PHOTO R270 | 2109870 | 202 | BOARD ASSY.,INTER FACE 6207A,Standard | |
| STYLUS PHOTO R270 | 1438498 | 300 | POWER SUPPLY ASSY,C653 PSE,EPPI | |
| STYLUS PHOTO R270 | 2107706 | 400 | POWER CABLE | |
| STYLUS PHOTO R270 | 2115805 | 500 | PRINTER MECHANISM,ASP MAQ11-101 | |
| STYLUS PHOTO R270 | 1458626 | 501 | PAPER GUIDE FRONT ASSY., C653,ASP | |
| STYLUS PHOTO R270 | 1456564 | 503 | POROUS PAD,PAPER GUIDE,FRONT,E | |
| STYLUS PHOTO R270 | 1457480 | 504 | FRAME EJ ASSY,C653,ASP | |
| STYLUS PHOTO R270 | 1410323 | 505 | TORSION SPRING,FRAME,EJ,LEFT | |
| STYLUS PHOTO R270 | 1410043 | 506 | TORSION SPRING,FRAME,EJ | |
| STYLUS PHOTO R270 | 1410051 | 507 | LEVER,PE | |
| STYLUS PHOTO R270 | 1447953 | 508 | TORSION SPRING,LEVER,PE | |
| STYLUS PHOTO R270 | 1438922 | 509 | MOTOR,ASSY.,PF,B | |
| STYLUS PHOTO R270 | 1438264 | 510 | DETECTOR GUIDE CDR ASSY,C653,EPPI | |
| STYLUS PHOTO R270 | 1438256 | 511 | Replace: 1465137 | |
| STYLUS PHOTO R270 | 1409948 | 512 | HOLDER,APG | |
| STYLUS PHOTO R270 | 1440650 | 513 | SPUR GEAR,28.8 | |
| STYLUS PHOTO R270 | 1416886 | 514 | COMPRESSION SPRING,2.25 | |
| STYLUS PHOTO R270 | 1409938 | 515 | SPUR GEAR,12.8 | |
| STYLUS PHOTO R270 | 1409944 | 516 | SPUR GEAR,33.6 | |
| STYLUS PHOTO R270 | 1409943 | 517 | COMPRESSION SPRING,0.97 | |
| STYLUS PHOTO R270 | 1409945 | 518 | COMBINATION GEAR,12.8,27 | |
| STYLUS PHOTO R270 | 1409946 | 519 | COMBINATION GEAR,14,22 | |
| STYLUS PHOTO R270 | 1409999 | 520 | SCALE,CR | |
| STYLUS PHOTO R270 | 2110568 | 521 | MOTOR ASSY.,CR | |
| STYLUS PHOTO R270 | 1410000 | 522 | PULLEY,DRIVEN | |
| STYLUS PHOTO R270 | 1262438 | 523 | SHAFT,PULLEY,DRIVEN | |
| STYLUS PHOTO R270 | 1292714 | 524 | HOLDER,PULLEY,DRIVEN | |
| STYLUS PHOTO R270 | 1444296 | 525 | GROUNDING WIRE,PFEJ | |
| STYLUS PHOTO R270 | 1454609 | 526 | Replace: 1454609 | |
| STYLUS PHOTO R270 | 1409580 | 527 | EXTENSION SPRING,0.8 | |
| STYLUS PHOTO R270 | 1409579 | 528 | LOCK,CR | |
| STYLUS PHOTO R270 | 1415843 | 529 | COMPRESSION SPRING,3.3 | |
| STYLUS PHOTO R270 | 1292709 | 530 | TIMING BELT,CR | |
| STYLUS PHOTO R270 | 1409935 | 531 | SHAFT,GUIDE,CR | |
| STYLUS PHOTO R270 | 1446952 | 532 | CARRIAGE ASSEMBLY,C653,ASP | |
| STYLUS PHOTO R270 | 1438269 | 533 | CABLE HEAD ASSY,C653,EPPI | |
| STYLUS PHOTO R270 | 1415811 | 534 | HOLDER,HARNESS | |
| STYLUS PHOTO R270 | 2090532 | 600 | PHOTO INTERUPTER,TLP1243(C8) | |
| STYLUS PHOTO R270 | 1438290 | 700 | TRAY, POROUS PAD ASSY,C653,EPPI | |
| STYLUS PHOTO R270 | 1262694 | 701 | SCALE,PF | |
| STYLUS PHOTO R270 | 1212722 | 702 | DOUBLE SIDED TAPE,D21 | |
| STYLUS PHOTO R270 | 2111049 | 703 | CABLE,ENCODER,PF | |
| STYLUS PHOTO R270 | 2111047 | 704 | BOARD ASSY.,ENCODER,PF,B | |
| STYLUS PHOTO R270 | 1438752 | 705 | SPUR GEAR,26.5SDOTT | |
| STYLUS PHOTO R270 | 1437206 | 706 | HOLDER,FFC | |
| STYLUS PHOTO R270 | 1447352 | 707 | ASF ASSY.,M,C653,EPPI | |
| STYLUS PHOTO R270 | 1409642 | 708 | GUIDE,ROLLER,LD | |
| STYLUS PHOTO R270 | 1295162 | 709 | TORSION SPRING,137.7 | |
| STYLUS PHOTO R270 | 1075955 | 710 | ROLLER,LD,B | |
| STYLUS PHOTO R270 | 1447353 | 711 | HOLDER ROLLER RETARD ASSY.,M,C653,EPPI | |
| STYLUS PHOTO R270 | 1409638 | 712 | COMBINATION GEAR,16.8,32.8 | |
| STYLUS PHOTO R270 | 1431490 | 713 | Replace: 1474785 | |
| STYLUS PHOTO R270 | 1279710 | 714 | SPUR GEAR,16 | |
| STYLUS PHOTO R270 | 1250632 | 715 | COMPRESSION SPRING,2.36 | |
| STYLUS PHOTO R270 | 1438398 | 716 | COVER CARTRIDGE ASSY,C653,EPPI | |
| STYLUS PHOTO R270 | F173020 | 717 | PRINT HEAD 540 | |
| STYLUS PHOTO R270 | 1438308 | 718 | CSIC ASSY,C653,EPPI | |
| STYLUS PHOTO R270 | 1440983 | 719 | COLOR,BLOCK,B | |
| STYLUS PHOTO R270 | 1431478 | 720 | HINGE,COVER,CARTRIDGE | |
| STYLUS PHOTO R270 | 1431483 | 721 | COVER,CABLE,HEAD,INNER | |
| STYLUS PHOTO R270 | 1431482 | 722 | COVER,CABLE,HEAD | |
| STYLUS PHOTO R270 | 1437220 | 723 | FRAME,M/B | |
| STYLUS PHOTO R270 | 1437215 | 724 | GROUNDING PLATE,FRAME,M/B | |
| STYLUS PHOTO R270 | 1410023 | 725 | POROUS PAD,HOUSING,LOWER | |
| STYLUS PHOTO R270 | 1409587 | 726 | POROUS PAD INK,EJ,CAP,LOWER | |
| STYLUS PHOTO R270 | 1455324 | NON FIG | GREASE G-77 (50CC) 06-013(#F982) | |
| STYLUS PHOTO R270 | 1053480 | NON FIG | I PACK,319LM | |
| STYLUS PHOTO R270 | 1443530 | NON FIG | INK CART.UNBOXED,BK-SS,DYE,H62F,EC,AS | |
| STYLUS PHOTO R270 | 1443531 | NON FIG | INK CART.UNBOXED,C-SS,DYE,H62F,EC,AS | |
| STYLUS PHOTO R270 | 1443534 | NON FIG | INK CART.UNBOXED,LC-SS,DYE,H62F,EC,AS | |
| STYLUS PHOTO R270 | 1443535 | NON FIG | INK CART.UNBOXED,LM-SS,DYE,H62F,EC,AS | |
| STYLUS PHOTO R270 | 1443532 | NON FIG | INK CART.UNBOXED,M-SS,DYE,H62F,EC,AS | |
| STYLUS PHOTO R270 | 1443533 | NON FIG | INK CART.UNBOXED,Y-SS,DYE,H62F,EC,AS | |
| STYLUS PHOTO R270 | 1453980 | NON FIG | PFP BASE SCALE | |
| STYLUS PHOTO R270 | 4106230 | NON FIG | SETTING UP MANUAL ,,STYLUS PHOTO R265 Start Here | |
| STYLUS PHOTO R270 | 3101663 | NON FIG | SOFTWARE CD,E/F/I/G/S/P/D | |
| STYLUS PHOTO R270 | 6022802 | NON FIG | Special Repair Liquid,1,1kg | |
| Manual Name | StylusPhoto R260 R265 R270 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 1.3M |
| Pages | 10 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON StylusPhoto R260 R265 R270 Series |
