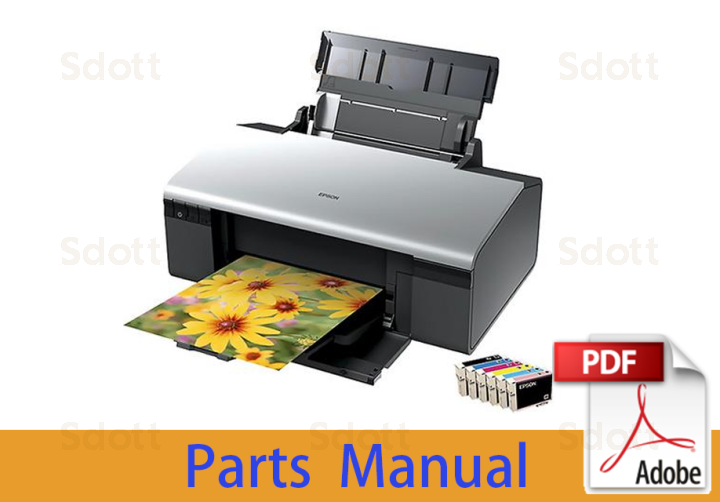

Parts Manual for EPSON StylusPhoto R280 R285 R290
In stock
SKU
EP-R290-PM
$1.20
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******
| Model | Article | Reference | Description |
| STYLUS PHOTO R285 | 1473134 | 1 | TRAY CDR ASSY,C691,ASP,EPPI |
| STYLUS PHOTO R285 | 1478425 | 100 | HOUSING LOWER ASSY.ASP,C691,EPPI |
| STYLUS PHOTO R285 | 1108107 | 103 | FOOT |
| STYLUS PHOTO R285 | 1463694 | 106 | GUIDE,STACKER,LEFT |
| STYLUS PHOTO R285 | 1463725 | 107 | GUIDE,STACKER,RIGHT |
| STYLUS PHOTO R285 | 1465134 | 111 | STACKER SUPPORT ASSY,C691,EPPI |
| STYLUS PHOTO R285 | 1464415 | 112 | COVER,PRINTER,B |
| STYLUS PHOTO R285 | 1465135 | 113 | PAPER SUPPORT ASSY,C691,EPPI |
| STYLUS PHOTO R285 | 1469266 | 114 | COVER,CASE |
| STYLUS PHOTO R285 | 1463527 | 115 | HOUSING,UPPER |
| STYLUS PHOTO R285 | 2116505 | 126 | HARNESS MAIN-PNL |
| STYLUS PHOTO R285 | 2116685 | 127 | HARNESS,DETECTOR,CASE,OPEN , |
| STYLUS PHOTO R285 | 1463534 | 128 | HOLDER,OPEN,SENSOR |
| STYLUS PHOTO R285 | 1463537 | 129 | BUTTON,INK |
| STYLUS PHOTO R285 | 1463533 | 130 | COVER,INK,TUBE |
| STYLUS PHOTO R285 | 1463538 | 131 | BUTTON,PAPER |
| STYLUS PHOTO R285 | 1463539 | 132 | LENS |
| STYLUS PHOTO R285 | 1465608 | 133 | COVER STACKER ASSY,C691,EPPI |
| STYLUS PHOTO R285 | 1463536 | 134 | BUTTON,PS |
| STYLUS PHOTO R285 | 1463528 | 135 | HOUSING,FRONT |
| STYLUS PHOTO R285 | 1473898 | 137 | LABEL,INSTRUCTION |
| STYLUS PHOTO R285 | 1448952 | 138 | LABEL,ACCESSORY,B |
| STYLUS PHOTO R285 | 1474303 | 139 | LABEL,CDR |
| STYLUS PHOTO R285 | 2116025 | 200 | BOARD ASSY.,MAIN 6292A,STANDARD |
| STYLUS PHOTO R285 | 2116495 | 201 | BOARD ASSY.,PANEL |
| STYLUS PHOTO R285 | 1465151 | 300 | POWER SUPPLY ASSY,C691,PSE,EPPI |
| STYLUS PHOTO R285 | 2107708 | 400 | POWER CABLE |
| STYLUS PHOTO R285 | 2118734 | 500 | PRINTER MECHANISM,ASP |
| STYLUS PHOTO R285 | 1473044 | 501 | Replace: 1487928 |
| STYLUS PHOTO R285 | 1487928 | 501 | PAPER GUIDE FRONT ASSY,C691,ASP,EPPI |
| STYLUS PHOTO R285 | 1463787 | 503 | POROUS PAD,PAPER GUIDE,FRONT |
| STYLUS PHOTO R285 | 1473045 | 504 | Replace: 1560326 |
| STYLUS PHOTO R285 | 1560326 | 504 | FRAME EJ ASSY,C691,ASP,EPPI |
| STYLUS PHOTO R285 | 1410323 | 505 | TORSION SPRING,FRAME,EJ,LEFT |
| STYLUS PHOTO R285 | 1410043 | 506 | TORSION SPRING,FRAME,EJ |
| STYLUS PHOTO R285 | 1410051 | 507 | LEVER,PE |
| STYLUS PHOTO R285 | 1447953 | 508 | TORSION SPRING,LEVER,PE |
| STYLUS PHOTO R285 | 2116694 | 509 | MOTOR ASSY.,PF , |
| STYLUS PHOTO R285 | 1465137 | 511 | PAPER GUIDE UPPER ASSY,C691,EPPI |
| STYLUS PHOTO R285 | 1409948 | 512 | HOLDER,APG |
| STYLUS PHOTO R285 | 1465029 | 513 | SPUR GEAR,28.8 |
| STYLUS PHOTO R285 | 1416886 | 514 | COMPRESSION SPRING,2.25 |
| STYLUS PHOTO R285 | 1409938 | 515 | SPUR GEAR,12.8 |
| STYLUS PHOTO R285 | 1468745 | 516 | SPUR GEAR,33.6,B |
| STYLUS PHOTO R285 | 1409943 | 517 | COMPRESSION SPRING,0.97 |
| STYLUS PHOTO R285 | 1409945 | 518 | COMBINATION GEAR,12.8,27 |
| STYLUS PHOTO R285 | 1409946 | 519 | COMBINATION GEAR,14,22 |
| STYLUS PHOTO R285 | 1409999 | 520 | SCALE,CR |
| STYLUS PHOTO R285 | 2116693 | 521 | MOTOR ASSY.,CR |
| STYLUS PHOTO R285 | 1467981 | 522 | PULLEY,DRIVEN,B |
| STYLUS PHOTO R285 | 1262438 | 523 | SHAFT,PULLEY,DRIVEN |
| STYLUS PHOTO R285 | 1292714 | 524 | HOLDER,PULLEY,DRIVEN |
| STYLUS PHOTO R285 | 1444296 | 525 | GROUNDING WIRE,PFEJ |
| STYLUS PHOTO R285 | 1473046 | 526 | INK SYSTEM ASSY,C691,ASP,EPPI |
| STYLUS PHOTO R285 | 1409580 | 527 | EXTENSION SPRING,0.8 |
| STYLUS PHOTO R285 | 1467970 | 528 | LOCK,CR,C |
| STYLUS PHOTO R285 | 1476025 | 529 | COMPRESSION SPRING,CAM,100 |
| STYLUS PHOTO R285 | 1292709 | 530 | TIMING BELT,CR |
| STYLUS PHOTO R285 | 1409935 | 531 | SHAFT,GUIDE,CR |
| STYLUS PHOTO R285 | 1473047 | 532 | CARRIAGE ASSY,C691,ASP,EPPI |
| STYLUS PHOTO R285 | 1466288 | 533 | CABLE HEAD ASSY,C691,EPPI |
| STYLUS PHOTO R285 | 2116689 | 534 | HARNESS,DETECTOR,GUIDE,CDR |
| STYLUS PHOTO R285 | 2020393 | 536 | DETECTOR,LEAF,B2 |
| STYLUS PHOTO R285 | 2090717 | 537 | LEAF SENSOR |
| STYLUS PHOTO R285 | 2090532 | 600 | PHOTO INTERUPTER,TLP1243(C8) |
| STYLUS PHOTO R285 | 1469197 | 700 | TRAY,POROUS PAD,ASSY.,B |
| STYLUS PHOTO R285 | 1262694 | 701 | SCALE,PF |
| STYLUS PHOTO R285 | 1212722 | 702 | DOUBLE SIDED TAPE,D21 |
| STYLUS PHOTO R285 | 2116697 | 703 | CABLE,ENCODER,PF |
| STYLUS PHOTO R285 | 2116736 | 704 | BOARD ASSY.,ENCODER,PF |
| STYLUS PHOTO R285 | 1438752 | 705 | SPUR GEAR,26.5 |
| STYLUS PHOTO R285 | 1465131 | 707 | ASF ASSY,C691,EPPI |
| STYLUS PHOTO R285 | 1473588 | 708 | GUIDE,ROLLER,LD |
| STYLUS PHOTO R285 | 1295162 | 709 | TORSION SPRING,137.7 |
| STYLUS PHOTO R285 | 1075955 | 710 | ROLLER,LD,B |
| STYLUS PHOTO R285 | 1447353 | 711 | HOLDER ROLLER RETARD ASSY.,M,C653,EPPI |
| STYLUS PHOTO R285 | 1409638 | 712 | COMBINATION GEAR,16.8,32.8 |
| STYLUS PHOTO R285 | 1431490 | 713 | Replace: 1474785 |
| STYLUS PHOTO R285 | 1467962 | 714 | SPUR,GEAR,16,B |
| STYLUS PHOTO R285 | 1250632 | 715 | COMPRESSION SPRING,2.36 SDOTT.COM |
| STYLUS PHOTO R285 | 1465612 | 716 | COVER CARTRIDGE ASSY,C691,EPPI |
| STYLUS PHOTO R285 | F180000 | 717 | PRINT HEAD |
| STYLUS PHOTO R285 | 1465147 | 718 | CSIC ASSY,C691,EPPI |
| STYLUS PHOTO R285 | 1440983 | 719 | COLOR,BLOCK,B |
| STYLUS PHOTO R285 | 1431478 | 720 | HINGE,COVER,CARTRIDGE |
| STYLUS PHOTO R285 | 1431483 | 721 | COVER,CABLE,HEAD,INNER |
| STYLUS PHOTO R285 | 1431482 | 722 | COVER,CABLE,HEAD |
| STYLUS PHOTO R285 | 1410023 | 725 | POROUS PAD,HOUSING,LOWER |
| STYLUS PHOTO R285 | 1474317 | 726 | POROUS PAD,INK EJ,CAP,LOWER |
| STYLUS PHOTO R285 | 1443530 | NON FIG | INK CART.UNBOXED,BK-SS,DYE,H62F,EC,AS |
| STYLUS PHOTO R285 | 1443531 | NON FIG | INK CART.UNBOXED,C-SS,DYE,H62F,EC,AS |
| STYLUS PHOTO R285 | 1443534 | NON FIG | INK CART.UNBOXED,LC-SS,DYE,H62F,EC,AS |
| STYLUS PHOTO R285 | 1443535 | NON FIG | INK CART.UNBOXED,LM-SS,DYE,H62F,EC,AS |
| STYLUS PHOTO R285 | 1443532 | NON FIG | INK CART.UNBOXED,M-SS,DYE,H62F,EC,AS |
| STYLUS PHOTO R285 | 1443533 | NON FIG | INK CART.UNBOXED,Y-SS,DYE,H62F,EC,AS |
| STYLUS PHOTO R285 | 4110292 | NON FIG | SETTING UP MANUAL |
| STYLUS PHOTO R285 | 3102544 | NON FIG | SOFTWARE CD,E/F/I/G/S/P/D |
| Manual Name | StylusPhoto R280 R285 R290 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 1.0M |
| Pages | 9 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON StylusPhoto R280 R285 R290 Series |
