Parts Manual for EPSON SureColor F3000 F3030 F3050 F3060 F3070
In stock
SKU
EP-F3000-PM
$1.10
- Email with download link immediately
- Files without viruses
- PDF format service manual
- Allow high-definition printing

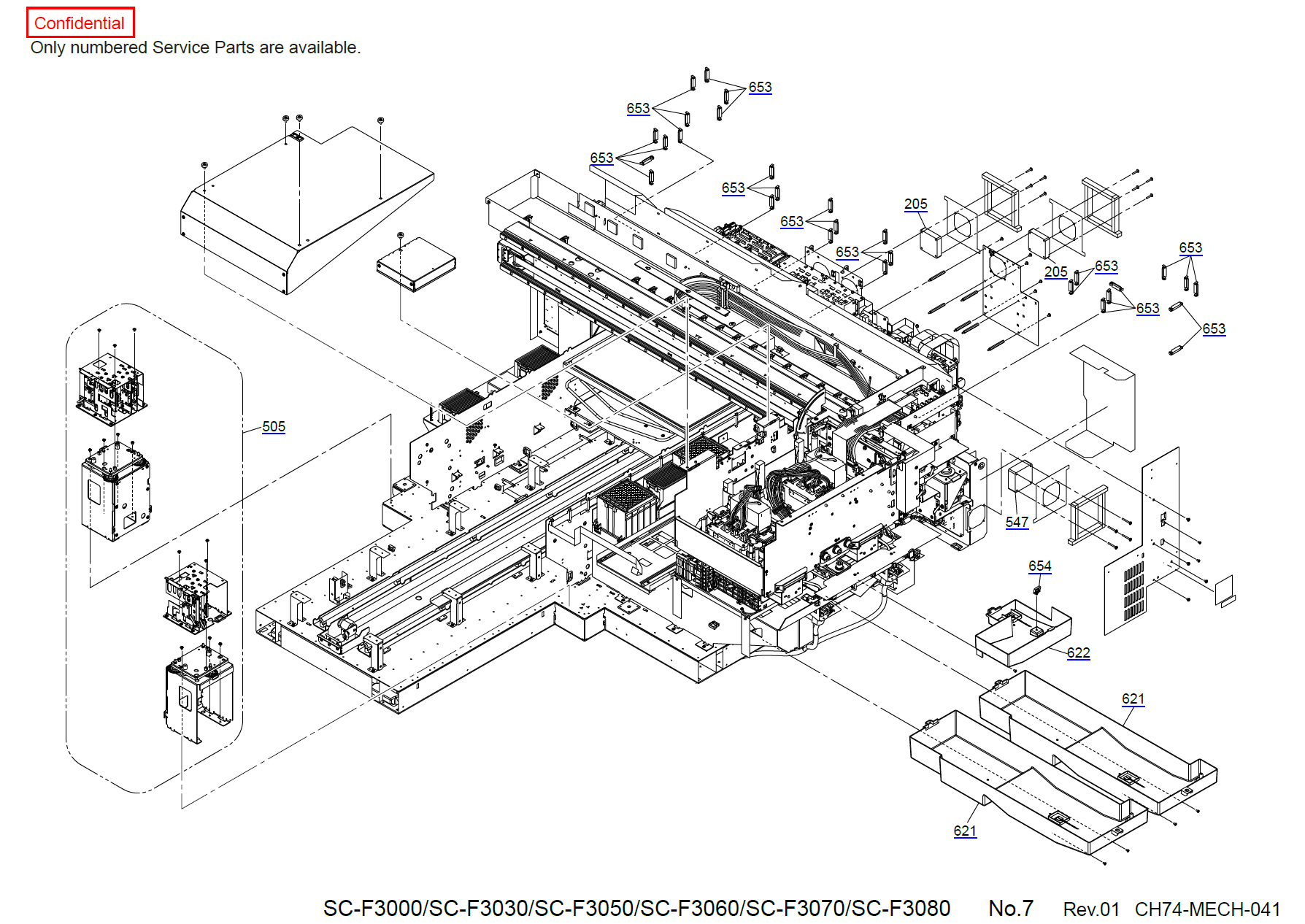

Parts Manual for EPSON SureColor F3000 F3030 F3050 F3060 F3070
****** The following content is not included in the PDF manual ******
| SURECOLOR SC-F3000 | 1822536 | 112 | LABEL,MODEL NAME | |
| SURECOLOR SC-F3000 | 1709780 | 113 | LABEL,WARNING,CHILD GUARD | |
| SURECOLOR SC-F3000 | 1822338 | 114 | COVER,PRINTER,FRONT,RIGHT | |
| SURECOLOR SC-F3000 | 1820867 | 115 | LABEL,PRECISIONCORE,D | |
| SURECOLOR SC-F3000 | 1857187 | 115 | LABEL,PRECISIONCORE,D | |
| SURECOLOR SC-F3000 | 1822339 | 116 | COVER,PRINTER,FRONT,LEFT | |
| SURECOLOR SC-F3000 | 1822341 | 117 | LEVER,COVER,PRINTER | |
| SURECOLOR SC-F3000 | 2205179 | 200 | BOARD ASSY.,MAIN | |
| SURECOLOR SC-F3000 | 2205600 | 201 | HARNESS,P/S,INLET,H1 | |
| SURECOLOR SC-F3000 | 2205176 | 204 | BOARD ASSY.,MAIN | |
| SURECOLOR SC-F3000 | 2209121 | 206 | BOARD ASSY.,SUB | |
| SURECOLOR SC-F3000 | 2213480 | 206 | BOARD ASSY.,SUB | |
| SURECOLOR SC-F3000 | 2207336 | 229 | HARNESS,ENCODER,MOTOR,CR | |
| SURECOLOR SC-F3000 | 2207338 | 230 | HARNESS,DETECTOR,APG | |
| SURECOLOR SC-F3000 | 2207340 | 231 | HARNESS,DETECTOR,CR,B | |
| SURECOLOR SC-F3000 | 2200022 | 248 | FAN, COOLING,HDD | |
| SURECOLOR SC-F3000 | 2205583 | 250 | HARNESS,RELAY,MIST FAN,H133 | |
| SURECOLOR SC-F3000 | 2205181 | 251 | BOARD ASSY.,SUB | |
| SURECOLOR SC-F3000 | 2205190 | 252 | BOARD ASSY.,DRV | |
| SURECOLOR SC-F3000 | 2213647 | 252 | BOARD ASSY.,DRV | |
| SURECOLOR SC-F3000 | 2205209 | 253 | BOARD ASSY.,SUB | |
| SURECOLOR SC-F3000 | 2205575 | 254 | HARNESS,SENSOR,ASSY1 | |
| SURECOLOR SC-F3000 | 2206105 | 255 | MOTOR ASSY.,TF | |
| SURECOLOR SC-F3000 | 2207339 | 256 | HARNESS,DETECTOR,CR | |
| SURECOLOR SC-F3000 | 2207341 | 257 | HARNESS,DETECTOR,TF | |
| SURECOLOR SC-F3000 | 2207342 | 258 | HARNESS,DETECTOR,TF,B | |
| SURECOLOR SC-F3000 | 2207343 | 259 | HARNESS,DETECTOR,TF,C | |
| SURECOLOR SC-F3000 | 2207344 | 260 | HARNESS,DETECTOR,TF,D | |
| SURECOLOR SC-F3000 | 2207345 | 261 | HARNESS,DETECTOR,TF,E | |
| SURECOLOR SC-F3000 | 2207346 | 262 | HARNESS,DETECTOR,TF,F | |
| SURECOLOR SC-F3000 | 2207347 | 263 | FFC,ENCODER,TF | |
| SURECOLOR SC-F3000 | 2207370 | 264 | FFC,ENCODER,CR | |
| SURECOLOR SC-F3000 | 2208338 | 267 | BOARD ASSY.,SUB | |
| SURECOLOR SC-F3000 | 2205198 | 294 | BOARD ASSY.,DRV | |
| SURECOLOR SC-F3000 | 2205623 | 295 | HARNESS,MAIN,DRV-H,FFC,F5 | |
| SURECOLOR SC-F3000 | 2205620 | 297 | HARNESS,MAIN,DRV-H,FFC,F2-F4 | |
| SURECOLOR SC-F3000 | 2205619 | 298 | HARNESS,MAINW,SUB-K,FFC,F19 | |
| SURECOLOR SC-F3000 | 2205193 | 299 | BOARD ASSY.,DRV | |
| SURECOLOR SC-F3000 | 2213648 | 299 | BOARD ASSY.,DRV | |
| SURECOLOR SC-F3000 | 2207167 | 300 | BOARD ASSY.,POWER SUPPLY | |
| SURECOLOR SC-F3000 | 1495048 | 501 | LOCKING WIRE,SADDLE,LWS-5S-2W | |
| SURECOLOR SC-F3000 | 1528969 | 502 | ONE TOUCH BUSH,NB-11 | |
| SURECOLOR SC-F3000 | 1592577 | 503 | GROUNDING PLATE,TF | |
| SURECOLOR SC-F3000 | 1606477 | 504 | EDGE SADDLE,WES-1210 | |
| SURECOLOR SC-F3000 | 2208679 | 507 | BOARD ASSY.,ENCODER | |
| SURECOLOR SC-F3000 | 1737316 | 516 | HOOK,FRAME,TRAY | |
| SURECOLOR SC-F3000 | 1735293 | 517 | HOLDER,TUBE | |
| SURECOLOR SC-F3000 | 1820869 | 518 | HOLDER,DETECTOR,TF | |
| SURECOLOR SC-F3000 | 1821706 | 519 | BUSHING,SHAFT,FASTEN,ADJUSTING PLATE | |
| SURECOLOR SC-F3000 | 1823139 | 527 | FRAME ASSY.,TRAY,LOWER | |
| SURECOLOR SC-F3000 | 1823199 | 528 | GUIDE,FRONT,B | |
| SURECOLOR SC-F3000 | 1824877 | 529 | PULLEY ASSY.,DRIVEN,TF | |
| SURECOLOR SC-F3000 | 2143732 | 532 | BOARD ASSY.,SUB | |
| SURECOLOR SC-F3000 | 2176012 | 533 | SENSOR,TEMPERATURE,HUMIDITY,HSHCAA106F | |
| SURECOLOR SC-F3000 | 2199866 | 535 | BOARD ASSY.,SUB | |
| SURECOLOR SC-F3000 | 1480490 | 539 | BEARING,FLW686ZZ | |
| SURECOLOR SC-F3000 | 1480492 | 540 | POLY SLIDER,STW-FT60,T=0.25 | |
| SURECOLOR SC-F3000 | 2202153 | 544 | MOTOR ASSY,CR | |
| SURECOLOR SC-F3000 | 1823140 | 545 | FRAME,STOPPER,TF | |
| SURECOLOR SC-F3000 | 2150699 | 546 | LEAF SENSOR,P599 | |
| SURECOLOR SC-F3000 | 2202344 | 547 | FAN ASSY.,KOH | |
| SURECOLOR SC-F3000 | 2203663 | 548 | BOARD ASSY.,SUB | |
| SURECOLOR SC-F3000 | 1657495 | 550 | TIMING BELT,PF | |
| SURECOLOR SC-F3000 | 2143464 | 551 | PHOTO INTERRUPTER | |
| SURECOLOR SC-F3000 | 1818075 | 552 | LEVER CLAMP,LEM-6-20-BK | |
| SURECOLOR SC-F3000 | 1818482 | 555 | LEVER,PG,CHANGE | |
| SURECOLOR SC-F3000 | 2205200 | 559 | BOARD ASSY.,SUB | |
| SURECOLOR SC-F3000 | 2205203 | 560 | BOARD ASSY.,SUB | |
| SURECOLOR SC-F3000 | 2205206 | 561 | BOARD ASSY.,SUB | |
| SURECOLOR SC-F3000 | 2205212 | 562 | BOARD ASSY.,SUB | |
| SURECOLOR SC-F3000 | 1658898 | 571 | CLAMP,TUBE,D5.9 | |
| SURECOLOR SC-F3000 | 1818475 | 573 | TIMING BELT,CR | |
| SURECOLOR SC-F3000 | 1818476 | 574 | TIMING BELT,MOTOR,CR | |
| SURECOLOR SC-F3000 | 1835049 | 575 | POROUS PAD, SUPPLY HOLE,IEI | |
| SURECOLOR SC-F3000 | 1820542 | 576 | CLUMP,TUBE,B | |
| SURECOLOR SC-F3000 | 1820872 | 577 | STAND ASSY. | |
| SURECOLOR SC-F3000 | 1820927 | 578 | BOLT ASSY.,STAND | |
| SURECOLOR SC-F3000 | 1262694 | 579 | SCALE,PF | |
| SURECOLOR SC-F3000 | 1823052 | 580 | GUIDE,REAR | |
| SURECOLOR SC-F3000 | 1560667 | 582 | FLAT CLAMP,FCR-60 V0 | |
| SURECOLOR SC-F3000 | 2192188 | 583 | MEMORY CARD | |
| SURECOLOR SC-F3000 | 1821434 | 584 | GROUNDING PLATE,HEAD,B | |
| SURECOLOR SC-F3000 | 1821433 | 585 | GROUNDING PLATE,DRIVE,CR | |
| SURECOLOR SC-F3000 | 1837873 | 587 | TRAY UNIT 14X16.,CH74,IEI | |
| SURECOLOR SC-F3000 | 1820541 | 588 | CLUMP,TUBE | |
| SURECOLOR SC-F3000 | 1852811 | 588 | CLUMP,TUBE | |
| SURECOLOR SC-F3000 | 1828381 | 589 | HOLDER SUPPLY CONNECT ASSY.,CH74,IEI | |
| SURECOLOR SC-F3000 | 1654818 | 593 | CASER,6043STNO | |
| SURECOLOR SC-F3000 | 1654819 | 594 | CASER,6043STYS | |
| SURECOLOR SC-F3000 | 2206104 | 595 | MOTOR ASSY.,APG | |
| SURECOLOR SC-F3000 | 1816994 | 596 | HOLDER,INK DUCT,MAIN BODY.,ASSY.,CH74 | |
| SURECOLOR SC-F3000 | 1821604 | 597 | HOLDER,MIST,FAN | |
| SURECOLOR SC-F3000 | 1821642 | 598 | PULLEY ASSY.,DRIVE,CR | |
| SURECOLOR SC-F3000 | 1821711 | 599 | HANDLE,COVER,FRONT,LEFT | |
| SURECOLOR SC-F3000 | 1821713 | 600 | LEVER,LOCK,COVER,MAINTENANCE | |
| SURECOLOR SC-F3000 | 1822098 | 601 | CONNECT UNIT,MAIN SIDE,CH74,IPO | |
| SURECOLOR SC-F3000 | 1822095 | 602 | DUCT PUMP,UNIT,4,CH74,IPO | |
| SURECOLOR SC-F3000 | 1822096 | 603 | DUCT PUMP,UNIT,6,CH74,IPO | |
| SURECOLOR SC-F3000 | 1822097 | 604 | CONNECT UNIT,RIPS SIDE,CH74,IPO | |
| SURECOLOR SC-F3000 | 1822099 | 605 | CIRCULATION PUMP,ASSY,CH74,IPO | |
| SURECOLOR SC-F3000 | 1865756 | 605 | CIRCULATION PUMP,ASSY,CH74,IPO | |
| SURECOLOR SC-F3000 | 1842317 | 606 | DUCT,SUPPLY,TUBE,ASSY.,ASP | |
| SURECOLOR SC-F3000 | 1842318 | 607 | DUCT,ONCR,ASSY.,ASP | |
| SURECOLOR SC-F3000 | 1822102 | 608 | ONCR,ASSY,WHITE,CH74,IPO | |
| SURECOLOR SC-F3000 | 1864491 | 608 | ONCR,ASSY,WHITE,CH74,IPO | |
| SURECOLOR SC-F3000 | 1822103 | 609 | ONCR,ASSY,COLOR,CH74,IPO | |
| SURECOLOR SC-F3000 | 1864492 | 609 | ONCR,ASSY,COLOR,CH74,IPO | |
| SURECOLOR SC-F3000 | 1822104 | 610 | PRESSURE PUMP,UNIT,CH74,IPO | |
| SURECOLOR SC-F3000 | 1822105 | 611 | PUMP CAP,ASSY,CH74,IPO | |
| SURECOLOR SC-F3000 | 1860905 | 611 | PUMP CAP,ASSY,CH74,IPO | |
| SURECOLOR SC-F3000 | 1822106 | 612 | WATER SELECTOR,UNIT,CH74,IPO | |
| SURECOLOR SC-F3000 | 1822107 | 613 | KEEP CAP,ASSY,CH74,IPO | |
| SURECOLOR SC-F3000 | 1822108 | 614 | CLOTH WIPER,CASSETTE,ASSY,CH74,IPO | |
| SURECOLOR SC-F3000 | 1822109 | 615 | CLOTH WIPER CARRIAGE,UNIT,CH74,IPO | |
| SURECOLOR SC-F3000 | 1822179 | 616 | SCALE,CR | |
| SURECOLOR SC-F3000 | 1822815 | 617 | CLAMP,RHL-28E-V0 | |
| SURECOLOR SC-F3000 | 1822939 | 618 | CLAMP,FCS-50P | |
| SURECOLOR SC-F3000 | 1847207 | 620 | FRAME ADJUST TRAY ASSY.,CH74,ASP | |
| SURECOLOR SC-F3000 | 1832727 | 621 | TRAY INK ASSY.,CH74,IEI | |
| SURECOLOR SC-F3000 | 1832728 | 622 | TRAY INK B ASSY.,CH74,IEI | |
| SURECOLOR SC-F3000 | 1817445 | 623 | CIRCULATION,PUMP ASSY,CH24,ESL,ASP | |
| SURECOLOR SC-F3000 | 1863522 | 623 | CIRCULATION,PUMP ASSY,CH24,ESL,ASP | |
| SURECOLOR SC-F3000 | 1832719 | 626 | HOUSING TR UPPER ASSY.,CH74,IEI | |
| SURECOLOR SC-F3000 | 1832720 | 627 | HOUSING TR LOWER ASSY.,CH74,IEI | |
| SURECOLOR SC-F3000 | 1822714 | 628 | CAP,KEEP,ASSY,CH74,IPO | |
| SURECOLOR SC-F3000 | 1842316 | 629 | TUBE ASSY.,CR,RELAY,A,KIT.,ASP | |
| SURECOLOR SC-F3000 | 1608679 | 634 | BOARD ASSY.,ENCODER,CR | |
| SURECOLOR SC-F3000 | 1847206 | 635 | PANEL ASSY.,CH74,ASP | |
| SURECOLOR SC-F3000 | 2203867 | 636 | FAN,COOLING,06025SS-24Q-AL-DE | |
| SURECOLOR SC-F3000 | 2203868 | 637 | FAN,COOLING,08025SS-24Q-AL-D5 | |
| SURECOLOR SC-F3000 | 1606478 | 651 | EDGE SADDLE,WES-1117 | |
| SURECOLOR SC-F3000 | 1606483 | 652 | WIRE SADDLE,LWSM-0306 | |
| SURECOLOR SC-F3000 | 1614411 | 653 | FFC CLAMP,FC-30 | |
| SURECOLOR SC-F3000 | 1614480 | 654 | WIRE SADDLE,LWSR-0511 | |
| SURECOLOR SC-F3000 | 1697507 | 656 | LOCKING EDGE SADDLE,LES-0912 | |
| SURECOLOR SC-F3000 | 1664840 | 660 | ROCKING WIRE SADDLE,LWSR-2218 | |
| SURECOLOR SC-F3000 | 1689384 | 661 | SQUARE BUSH,SB-2718 | |
| SURECOLOR SC-F3000 | 1700252 | 662 | LOCKING WIRE SADDLE,LWSR-1316 | |
| SURECOLOR SC-F3000 | 1824527 | 800 | RIPS UNIT WW,CH74,IPO | |
| SURECOLOR SC-F3000 | 1865758 | 800 | RIPS UNIT WW,CH74,IPO | |
| Manual Name | Parts Manual for EPSON SureColor F3000 F3030 F3050 F3060 F3070 |
|---|---|
| Format | |
| PDF Archive | 8.21 MB |
| Pages | 15 |
| Version | 2 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON SureColor F3000 F3030 F3050 F3060 F3070 Series |
