EPSON SureColor P900 P903 P904 P906 Parts Manual

In stock
SKU
EP-P900-PM
$1.20
  • Email with download link immediately
  • Files without viruses
  • PDF format service manual
  • Allow high-definition printing
Links
$1.20
More Information
Manual Name EPSON SureColor P900 P903 P904 P906 Parts Manual
Format PDF
PDF Archive 10.2M
Pages 4
Version Rev.03
Brand EPSON
Type SERVICE or PARTS MANUAL
Compatible Model EPSON Surecolor P900 P903 P904 P906

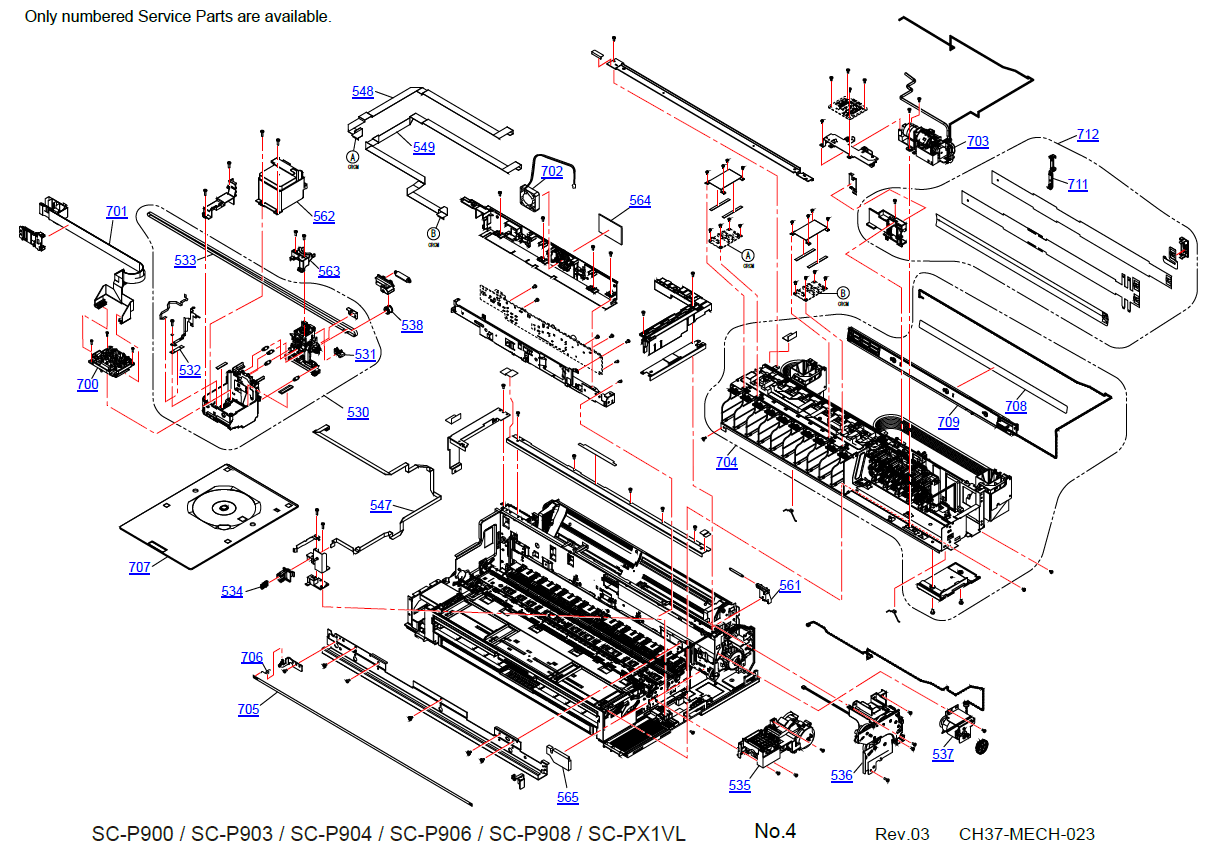

EPSON SureColor P900 P903 P904 P906 Parts Manual

****** The following content is not included in the PDF manual, please use it online ******



SURECOLOR SC-P9001841384101COVER,PRINTER,ASSY,CH37,ASP
SURECOLOR SC-P9001854036102HOUSING UPPER UNIT,B,IEI,CH37,ASP
SURECOLOR SC-P9001806804103BAND,COVER,PRINTER
SURECOLOR SC-P9001841412104HOLDER,DAMPER,LEFT,ASSY,ASP
SURECOLOR SC-P9001835335105PAPER SUPPORT ASSY,IEI,CH37
SURECOLOR SC-P9001837668106HOLDER,DAMPER.RIGHT,ASSY,IEI.,ASP
SURECOLOR SC-P9001694151108DAMPER,00ZB
SURECOLOR SC-P9001841386109COVER,REAR,ASSY,CH37,ASP
SURECOLOR SC-P9001835779111PANEL UNIT,IEI,CH38,ASP
SURECOLOR SC-P9002204128112HARNESS
SURECOLOR SC-P9001841410113HOUSING,SIDE,RIGHT ASSY,IEI,CH37,ASP
SURECOLOR SC-P9001806790114COVER,MTB
SURECOLOR SC-P9001837241115COVER,STACKER ASSY,B,IEI,CH37
SURECOLOR SC-P9001806800116HOUSING,SIDE,FRONT
SURECOLOR SC-P9001806781117HOUSING,SIDE,LEFT
SURECOLOR SC-P9001806775118COVER,REAR,LEFT
SURECOLOR SC-P9001820467120LABEL,INK,POSITION
SURECOLOR SC-P9001806778121COVER,REAR,LOWER
SURECOLOR SC-P9001836833122PORUSPAD,HOUSING,SIDE,RIGHT
SURECOLOR SC-P9001841387200MAIN BOARD ASSY,CH37,ASP
SURECOLOR SC-P9001835782300POWER SUPPLY ASSY,B,IEI,CH38,ASP
SURECOLOR SC-P9001827465350HI-VOL UNIT,IEI, CH38
SURECOLOR SC-P9002207227351WIRELESS LAN USB MODULE
SURECOLOR SC-P9002185664352CR CONTACT MODULE
SURECOLOR SC-P9002203694353BOARD ASSY.,SUB
SURECOLOR SC-P9002204295354CABLE,IS,SUB,B
SURECOLOR SC-P9001871099501ASF & HOPPER UNIT,IEI,CH37,D,ASP
SURECOLOR SC-P9001841402502HOLDER,ROTARY ENCODER,AP,ASSY,ASP
SURECOLOR SC-P9001841392503HOUSING LOWER UNIT,IEI, CH37,ASP
SURECOLOR SC-P9002020393504DETECTOR,LEAF,B2
SURECOLOR SC-P9002150699505LEAF SENSOR,P599
SURECOLOR SC-P9002176802506BOARD ASSY.,SNS
SURECOLOR SC-P9001807769507POROUS PAD,IS,LOWER,B
SURECOLOR SC-P9001841425508HOLDER,POROUS PAD,PGL,ASSY,ASP
SURECOLOR SC-P9001841390509STACKER,ASSY,IEI,CH37,ASP
SURECOLOR SC-P9002204979511MOTOR,ASSY.,CR
SURECOLOR SC-P9001841403512SHAFT,RELEASE,ASSY,IEI.ASP
SURECOLOR SC-P9001841407513HOLDER LEVER PE,ASSY,IEI,ASP
SURECOLOR SC-P9001806798514FOOT
SURECOLOR SC-P9001723095515EXTENSION SPRING,0.82,TRANSMISSION
SURECOLOR SC-P9001841415516TRAY,FRONT,ASSY,ASP
SURECOLOR SC-P9001841419517HOLDER,STAR WHEEL,ASSY,ASP
SURECOLOR SC-P9002204978518MOTOR,ASSY.,PF
SURECOLOR SC-P9001841409519ROLLER,ASSY.,EJ,REAR,ASSY,ASP
SURECOLOR SC-P9001841408522ROLLER,ASSY.,EJ,FRONT,ASP
SURECOLOR SC-P9001841404523ROLLER,PF,ASSY,IEI.,ASP
SURECOLOR SC-P9001806754524TIMING BELT,PF
SURECOLOR SC-P9002147998525BOARD ASSY.,SUB
SURECOLOR SC-P9001806751526SCALE,PF
SURECOLOR SC-P9001841406527PAPER GUIDE,UPPER,SUPPORT,ASSY,IEI.,ASP
SURECOLOR SC-P9001827259528TRAY ASIST ASSY,IEI,CH37
SURECOLOR SC-P9002204141529HARNESS
SURECOLOR SC-P9001859521530CARRIAGE ASSY,C,IEI,CH37,ASP
SURECOLOR SC-P9002143464531PHOTO INTERRUPTER
SURECOLOR SC-P9002203700532BOARD ASSY.,SENSOR
SURECOLOR SC-P9001806945533BELT,CR
SURECOLOR SC-P9002197925534CONECTOR,CSIC
SURECOLOR SC-P9001860930535INK SYSTEM,IEI,CH38,D:ASP
SURECOLOR SC-P9001856725536APG UNIT,B,IEI,CH37,ASP
SURECOLOR SC-P9001841422537FRAME MOTOR IS ASSY,IEI,CH37,ASP
SURECOLOR SC-P9001841413538PULLEY,DRIVEN,B,ASSY.,IEI,ASP
SURECOLOR SC-P9001511221539EXTENSION SPRING,26.7
SURECOLOR SC-P9001841405540PAPER GUIDE,UPPER,ASSY,ASP
SURECOLOR SC-P9001806770541TORSION SPRING,1.88
SURECOLOR SC-P9001831542542EXTENSION SPRING,0.78
SURECOLOR SC-P9001809955543EXTENSION SPRING,0.96
SURECOLOR SC-P9001841421544HOLDER,INK,DETECTION,ASSY,ASP
SURECOLOR SC-P9001807735545PROTECTION SHEET,POROUS PAD,D
SURECOLOR SC-P9001807729546POROUS PAD,INK,DETECTION,D
SURECOLOR SC-P9002204321547CABLE,FFC,INK EJECT,B
SURECOLOR SC-P9002204316548CABLE,CRCM
SURECOLOR SC-P9002204317549CABLE,CRCM,B
SURECOLOR SC-P9001863082550POROUS PAD,PGF,UPPER,ASSY,CH37,C,ASP
SURECOLOR SC-P9001841424560HARNESS RELAY,ASSY,ASP
SURECOLOR SC-P9001841590561SLIDER,TRANSMISSION,B
SURECOLOR SC-P9001806954562COVER,CR
SURECOLOR SC-P9001841594563GUIDE,FFC,HEAD,B
SURECOLOR SC-P9001849187564FILTER,COOLING FAN
SURECOLOR SC-P9001849144565SHEET,BLOCK,DUST
SURECOLOR SC-P9001846565566SHEET,SUPPORT,GUIDE,TUBE
SURECOLOR SC-P900FA61002700PRINT HEAD,HOK,ASP
SURECOLOR SC-P9001841391701CABLE,HEAD,ASSY,IEI,CH37,ASP
SURECOLOR SC-P9002184028702COOLING,FAN
SURECOLOR SC-P9001841418703DECOMP ASSY,IEI, CH37,ASP
SURECOLOR SC-P9001861660704INK SUPPLY ASSY,NON EHC,C, IEI,CH37,ASP
SURECOLOR SC-P9001806947705SCALE,CR
SURECOLOR SC-P9001535532706TORSION SPRING,0.39
SURECOLOR SC-P9001861623707TRAY,BD,B
SURECOLOR SC-P9001806730708COVER,P.C.B,LED
SURECOLOR SC-P9001830803709LED LIGHT ASSY,IEI,CH37
SURECOLOR SC-P9001806968711CLAMP,FFC,TUBE
SURECOLOR SC-P9001855693712GUIDE,TUBE,CR ASSY,B,IEI.,ASP
SURECOLOR SC-P9001851882713SHEET,SUB,TUBE,ASSY,IEI,CH37,ASP
