Parts Manual for EPSON SureColor R5000 R5010 R5030 R5050 R5070

In stock
SKU
EP-R5000-PM
$1.20
Compare
Email

Share it:

  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing

Share it:

Links
$1.20

*****   The following content is not included in the PDF manual   *****

**   Please refer to the details ONLINE   ***

www.sdott-parts.com

SURECOLOR SC-R500018491653CASTER,GX60PS
SURECOLOR SC-R500018491664CASTER,GX60P
SURECOLOR SC-R500022078825HARNESS,JUMPER,CABLE,Euro
SURECOLOR SC-R500022089816HARNESS,USB,RIPS2
SURECOLOR SC-R500018512348STAND LEFT ASSY ESL ,ASP
SURECOLOR SC-R500018512359STAND RIGHT ASSY ESL,ASP
SURECOLOR SC-R5000165482010ADJUSTER,D-B3 10X75FR
SURECOLOR SC-R50001851223101COVER INLET ASSY ESL,ASP
SURECOLOR SC-R50001861426102COVER TOP RIGHT ASSY,A,ESL,ASP
SURECOLOR SC-R50001851232103PRINTER COVER ASSY ESL, ASP
SURECOLOR SC-R50001851227104DAMPER,MAINTENANCE,RIGHT,ASSY, ESL,ASP
SURECOLOR SC-R50001851228105DAMPER,MAINTENANCE,LEFT,ASSY,ESL,ASP
SURECOLOR SC-R50001850702106COVER LEFT LOWER ASSY ESL,ASP
SURECOLOR SC-R50001851233107COVER TOP LEFT ASSY ESL, ASP
SURECOLOR SC-R50001851229108DAMPER,PRINTER COVER,ASSY,ESL,ASP
SURECOLOR SC-R50001814168109COVER,CORNER,LEFT,LOWER
SURECOLOR SC-R5000173195911STAY STAND SUB ASSY,ASP
SURECOLOR SC-R50001814171110COVER,CORNER,LEFT,UPPER
SURECOLOR SC-R50001814154111COVER,CORNER,RIGHT,LOWER
SURECOLOR SC-R50001814150112COVER,CORNER,RIGHT,UPPER
SURECOLOR SC-R50001814185113KNOB,RELEASE
SURECOLOR SC-R50001808365115LABEL,CAUTION,HOT,B
SURECOLOR SC-R50001832658118LABEL,CAUTION,HOT
SURECOLOR SC-R50001851236119COVER RIGHT LOWER ASSY ESL,ASP
SURECOLOR SC-R5000171950112STAY,STAND,FRONT
SURECOLOR SC-R50001851239120MICRO DOOR SWITCH ASSY ESL, ASP
SURECOLOR SC-R50001837970121LABEL,MODEL NAME,R5000
SURECOLOR SC-R50001622968126LABEL,CAUTION,FINGER
SURECOLOR SC-R50002207233201BOARD ASSY.,SUB
SURECOLOR SC-R50002207686202HARNESS,PSL1,MAIN,H10
SURECOLOR SC-R50002207687203HARNESS,PSL1,MAIN,H11
SURECOLOR SC-R50002207681204HARNESS,SUB-AC,PSL1,H2
SURECOLOR SC-R50002200022205FAN, COOLING,HDD
SURECOLOR SC-R50002208397206BOARD ASSY.,POWER SUPPLY
SURECOLOR SC-R50002207683207HARNESS,SUB-FL1,PSL2,H7
SURECOLOR SC-R50002207699208HARNESS,RELAY,SUB-Z,H12
SURECOLOR SC-R50002207700209HARNESS,RELAY,SUB-Z,H13
SURECOLOR SC-R50002207231210BOARD ASSY.,MAIN
SURECOLOR SC-R50002207247211BOARD ASSY.,DRV
SURECOLOR SC-R50002175354233BOARD ASSY.,SUB
SURECOLOR SC-R50001680677501SCALE,PF ASSY ESL,ASP
SURECOLOR SC-R50001858698502DUCT,SUPPLY,TUBE,ASSY,CH28,ESL,ASP
SURECOLOR SC-R50001850691503DUCT,ONCR,ASSY,CH28,ESL,ASP
SURECOLOR SC-R50002207166504THERMISTOR,PAPER GUIDE
SURECOLOR SC-R50001861823505PUMP CAP,ASSY,CH28,B ESL,ASP
SURECOLOR SC-R50001863061506PLATEN ASSY.A, ESL, ASP
SURECOLOR SC-R50002205252507MOTOR ASSY.,CR
SURECOLOR SC-R50001850703508SENSOR PE ASSY ESL,ASP
SURECOLOR SC-R50001850693509KEEP CAP,ASSY,CH28, ESL,ASP
SURECOLOR SC-R50002143464510PHOTO INTERRUPTER
SURECOLOR SC-R50001850694511KEEP CAP,HEAD,ASSY,CH28, ESL,ASP
SURECOLOR SC-R50001850695512CONNECT UNIT,MAIN SIDE,CH28, ESL,ASP
SURECOLOR SC-R50002109393513BOARD ASSY.,DETECTOR,PW,B
SURECOLOR SC-R50001850696514PRESSURE PUMP,UNIT,CH28, ESL,ASP
SURECOLOR SC-R50001850697515FLASHING BOX,UNIT,CH28, ESL,ASP
SURECOLOR SC-R50001850698516CLOTH WIPER CARRIAGE,UNIT,CH28,ESL,ASP
SURECOLOR SC-R50001876959516CLOTH WIPER CARRIAGE,UNIT,CH28,ESL,ASP
SURECOLOR SC-R50001861351517INK EJECT SELECTOR,UNIT,CH28,B ESL,ASP
SURECOLOR SC-R50001850700518WATER SELECTOR,UNIT,CH28,ESL,ASP
SURECOLOR SC-R50001851226519PANEL ASSY ESL,ASP
SURECOLOR SC-R50001868405520CR ASSY ESL,B,ASP
SURECOLOR SC-R50001824806521TIMING BELT,CR
SURECOLOR SC-R50002205253522FFC,IMS
SURECOLOR SC-R50002205254523FFC,PW
SURECOLOR SC-R50002205255524FFC,CR,ENCODER
SURECOLOR SC-R50002205256525CABLE,DETECTOR,PG
SURECOLOR SC-R50002205257526CABLE,DETECTOR,COVER,CR
SURECOLOR SC-R50002205258527FFC,NP TEMPERATURE SENSOR
SURECOLOR SC-R50002206390528CABLE,DETECT,DISPLACEMENT,SENSOR
SURECOLOR SC-R50002207235529BOARD ASSY.,SUB
SURECOLOR SC-R50002207237530BOARD ASSY.,SUB
SURECOLOR SC-R50002207239531BOARD ASSY.,SUB
SURECOLOR SC-R50002207690532HARNESS,SUB,SUB-U,H19
SURECOLOR SC-R50001851222533APG MOTOR ASSY ESL,ASP
SURECOLOR SC-R50002207739534HARNESS,RELAY,SUB-X7 FAN,H184
SURECOLOR SC-R50001850704535TRAY LEAKAGE FRONT ASSY ESL,ASP
SURECOLOR SC-R50002207689536HARNESS,PNL,Speaker,H14
SURECOLOR SC-R50001850705537TRAY LEAKAGE SIDE ASSY ESL,ASP
SURECOLOR SC-R50002139052538FAN ASSY.,ABSORPTION
SURECOLOR SC-R50001851224539COVER HEATER TOP REAR ASSY ESL,ASP
SURECOLOR SC-R50001850706540DETECTOR RIGHT ASSY ESL,ASP
SURECOLOR SC-R50002139305541CABLE,THERMISTOR
SURECOLOR SC-R50002211419542MOTOR ASSY.,PF,B
SURECOLOR SC-R50002170578543BOARD ASSY.,ENCODER,PF
SURECOLOR SC-R50001850707544MOUNTING PLATE SENSOR ASSY ESL,ASP
SURECOLOR SC-R50001850708545POWER BOX HOME ASSY ESL,ASP
SURECOLOR SC-R50001851237546DRY FAN ASSY,6pcs Set,ESL, ASP
SURECOLOR SC-R50002207703547HARNESS,REALY,THERMISTOR,H200
SURECOLOR SC-R50002182572548MOTOR ASSY.,ASF,SUB
SURECOLOR SC-R50001851238549LED ASSY ESL,ASP
SURECOLOR SC-R50002207740550HARNESS,MAIN,PNL,FFC,F1
SURECOLOR SC-R50001851231551HOLDER SUPPLY ASSY ESL,ASP
SURECOLOR SC-R50002205268552CABLE,DETECTOR,MANUAL RELEASE
SURECOLOR SC-R50002205272553CABLE,MOTOR,NIP
SURECOLOR SC-R50001851240554UNDER SUB X FULL BOX ASSY ESL,ASP
SURECOLOR SC-R50001664858555TIMING BELT,PF
SURECOLOR SC-R50002206630556BOARD ASSY.,SUB
SURECOLOR SC-R50002205273557HARNESS,DETECTOR,PE
SURECOLOR SC-R50002207763560BOARD ASSY.,SUB
SURECOLOR SC-R50002207684562HARNESS,RELAY,SUB-AC,H311
SURECOLOR SC-R50002207720563HARNESS,RELAY,SUB-X,H312
SURECOLOR SC-R50002207715564HARNESS,SUB-FL2,SUB-X2,H309
SURECOLOR SC-R50002207717565HARNESS,RELAY,PLATEN HEATER HS,H304
SURECOLOR SC-R50002207719566HARNESS,RELAY,SUB-X2 FAN,H169
SURECOLOR SC-R50002207716567HARNESS,RELAY,SUB-X1,H314
SURECOLOR SC-R50002207680568HARNESS,SUB-AC,INLET,H1
SURECOLOR SC-R50002207682569HARNESS,SUB-FL1,INLET,H6
SURECOLOR SC-R50002207685570HARNESS,SUB-AC,OUTLET,H5
SURECOLOR SC-R50002207251571BOARD ASSY.,SUB
SURECOLOR SC-R50002207802572HARNESS ASSY.,LEAK
SURECOLOR SC-R50002207707573HARNESS,REALY,STIFFEN FAN,H337
SURECOLOR SC-R50002207704574HARNESS,REALY,STIFFEN THERMISTOR,H318
SURECOLOR SC-R50001850709575POWER BOX FULL ASSY ESL,ASP
SURECOLOR SC-R50002205275577HARNESS,INTERMIT,DRYINGFAN,L
SURECOLOR SC-R50002205274578HARNESS,INTERMIT,DRYINGFAN,S
SURECOLOR SC-R50002205276579HARNESS,INTERMIT,HUMIDITY-SENSOR
SURECOLOR SC-R50002207693580HARNESS,SUB-C,SUB-R,H43
SURECOLOR SC-R50001851242581UNDER SUB X HOME BOX ASSY ESL,ASP
SURECOLOR SC-R50002205266582HARNESS,MOTOR,APG
SURECOLOR SC-R50001709542584JOINT,INK EJ,FLASHING BOX
SURECOLOR SC-R50001854834585TUBE,INK EJECT,OP, ASP
SURECOLOR SC-R50001860791586TORSION SPRING,CLAMP,4.4
SURECOLOR SC-R50002207706589HARNESS,REALY,STIFFEN FAN,H119
SURECOLOR SC-R50002207722592HARNESS,RELAY,SUB-FL2,H332
SURECOLOR SC-R50002207726593HARNESS,RELAY,SUB-X3,H330
SURECOLOR SC-R50002207727594HARNESS,RELAY,PLATEN HEATER FC,H336
SURECOLOR SC-R50002207729595HARNESS,RELAY,SUB-X4 FAN,H324
SURECOLOR SC-R50002207765596BOARD ASSY.,SUB
SURECOLOR SC-R50001814022597SCALE,CR
SURECOLOR SC-R50001813980598COVER,CR
SURECOLOR SC-R50002207724599HARNESS,RELAY,SUB-X3 FAN,H322
SURECOLOR SC-R50002205270600HARNESS,ENCORDER,PF
SURECOLOR SC-R50002176012601SENSOR,TEMPERATURE,HUMIDITY,HSHCAA106F
SURECOLOR SC-R50002207718602HARNESS,RELAY,PLATEN HEATER HS,H301
SURECOLOR SC-R50002207723603HARNESS,RELAY,PLATEN HEATER HC,H302
SURECOLOR SC-R50002207752604HARNESS,DRV-M,SUB-K,FFC,F28
SURECOLOR SC-R50002207728605HARNESS,RELAY,PLATEN HEATER FC,H303
SURECOLOR SC-R50002207730606HARNESS,RELAY,PLATEN HEATER FS,H305
SURECOLOR SC-R50002205265607HARNESS,DETECTOR,HP,CR
SURECOLOR SC-R50002204863609INDICATOR LIGHT, ASSY
SURECOLOR SC-R50001814033610SHEET,GUIDE RAIL,TUBE,FRONT
SURECOLOR SC-R50001814034611SHEET,GUIDE RAIL,TUBE,REAR
SURECOLOR SC-R50002207768612BOARD ASSY.,DRV
SURECOLOR SC-R50002199868613BOARD ASSY.,SUB
SURECOLOR SC-R50002207741615HARNESS,MAIN,DRV-H,FFC,F3
SURECOLOR SC-R50002203867616FAN,COOLING,06025SS-24Q-AL-DE
SURECOLOR SC-R50002203868617FAN,COOLING,08025SS-24Q-AL-D5
SURECOLOR SC-R50002207742618HARNESS,MAIN,DRV-H,FFC,F4
SURECOLOR SC-R50002207743619HARNESS,MAIN,DRV-H,FFC,F5
SURECOLOR SC-R50002207744620HARNESS,MAIN,DRV-H,FFC,F6
SURECOLOR SC-R50002207747621HARNESS,MAIN,SUB-Y,FFC,F15
SURECOLOR SC-R50002207678622HARNESS,POWER,ASSY
SURECOLOR SC-R50002207676623HARNESS,SIGNAL,ASSY, DRV-M
SURECOLOR SC-R50002207696624HARNESS SIGNAL ASSY NIP
SURECOLOR SC-R50002207677625HARNESS,SIGNAL,ASSY,SUB-Z
SURECOLOR SC-R50002207679626HARNESS,AC,ASSY
SURECOLOR SC-R50002207674627HARNESS,MOTOR,ASSY
SURECOLOR SC-R50002170927628CABLE,SENSOR,TENSION
SURECOLOR SC-R50002207675629HARNESS,ENCODER,ASSY
SURECOLOR SC-R50002207673630HARNESS,SIGNAL,ASSY,SUB-Y
SURECOLOR SC-R50002150441631MOTOR ASSY.,WIPER
SURECOLOR SC-R50002207735632HARNESS,RELAY,SUB-X6 FAN,H179
SURECOLOR SC-R50002175356633BOARD ASSY.,SUB
SURECOLOR SC-R50002207736634HARNESS,SUB-X6,SUB-X7,H180
SURECOLOR SC-R50002207732635HARNESS,SUB-X5,SUB-X6,H320
SURECOLOR SC-R50002207731636HARNESS,RELAY,SUB-X5 FAN,H326
SURECOLOR SC-R50002206671637BOARD ASSY.,SUB
SURECOLOR SC-R50002207725638HARNESS,RELAY,SUB-X4,SUB-X5,H333
SURECOLOR SC-R50002207721639HARNESS,RELAY,SUB-FL2,H313
SURECOLOR SC-R50002207712640HARNESS,RELAY,PRE HEATER,H189
SURECOLOR SC-R50002207714641HARNESS,RELAY,SUB-X2,SUB-X3,H166
SURECOLOR SC-R50002209000642BOARD ASSY.,SUB
SURECOLOR SC-R50002207713643HARNESS,RELAY,SUB-X1 FAN,H160
SURECOLOR SC-R50002207702644HARNESS,SUB-Z,SUB-X,H117
SURECOLOR SC-R50002207710645HARNESS,REALY,REEL,H136
SURECOLOR SC-R50002207709646HARNESS,SUB-Z,SUB-F ROLL,H135
SURECOLOR SC-R50002207701647HARNESS,RELAY,PSL2,H328
SURECOLOR SC-R50002207745648HARNESS,MAIN,SUB-Z,FFC,F13
SURECOLOR SC-R50001670304649ROLLER,DRIVEN,B
SURECOLOR SC-R50002207746650HARNESS,MAIN,SUB-Z,FFC,F14
SURECOLOR SC-R50002207691651HARNESS,MAIN,DRV-M,H15
SURECOLOR SC-R50002207748652HARNESS,MAIN,DRV-M,FFC,F24,F26
SURECOLOR SC-R50002207749653HARNESS,MAIN,DRV-M,FFC,F25,F27
SURECOLOR SC-R50002206314654HARNESS,MAINTENANCE,SENSOR,LEFT
SURECOLOR SC-R50002206313655HARNESS,MAINTENANCE,SENSOR,RIGHT
SURECOLOR SC-R50002207695656HARNESS,RELAY,INTERLOCK,H,H198
SURECOLOR SC-R50002207692658HARNESS,DRV-M,SUB-C,H42
SURECOLOR SC-R50001813991660COVER,P.C.B.,LAF2
SURECOLOR SC-R50002205259661HEAD,FFC
SURECOLOR SC-R50002205260662HEAD,FFC,B
SURECOLOR SC-R50002205261663HEAD,FFC,C
SURECOLOR SC-R50002205262664HEAD,FFC,D
SURECOLOR SC-R50002205263665P.C.B.,FFC
SURECOLOR SC-R50002205264666P.C.B.,FFC,B
SURECOLOR SC-R50002209684667HARNESS,RELAY,WASTE LIQUID, SENS, H93
SURECOLOR SC-R50002209548668HARNESS,INTERMIT,AFTER ROUTE
SURECOLOR SC-R50002084550670BOARD ASSY.,INK MARK
SURECOLOR SC-R50001795092671BOARD ASSY.,ENCODER,CR
SURECOLOR SC-R50002207801672DISPLACEMENT SENSOR,KE401-M120-R1
SURECOLOR SC-R50002205802673SOLENOID VALVE,V06A-778
SURECOLOR SC-R50001836933674CLOTH CATCHER ASSY ESL,ASP
SURECOLOR SC-R50001866507NON FIGHORN,U
SURECOLOR SC-R50001476228NON FIGJETRAS JP-D300S
SURECOLOR SC-R50001748666NON FIGLABEL,CAUTION,EMERGENCY MESSAGE,H
SURECOLOR SC-R50001859269NON FIGLFP INK LC T48F500 (1.5L) (CDC)
SURECOLOR SC-R50001859270NON FIGLFP INK LM T48F600 (1.5L) (CDC)
SURECOLOR SC-R50001859267NON FIGLFP INK M T48F300 (1.5L) (CDC)
SURECOLOR SC-R50001859272NON FIGLFP INK ML T48F800 (1.5L) (CDC)
SURECOLOR SC-R50001859271NON FIGLFP INK OP T48F700 (1.5L) (CDC)
SURECOLOR SC-R50001859265NON FIGLFP INK RS BK T48F100 (1.5L) (CDC)
SURECOLOR SC-R50001859266NON FIGLFP INK RS C T48F200 (1.5L) (CDC)
SURECOLOR SC-R50001859268NON FIGLFP INK Y T48F400 (1.5L) (CDC)
SURECOLOR SC-R50001640645NON FIGSONIC TENSION METER U508
SURECOLOR SC-P95001775777717COVER,WARNING LIGHT
SURECOLOR SC-P95001821522720FLANGE,UNIT,L2 SUB,ESL,ASP
SURECOLOR SC-P95001821523723STACKER UNIT 44,CH13,ESL,ASP
SURECOLOR SC-P95001821525724EJ,DRIVEN,MOTOR,UNIT SUB,ESL,ASP
SURECOLOR SC-P95002199599725HARNESS,COVER,IH,RIGHT
SURECOLOR SC-P95002199600726HARNESS,COVER,IH,LEFT
SURECOLOR SC-P95002185996727BOARD ASSY.,PANEL
SURECOLOR SC-P95002199973728SPEAKER,HARNESS,ASSEMBLY
SURECOLOR SC-P95001794444729SENSOR ASSY,COVER,IH
SURECOLOR SC-P95001771413NON FIGCLEANING CARTRIDGE 20
SURECOLOR SC-P95001662469NON FIGCLEANING CARTRIDGE,200
SURECOLOR SC-P95001507278NON FIGCLEANING PG ADJUSTMENT JIG
SURECOLOR SC-P95001662470NON FIGDRAIN CARTRIDGE
SURECOLOR SC-P95001080614NON FIGGREASE G-26 (40GR)(B702600001)
SURECOLOR SC-P95001033657NON FIGGREASE G-45
SURECOLOR SC-P95001480655NON FIGGREASE G-71(BLUE)
SURECOLOR SC-P95001409257NON FIGGREASE G-74
SURECOLOR SC-P95001516265NON FIGGREASE,G-84
SURECOLOR SC-P95001476228NON FIGJETRAS JP-D300S
SURECOLOR SC-P95001827064NON FIGJIGU,PAPER EJECT,ADJUST
SURECOLOR SC-P95001521154NON FIGOIL,O-17
SURECOLOR SC-P95001424364NON FIGP-THICK SENSOR POSITION JIG
SURECOLOR SC-P95001282355NON FIGPAPER THICKNESS POSITION TOOL
SURECOLOR SC-P95001543007NON FIGPG HEIGHT ADJUSTMENT JIG 1.55
SURECOLOR SC-P95001507506NON FIGPG HEIGHT ADJUSTMENT JIG 1.65
SURECOLOR SC-P95001507277NON FIGPG HEIGHT ADJUSTMENT JIG 1.75
SURECOLOR SC-P95001640645NON FIGSONIC TENSION METER U508

More Information
Manual Name SureColor R5000 R5010 R5030 R5050 R5070 Parts Manual
Format PDF
PDF Archive 23.5 MB
Pages 13
Type SERVICE or PARTS MANUAL
Compatible Model EPSON SureColor R5000 B5010 R5030 R5040 R5050 R5070

Default Category

    All CategoriesClose

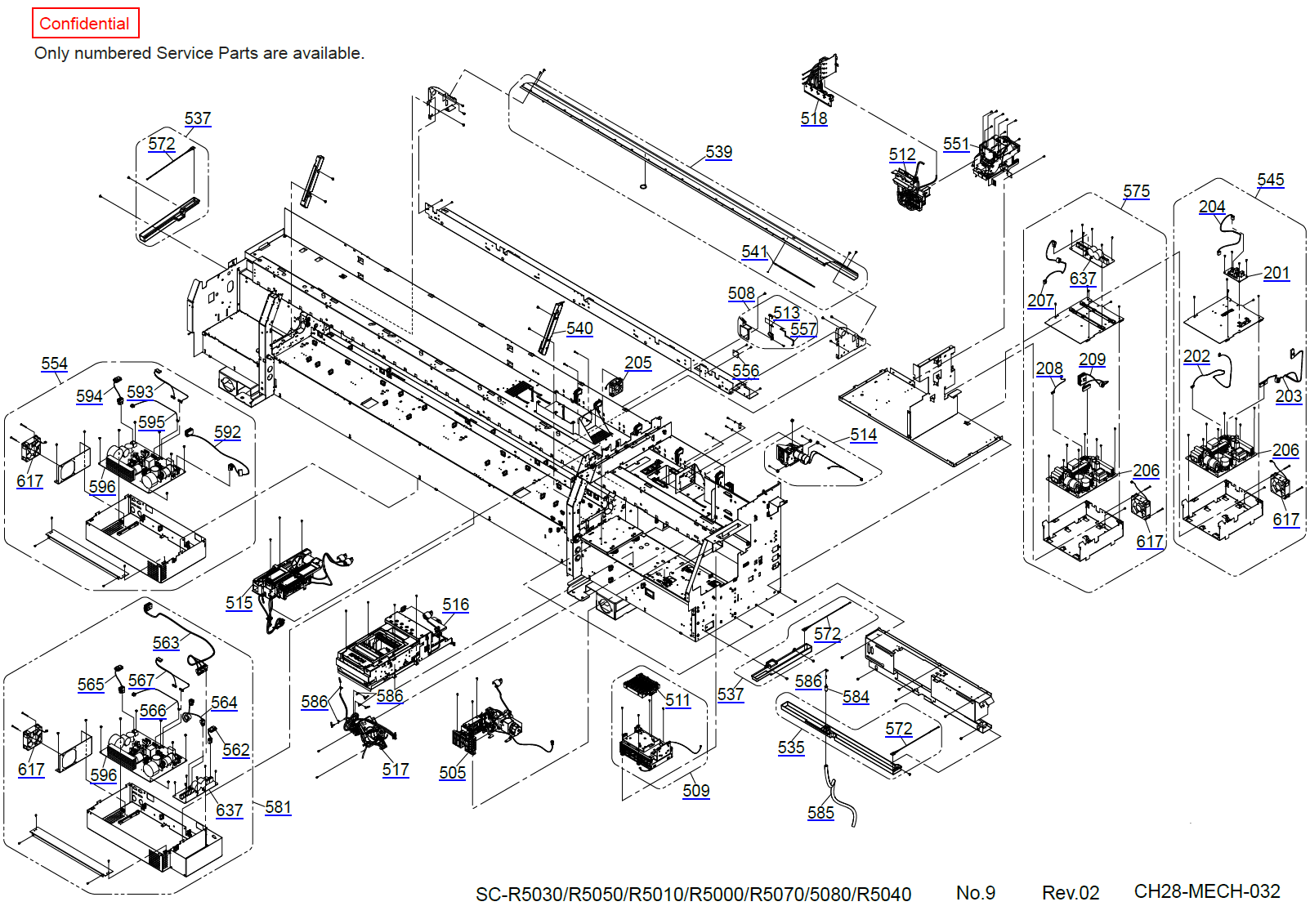

    Parts Manual for EPSON SureColor R5000 R5010 R5030 R5050 R5070
