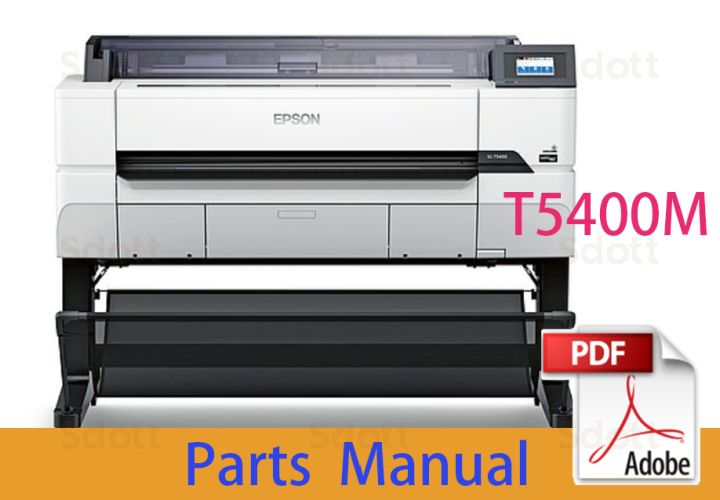

Parts Manual for EPSON SureColor T5400M T5430M T5440M T5450M T5460M T5470M T5480M

In stock
SKU
EP-T5400M-PM
$1.25
Compare
Email

Share it:

  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing

Share it:

Links
$1.25

EPSON SureColor T5400 T5430 T5440 T5450 T5460 T5470 T5480 Series

*****   The following content is not included in the PDF manual   *****

*****   Please refer to the details ONLINE   ******

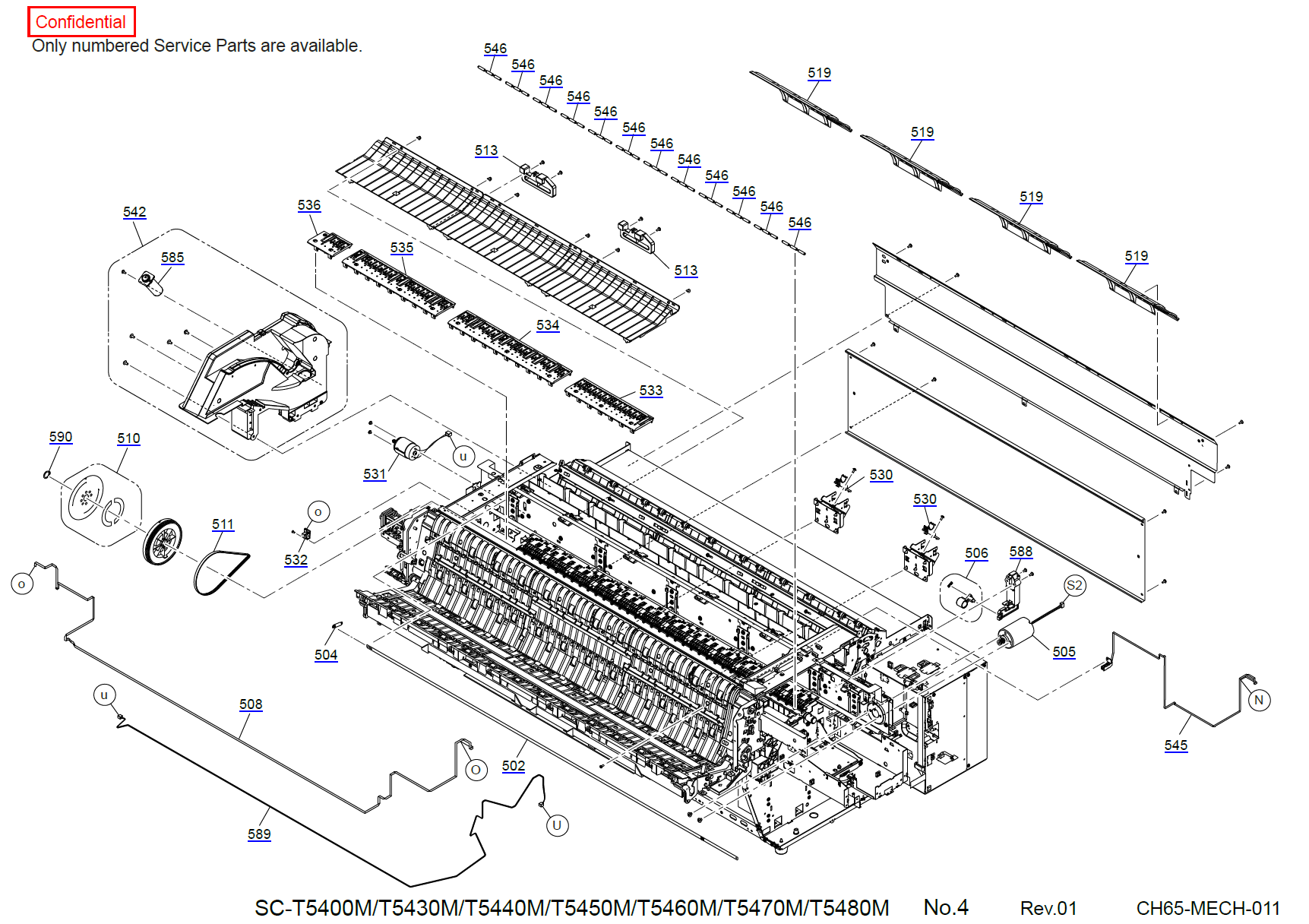

18081341STAND ASSY,CH65,ASP
18423291STAND ASSY,CH65,ASP
1739014101COVER,SIDE,LEFT
1808123102COVER,FRONT,RIGHT,SC,ASSY,CH65,IEI,ASP
1861812102COVER,FRONT,RIGHT,SC,ASSY,CH65,IEI,ASP
1794275103COVER,FRONT,LEFT,SC,ASSY,CH65,IEI
1737854107DECORATION PLATE,UPPER,LEFT
1739163108HOLDER,MAINTENANCE,RIGHT
1739164109HOLDER,MAINTENANCE,LEFT
1808124110COVER,FRONT,ASSY,CH65,IEI,ASP
1759667111COVER FRONT MIDDLE UPPER,ASSY,CF86,ASP
1747774112COVER MAINTENANCE,ASSY,CF86,IEI
1810102113COVER,SIDE,RIGHT,ASSY,CH65,WW,ASP
1736802114CAP,CR
1736804115COVER,IH,BEARING
1760039116COVER,IH,ASSY,ASP
1815591117COVER TOP ASSY,CH65,ASP
1760023118HOLDER MAINTENANCE MIDDLE ASSY,CF86,ASP
1739023119HINGE,COVER,ROLL
1760024120COVER,ROLL,FRONT,36,ASSY,IEI,ASP
1760025121COVER,ROLL,36,ASP
1739070122COVER,IF
1760040123COVER,REAR,ASSY,ASP
1760029124COVER,SIDE,LEFT,BASE,ASP
1786099125COVER,SIDE,LEFT,UPPER,B
1737855126DECORATION PLATE,RIGHT
1786925130COVER,FRONT,LEFT,LOWER,B
1786926131COVER,FRONT,LEFT,LOWER
1790788132COVER,FRONT,RIGHT,LOWER
1808125133HOLDER,BUTTON,RIGHT,ASSY,ASP
1808126134HOLDER,BUTTON,LEFT,ASSY,ASP
17653012PIPE,BASKET,SIDE ASSY,IEI
2198408200BOARD ASSY.,MAIN 7273A, STANDARD
2220528200BOARD ASSY.,MAIN
2230137200BOARD ASSY.,MAIN
2185994201BOARD ASSY.,SUB
2194158202WIRELESS LAN USB MODULE
2199125203HARNESS,WiFi
2185581204HARNESS,RELAY,SUB-B
2185582205HARNESS,SUB-B,FFC_40
2192188207MEMORY CARD
2198410210BOARD ASSY.,MAIN
17351573PIPE,BASKET,36
2202150300BOARD ASSY.,POWER SUPPLY
2185563301HARNESS,P/S,INLET
2185566302HARNESS,P/S,DC_OUT_2
2185564303HARNESS,AC,RELAY
2185565304HARNESS,P/S,DC_OUT_1
17351584BASKET,36
2185575501HARNESS,CRCM
1759656502SCALE,CR36,ASP
1735293503HOLDER,TUBE
1487528504EXTENSION SPRING,3.0,B
2189129505MOTOR ASSY.,CR
1760037506LEVER,APG,ASSY,ASP
2186293508CABLE,ENCODER,PF,36
1480133509PULLEY,DRIVEN
1760017510SCALE,PF,KIT,ASP
1524703511TIMING BELT,PF
1560752512TIMING BELT,CR,36
1735151513PAPER GUIDE,REAR,SUB
2186931515HARNESS,COVER,TOP
2235258515HARNESS,COVER,TOP
2186933516HARNESS,COVER,PRINTER,36
2186934517HARNESS,COVER,INK
2186935518HARNESS,COVER,MAINTENANCE
1739188519COVER,ROLL,REAR
1759652520IH ASSY.,CF86,EPW,ASP
1842693520IH ASSY.,CF86,EPW,ASP
1860810520IH ASSY.,CF86,EPW,ASP
1909545520IH ASSY.,CF86,EPW,ASP
1945190520IH ASSY.,CF86,EPW,ASP
1759657521SEAL RUBBER,JOINT,DUCT,ASP
1760161522INK SYSTEM, IEI, ASSY, CF86,ASP
1836200522INK SYSTEM, IEI, ASSY, CF86,ASP
1893209522INK SYSTEM, IEI, ASSY, CF86,ASP
2186496523CABLE,ENCODER,IS,CF86
1725717524COVER,ENCODER
2186510525HARNESS,INK EJECT,CF85
1220013526LEAF SPRING,LOCK
1759658527BOARD UNIT,CF86,ASP
2186497528HARNESS,MOTOR,IS,L,CF86
2184028529COOLING,FAN
1735923530CENTER SUPPORT,ROLLER,PF
2186292531MOTOR ASSY,PF
2133325532BOARD ASSY.,ENCODER,PF
2208679532BOARD ASSY.,ENCODER,PF
2210270532BOARD ASSY.,ENCODER,PF
1736646533PAPER GUIDE,FRONT
1736647534PAPER GUIDE,FRONT,B
1736648535PAPER GUIDE,FRONT,C
1736649536PAPER GUIDE,FRONT,D
1794053537CR ASSY,B,CF86,IEI,ASP
2186289538CABLE,PW
2109393539BOARD ASSY.,DETECTOR,PW,B
2186290540CABLE,IMS
2183502541BOARD ASSY.,INK MARK,D
1759660542SPINDLE HOLDER LEFT ASSY,CF86,IEI,ASP
1760020544GUIDE PLATE TUBE ASSY,CF86,ASP
1747692545SENSOR HOLDER PAPER ASSY IEI
1760021546ROLLER ASSY.,DRIVEN,ASP
1747750547COVER,CR ASSY
1735147548SPUR GEAR,51
1759661549PANEL,ASSY,CF86,IEI,ASP
1947521549PANEL,ASSY,CF86,IEI,ASP
2186932550SENSOR,ASSY,COVER
2133208551MICRO DOOR SWITCH,D3DC-3
2221373551MICRO DOOR SWITCH,D3DC-3
1737870552HOLDER,SENSOR,INNER
1787899554HARNESS FFC ASSY,B,CF86,IEI,ASP
1760019555SHEET,GUIDE,TUBE,36,KIT,ASP
FA41011560PRINT HEAD,I03569-1,ASP
FA41021560PRINT HEAD,I03569-1,ASP
2186088561FAN ASSY.,EJ
2200974562HARNESS,FAN,EJ,B
1759655566Ersetzt durch: 1852622
1852622566SPINDLE HOLDER RIGHT ASSY,CF86,IEI,ASP
2186928567HARNESS,REWIND
2185569568HARNESS,PANEL
1739012569EXTENSION SPRING,0.63
2186929570HARNESS,ROLL,COVER
2090717571LEAF SENSOR
2186930572HARNESS,MANUAL INSERTION,COVER
1743928573COVER,LED
2188194574HARNESS,RELAY,PNL-B
2185996575BOARD ASSY.,PANEL
2150781576HARNESS
1739016577EXTENSION SPRING,19.08
1760026578FRAME DRIVE ROLL,ASSY,ASP
2186575584MOTOR ASSY,ATC
1747762585DUMPER,ASSY,CF86,IEI
1751368586POROUS PAD,CR
1759663587COVER,INK,SHIELD,CF86,ASP
1747751588FLAG APG,IEI,,ASSY
2186297589HARNESS,RELAY,MOTOR,PF,36
1725657590C-RING,STW-16
1760018591OIL PAD,ASSY,ASP
2186291592CABLE,ENCODER,CR
2185992593BOARD ASSY.,SUB
2232336593BOARD ASSY.,SUB
1759659594CUTTER ASSY CF86,IEI,ASP
1577038595COVER,MOTOR,CUTTER
2186299597HARNESS,SENSOR,CUTTER
2196565598BOARD ASSY.,ENC
1794276599EDGE GUIDE,RIGHT,ASSY,CH65,IEI
17600276CASTER,P60HG,ASP
1794277600EDGE GUIDE,LEFT,ASSY,CH65,IEI
2199165601HARNESS,RELAY,SUB-B
2117526602INTERFACE CABLE USB 2.0 65%,
1775295603LABEL,COVER,TERMINAL
17600287CASTER,P60HGA,ASP
1812631800SCANNER UNIT,CH65,IEI,ASP
1871761800SCANNER UNIT,CH65,IEI,ASP
1792144801GUIDE,SLIDER,LOCK
2170099802BOARD ASSY.,ENC
2199966803HARNESS,ENCODER,EJ
2200142804HARNESS,DETECTOR,PF
2198412806BOARD ASSY.,SUB
2199175807AFE BOARD
2199163808HARNESS,MAIN,SUB,1
2199164809HARNESS,MAIN,SUB,2
2204597810HARNESS,31P,MAIN,AFE,LEFT
2199109811HARNESS,16P,MAIN,AFE,LEFT
2199108812HARNESS,16P,MAIN,AFE,CENTER
2204596813HARNESS,31P,MAIN,AFE,CENTER
2199107814HARNESS,16P,MAIN,AFE,RIGHT
2204595815HARNESS,31P,MAIN,AFE,RIGHT
2199113816HARNESS,45P,AFE,CISM,RIGHT
2199114817HARNESS,45P,AFE,CISM,CENTER
2199115818HARNESS,45P,AFE,CISM,LEFT
2200146819HARNESS,LOCK,COVER,LEFT
2200145820HARNESS,LOCK,COVER,RIGHT
2200144821HARNESS,DETECTOR,COVER,OPEN
1786970823GUIDE,FFC,LEFT
1808133824CISM,UNIT,ASSY,CH65,IEI,ASP
1941466824CISM,UNIT,ASSY,CH65,IEI,ASP
1786917825PAPER GUIDE,CIS,B
1786918826PAPER GUIDE,CIS
1808127827SCREW,FASTEN,PAPER GUIDE,3x4.9,ASP
1794284828PAPER GUIDE,EJ,UPPER,B,ASSY,CH65,IEI
1794296829PAPER GUIDE EJ UPPER SENSOR ASSY,IEI
1794285830PAPER GUIDE,EJ,UPPER,ASSY,CH65,IEI
1794286831PAPER GUIDE,SCN,UPPER,ASSY,CH65,IEI
1791878832PAPER GUIDE,REAR,LEFT
1791877833PAPER GUIDE,REAR,RIGHT
1786899834PAPER GUIDE,FRONT,B,SC
1786900835PAPER GUIDE,FRONT,SC
1790910836PAPER GUIDE,EJ,LOWER
1786907837PAPER GUIDE,REAR,SC
1808128838HOLDER,DETECTOR,PE,ASSY,ASP
2200152839MOTOR ASSY.,SC
1794292840PRESSING PLATE,CIS,ASSY,CH65,IEI
1808129841SCALE,SC,KIT,ASP
1786070842SPUR GEAR,29.6
1786064843COMBINATION GEAR,20,12.8
1786062844SPUR GEAR,18.4
1786065845COMBINATION GEAR,45.5,14.4
1789313846GROUNDING SPRING,ROLLER,EJ
1480210847COMPRESSION SPRING,14.42
1480496848CUT WASHER,6.2X0.5X11,L/NA
1284746849P.W.,8.1X0.5X13.3,F/ZN-3C
1786922850BUSHING,8,SC
1808130851ROLLER ASSY.,PF,ASSY,ASP
1808131852ROLLER ASSY.,EJ,B,ASSY,ASP
1808132853ROLLER ASSY.,EJ,ASSY,ASP
1791880854CENTER SUPPORT,EJ
1791879855CENTER SUPPORT,PF
1452527856P.W.7.2x0.5x10.4,L/NA
2164868857PHOTO INTERRUPTER
1283665861E-RING,6,F/UC-3C
1608856862P.W.,8.2X0.5X14,L/NA

*****   Please refer to the details ONLINE   ******

More Information
Manual Name SureColor T5400M T5430M T5440M T5450M T5460M T5470M T5480M Parts Manual
Format PDF
PDF Archive 6.48M
Pages 11
Type SERVICE or PARTS MANUAL
Compatible Model EPSON SureColor T5400 T5430 T5440 T5450 T5460 T5470 T5480 Series
