Parts Manual for EPSON SureColor V7000
In stock
SKU
EP-V7000-PM
$1.20
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******

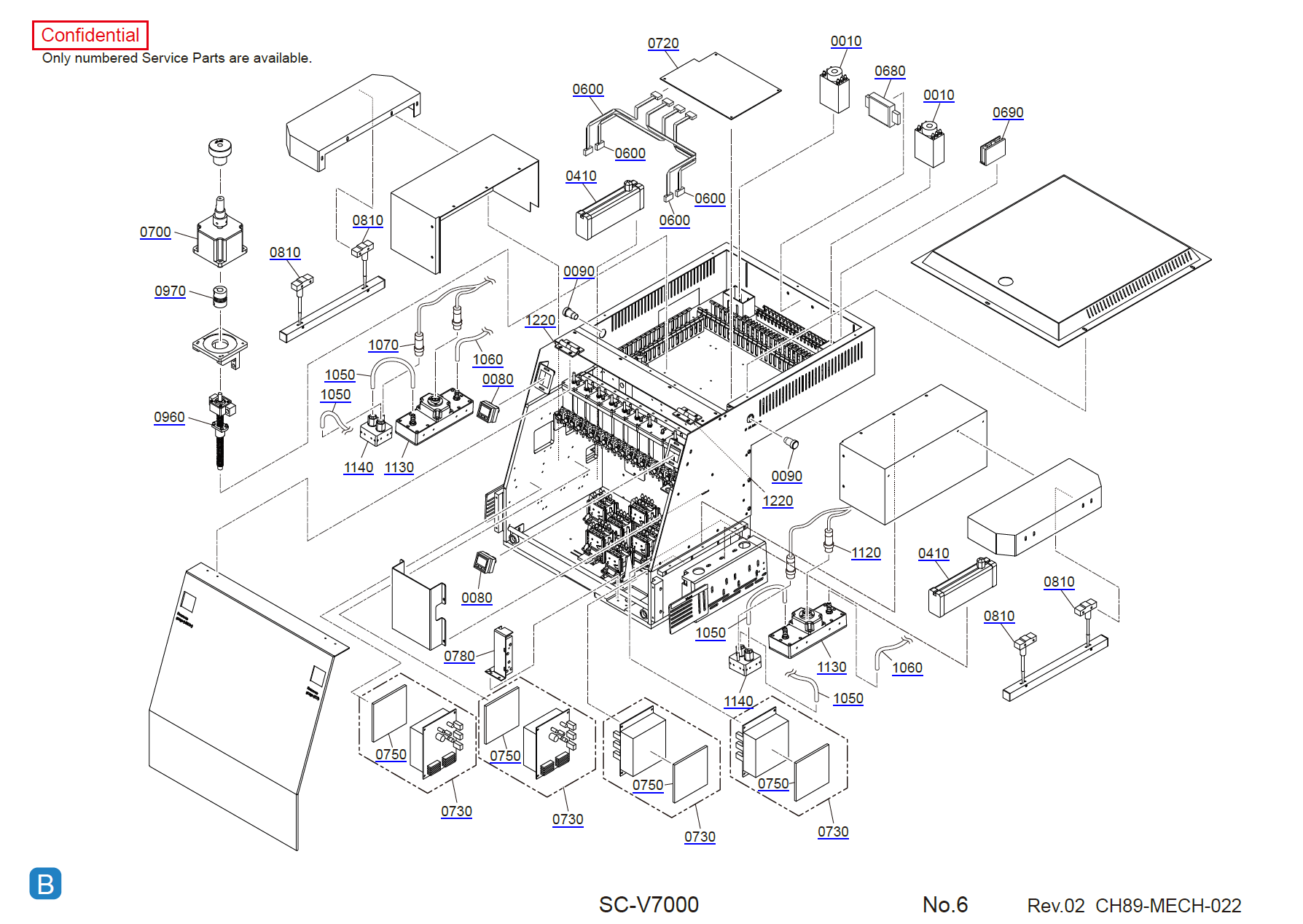

| SURECOLOR SC-V7000 | 1835885 | 10 | Air Box Assy |
| SURECOLOR SC-V7000 | 1835886 | 20 | Three-way solenoid valve |
| SURECOLOR SC-V7000 | 1835887 | 30 | JYY air pump |
| SURECOLOR SC-V7000 | 1835973 | 40 | JYY air pump (Negative) |
| SURECOLOR SC-V7000 | 1835888 | 50 | Simple negative pressure control panel |
| SURECOLOR SC-V7000 | 1835889 | 60 | Air Filter |
| SURECOLOR SC-V7000 | 1848618 | 70 | Dispenser bayonet needle assembly |
| SURECOLOR SC-V7000 | 1835891 | 80 | Negative pressure meter |
| SURECOLOR SC-V7000 | 1848619 | 90 | Illuminated button |
| SURECOLOR SC-V7000 | 1835892 | 100 | Tube Assy |
| SURECOLOR SC-V7000 | 1835893 | 110 | PU Tube |
| SURECOLOR SC-V7000 | 1836002 | 120 | Peristaltic pump Assy |
| SURECOLOR SC-V7000 | 1835894 | 130 | Sub Ink Tank(2) Assy (GY/R) |
| SURECOLOR SC-V7000 | 1835895 | 140 | Sub Ink Tank(2) with circulator Assy |
| SURECOLOR SC-V7000 | 1835896 | 150 | Sub Ink Tank(4) Assy |
| SURECOLOR SC-V7000 | 1835897 | 160 | Sub Ink Tank(2) Assy (LM/LC) |
| SURECOLOR SC-V7000 | 1835898 | 170 | Diaphragm pump Assy |
| SURECOLOR SC-V7000 | 1835899 | 190 | Ink tube Assy (C/M/Y/K) |
| SURECOLOR SC-V7000 | 1835900 | 200 | Ink tube Assy (GY/R/LM/LC) |
| SURECOLOR SC-V7000 | 1835901 | 210 | Ink tube Assy (Vr/WH/WC) |
| SURECOLOR SC-V7000 | 1835902 | 220 | 2L Main ink tank Assy |
| SURECOLOR SC-V7000 | 1835903 | 230 | 2L Main stirring ink tank Assy |
| SURECOLOR SC-V7000 | 1835904 | 240 | One Way Valve |
| SURECOLOR SC-V7000 | 1835905 | 250 | Sub Ink Tank Valve (Left) |
| SURECOLOR SC-V7000 | 1835906 | 260 | Sub Ink Tank Valve (Right) |
| SURECOLOR SC-V7000 | 1863739 | 280 | Damper |
| SURECOLOR SC-V7000 | 1835908 | 290 | Capsule filter |
| SURECOLOR SC-V7000 | 1835909 | 300 | CR Encoder |
| SURECOLOR SC-V7000 | 1835910 | 310 | 180 CR Scale |
| SURECOLOR SC-V7000 | 1835913 | 340 | Servo motor (Y Axis) |
| SURECOLOR SC-V7000 | 1835914 | 350 | Fuji motor (X Axis) |
| SURECOLOR SC-V7000 | 1835915 | 360 | Fuji servo Y Axis (400W) |
| SURECOLOR SC-V7000 | 1835916 | 370 | Fuji servo X Axis (750W) |
| SURECOLOR SC-V7000 | 1835919 | 400 | Micro switch |
| SURECOLOR SC-V7000 | 1835920 | 410 | Static Removal Device |
| SURECOLOR SC-V7000 | 1835921 | 420 | Indicator button (Green) |
| SURECOLOR SC-V7000 | 1841460 | 430 | Power Off button |
| SURECOLOR SC-V7000 | 1835922 | 440 | Emergency stop button |
| SURECOLOR SC-V7000 | 1835923 | 450 | Switch power supply (48V) |
| SURECOLOR SC-V7000 | 1835924 | 460 | Switch power supply (24V) |
| SURECOLOR SC-V7000 | 1835925 | 470 | High pressure fan |
| SURECOLOR SC-V7000 | 1835926 | 480 | Fuse (20A) |
| SURECOLOR SC-V7000 | 1835927 | 490 | Fuse (15A) |
| SURECOLOR SC-V7000 | 1835928 | 500 | Fuse (10A) |
| SURECOLOR SC-V7000 | 1835929 | 510 | Fuse (5A) |
| SURECOLOR SC-V7000 | 1835930 | 520 | U Photo Sensor |
| SURECOLOR SC-V7000 | 1835931 | 530 | Circuit Breaker |
| SURECOLOR SC-V7000 | 1835932 | 540 | Contactor |
| SURECOLOR SC-V7000 | 1835933 | 550 | Contactor |
| SURECOLOR SC-V7000 | 1835934 | 560 | Thermal overload relay |
| SURECOLOR SC-V7000 | 1835935 | 570 | TeSys VARIO |
| SURECOLOR SC-V7000 | 1835936 | 580 | VARIO - front and black rotary handle |
| SURECOLOR SC-V7000 | 1836006 | 590 | VARIO shaft extension |
| SURECOLOR SC-V7000 | 1835937 | 600 | SATA data cable |
| SURECOLOR SC-V7000 | 1841469 | 610 | Solid State Timer |
| SURECOLOR SC-V7000 | 1835939 | 620 | Photoelectric sensor transmitter Assy |
| SURECOLOR SC-V7000 | 1835940 | 630 | Photoelectric sensor receiving end Assy |
| SURECOLOR SC-V7000 | 1835907 | 640 | Signal towers Assy |
| SURECOLOR SC-V7000 | 1841461 | 650 | Solid state timer |
| SURECOLOR SC-V7000 | 1835942 | 660 | EMI exchange filter |
| SURECOLOR SC-V7000 | 1835943 | 670 | EMI exchange filter (20A) |
| SURECOLOR SC-V7000 | 1835944 | 680 | DC filter (20A) |
| SURECOLOR SC-V7000 | 1835945 | 690 | Step driver (Z Axis) |
| SURECOLOR SC-V7000 | 1835946 | 700 | Step motor (Z Axis) |
| SURECOLOR SC-V7000 | 1866056 | 710 | L1440-8H MAINBORAD |
| SURECOLOR SC-V7000 | 1835948 | 720 | L1440-8H Head board (CR Top) |
| SURECOLOR SC-V7000 | 1841470 | 730 | L 1440-2H Print Head Driver Board Set |
| SURECOLOR SC-V7000 | 1835950 | 740 | L1440 Extention board |
| SURECOLOR SC-V7000 | 1836007 | 750 | Nozzle drive plate thermal plate |
| SURECOLOR SC-V7000 | 1835951 | 760 | Cooling fan Assy |
| SURECOLOR SC-V7000 | 1835953 | 780 | Height measurement Assy |
| SURECOLOR SC-V7000 | 1835954 | 790 | Silicon Heater Assy |
| SURECOLOR SC-V7000 | 1841462 | 800 | Head Heaters Assy |
| SURECOLOR SC-V7000 | 1836009 | 810 | Micro switch |
| SURECOLOR SC-V7000 | 1836010 | 820 | Flexible Flat Cable(FFC) |
| SURECOLOR SC-V7000 | 1836011 | 830 | X axis drag chain |
| SURECOLOR SC-V7000 | 1836012 | 840 | Y axis drag chain |
| SURECOLOR SC-V7000 | 1835955 | 860 | Foot cup |
| SURECOLOR SC-V7000 | 1835956 | 870 | Located pin |
| SURECOLOR SC-V7000 | 1835957 | 880 | Timing belt (Y Axis) |
| SURECOLOR SC-V7000 | 1835958 | 890 | Waste Ink Tank Drawer Assy |
| SURECOLOR SC-V7000 | 1835959 | 910 | Timing belt |
| SURECOLOR SC-V7000 | 1835960 | 920 | Gantry Driven Wheel Assy |
| SURECOLOR SC-V7000 | 1842788 | 930 | Timing belt (X Axis) |
| SURECOLOR SC-V7000 | 1835962 | 940 | All-plastic coupling |
| SURECOLOR SC-V7000 | 1835963 | 950 | All-plastic coupling |
| SURECOLOR SC-V7000 | 1835964 | 960 | Z Axis Screw Assy |
| SURECOLOR SC-V7000 | 1835965 | 970 | Coupling |
| SURECOLOR SC-V7000 | 1835966 | 980 | X Axis Pulley Assy |
| SURECOLOR SC-V7000 | 1835967 | 990 | X Motor Pulley |
| SURECOLOR SC-V7000 | 1835968 | 1000 | Motor pulley |
| SURECOLOR SC-V7000 | 1835969 | 1010 | CR Slider |
| SURECOLOR SC-V7000 | 1841463 | 1020 | Drag Chain Bracket Top Rubber |
| SURECOLOR SC-V7000 | 1836013 | 1030 | Printhead Grounding plate |
| SURECOLOR SC-V7000 | 1836014 | 1040 | CR Scale Spring |
| SURECOLOR SC-V7000 | 1835970 | 1050 | LED Lamp Cooling Tube |
| SURECOLOR SC-V7000 | 1835971 | 1060 | Cable bear UV LED Curing lamp Assy |
| SURECOLOR SC-V7000 | 1848649 | 1070 | UV LED curing light cable Left |
| SURECOLOR SC-V7000 | 1836020 | 1080 | U type pipe clamp |
| SURECOLOR SC-V7000 | 1836019 | 1090 | Peristaltic Pump Inner Tube |
| SURECOLOR SC-V7000 | 1836017 | 1110 | Pipe clamp |
| SURECOLOR SC-V7000 | 1848650 | 1120 | UV LED curing light cable Right |
| SURECOLOR SC-V7000 | 1836032 | 1130 | Ink s UV lamp |
| SURECOLOR SC-V7000 | 1836033 | 1140 | Varnish UV lamp |
| SURECOLOR SC-V7000 | 1836023 | 1150 | Printhead mounting screws |
| SURECOLOR SC-V7000 | 1836026 | 1170 | Waste tank Ball valve |
| SURECOLOR SC-V7000 | 1835972 | 1180 | Colort Damper Ink Tube Assy |
| SURECOLOR SC-V7000 | 1836027 | 1190 | White Damper Ink Tube Assy |
| SURECOLOR SC-V7000 | 1841471 | 1200 | Y Axis Pulley |
| SURECOLOR SC-V7000 | 1835938 | 1210 | Optical Fiber Cable Assy |
| SURECOLOR SC-V7000 | 1857508 | 1220 | Carriage Cover Hinge |
| SURECOLOR SC-V7000 | 1862880 | 1230 | Fan Dust Filter |
| SURECOLOR SC-V7000 | 1836038 | 2000 | Solid state relay (40A) |
| SURECOLOR SC-V7000 | 1836039 | 2001 | Solid state relay (60A) |
| SURECOLOR SC-V7000 | 1836050 | 2002 | Display board |
| SURECOLOR SC-V7000 | 1836035 | 2003 | Digital dimmer board |
| SURECOLOR SC-V7000 | 1836041 | 2004 | Filter |
| SURECOLOR SC-V7000 | 1836040 | 2005 | Switching power supply (24V) |
| SURECOLOR SC-V7000 | 1836036 | 2006 | Big power supply (color ink) |
| SURECOLOR SC-V7000 | 1836037 | 2007 | Small power supply (varnish) |
| SURECOLOR SC-V7000 | 1836043 | 2008 | Power board set |
| SURECOLOR SC-V7000 | 1836047 | 2009 | Flow switch |
| SURECOLOR SC-V7000 | 1836045 | 2010 | Water pump (24V) |
| SURECOLOR SC-V7000 | 1844691 | 2011 | Cooling Assy, UV Ink Curing Unit, ASP |
| SURECOLOR SC-V7000 | 1836049 | 2012 | Main control board |
| SURECOLOR SC-V7000 | 1836044 | 2013 | Running capacitor (water pump) |
| SURECOLOR SC-V7000 | 1836052 | 2014 | Room temperature probe |
| SURECOLOR SC-V7000 | 1836051 | 2015 | Water temperature probe |
| SURECOLOR SC-V7000 | 1837912 | NON FIG | CLEANING LIQUID 22 SEC (SC-V7000) |
| SURECOLOR SC-V7000 | 1711209 | NON FIG | Coolant for L-6034VW |
| SURECOLOR SC-V7000 | 1851812 | NON FIG | Door Lock Key |
| SURECOLOR SC-V7000 | 1836029 | NON FIG | Dust free cloth |
| SURECOLOR SC-V7000 | 1836024 | NON FIG | Eight-position Diverter Valve Wrench |
| SURECOLOR SC-V7000 | 1630189 | NON FIG | FITTING,FTLL230-2 |
| SURECOLOR SC-V7000 | 1848622 | NON FIG | Fuji Cable (X) |
| SURECOLOR SC-V7000 | 1835918 | NON FIG | Fuji encoder cable and plug |
| SURECOLOR SC-V7000 | 1835917 | NON FIG | Fuji motor cable and plug (Y Axis) |
| SURECOLOR SC-V7000 | 1836003 | NON FIG | Ink tube (5M) |
| SURECOLOR SC-V7000 | 1835912 | NON FIG | Intermediate relay (12V) |
| SURECOLOR SC-V7000 | 1836042 | NON FIG | Isolation switch |
| SURECOLOR SC-V7000 | 1835952 | NON FIG | K-type Thermocouple Assy |
| SURECOLOR SC-V7000 | 1841468 | NON FIG | Negative Pressure Ink Discharge Plug |
| SURECOLOR SC-V7000 | 1836022 | NON FIG | Quick Connector |
| SURECOLOR SC-V7000 | 1835911 | NON FIG | Relay |
| SURECOLOR SC-V7000 | 1836028 | NON FIG | Syringe |
| SURECOLOR SC-V7000 | 1842789 | NON FIG | Syringe Jig Assy |
| SURECOLOR SC-V7000 | 1836030 | NON FIG | USB3.0 data cable |
| SURECOLOR SC-V7000 | 1848621 | NON FIG | UV lamp signal line assembly |
| SURECOLOR SC-V7000 | 1875933 | NON FIG | Ventilation label |
| SURECOLOR SC-V7000 | 1841465 | NON FIG | X Axis Left Limit Line Assembly |
| SURECOLOR SC-V7000 | 1841464 | NON FIG | X Axis Right Limit Line Assembly |
| SURECOLOR SC-V7000 | 1841467 | NON FIG | Z Axis Lower Limit Line Assembly |
| SURECOLOR SC-V7000 | 1841466 | NON FIG | Z Axis Upper Limit Line Assembly |
| Manual Name | SureColor V7000 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 2.95 MB |
| Pages | 15 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON SureColor V7000 Series |
