Parts Manual for EPSON WF-100 PX-S05B PX-S05W

In stock
SKU
EP-WF100-PM
$1.20
Compare
Email

Share it:

  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing

Share it:

Links
$1.20



*****   The following content is not included in the PDF manual   *****

*****   Please refer to the details ONLINE   ******

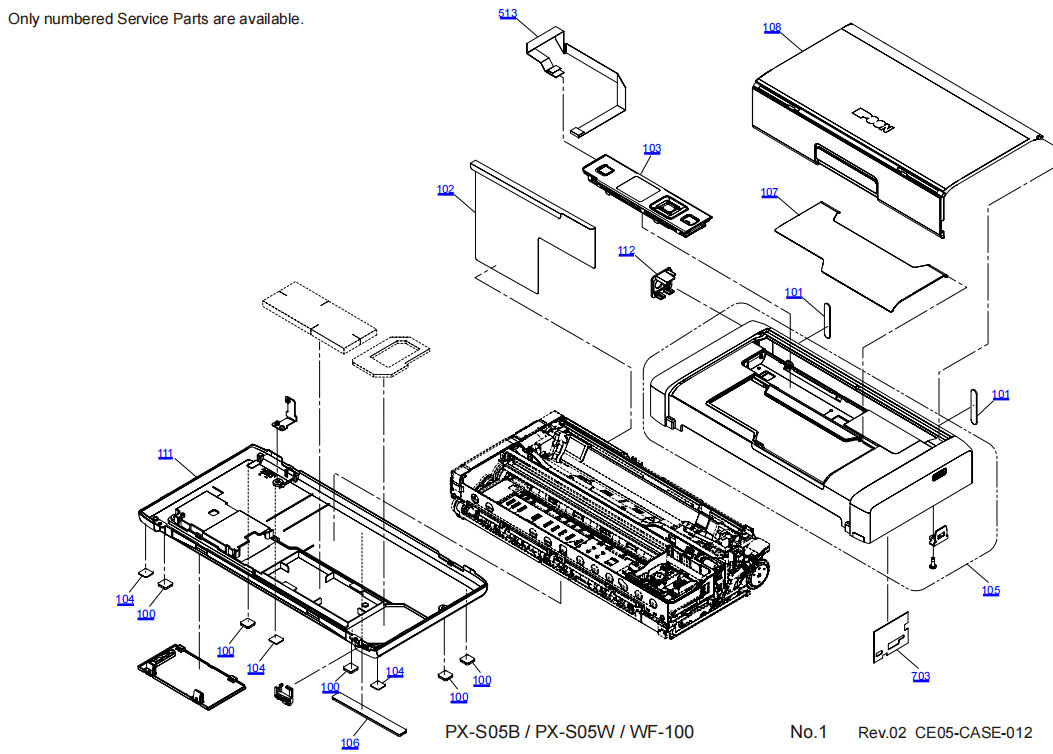

ArticleReferenceDescription

1649927100FOOT,11x11x2,H32,BLACK
1632967101FOOT,42.4x7.6
1632968102SHEET,COVER,CONNECTOR
1635824103PANEL ASSY.,CE05,EPPI
1645184104SHEET,HOUSING,LOWER,BLACK
1647920105HOUSING UPPER ASSY.,,CE05,EPPI,ASP
1686785105HOUSING UPPER ASSY.,,CE05,EPPI,ASP
1649928106FOOT,11x91.8x2,H32,BLACK
1632855107COVER,UPPER
1638071108PAPER SUPPORT ASSY.,CE05,EPPI
1690474108PAPER SUPPORT ASSY.,CE05,EPPI
1632851111HOUSING,LOWER
1632853112COVER,USB
2162172200BOARD ASSY.,MAIN
2191332200BOARD ASSY.,MAIN
2169341350Ersetzt durch: 2171393
2171393350WIRELESS LAN USB MODULE
2159045351HARNESS
2162174353BOARD ASSY.,DRIVER
2159043354HARNESS
1632969355SHEET,MAIN BOARD
2159044356HARNESS
1647921357BATTERY ASSY.,CE05,EPPI,ASP
1705923357BATTERY ASSY.,CE05,EPPI,ASP
1740350357BATTERY ASSY.,CE05,EPPI,ASP
1755040357BATTERY ASSY.,CE05,EPPI,ASP
1865174357BATTERY ASSY.,CE05,EPPI,ASP
1805552357Ersetzt durch: 1865174
2169257500PRINTER MECHANISM ASP,CE05,EPPI
2171878500PRINTER MECHANISM ASP,CE05,EPPI
1632315501SCALE,CR
1632378502LEVER,DETECTOR,PE
2143464503PHOTO INTERRUPTER
2162532504BOARD ASSY.,ENCODER,ASF
2154772505BOARD ASSY.,SENSOR
1657003506INK SYSTEM ASSY.,CE05,EPPI,ASP
1679974506INK SYSTEM ASSY.,CE05,EPPI,ASP
2164200507BOARD ASSY.,SNS
2164261508CABLE,DETERCTOR,INVERSION
2162518509BOARD ASSY.,ENCODER,PF
1645837510SHEET,COVER,FFC
2159047512HARNESS
2159046513HARNESS
2162533514CABLE,ENCODER,ASF
2162531515CABLE,DETECTOR,ASF
2162509516CABLE,HEAD
2162510517CABLE,ENCODER
2162511518CABLE,CRCM
2162519519CABLE,DETECTOR,ENCODER,PF
2162186520BOARD ASSY.,SNS
FA20010700Ersetzt durch: FA20030
FA20030700Ersetzt durch: FA20050
FA20050700Ersetzt durch: FA20060
FA20060700PRINT HEAD,ID611V-1
FA20070700PRINT HEAD,ID611V-1
1632377701POROUS PAD,PAPER GUIDE,LOWER
1646568702POROUS PAD,IS,LOWER,B
1646780703POROUS PAD,IS,C
1740173703POROUS PAD,IS,C
1646778704POROUS PAD,IS,B
1710962704POROUS PAD,IS,B

More Information
Manual Name WF-100 PX-S05B PX-S05W Parts Manual
Format PDF
PDF Archive 2.17M
Pages 4
Type SERVICE or PARTS MANUAL
Compatible Model Epson WF-100 Series
