Parts Manual for EPSON WF-3010 WF-3011 WF-3012 PX-205

In stock

SKU

EP-WF3010-PM

$1.10

***** The following content is not included in the PDF manual *****

***** Please refer to the details ONLINE ******

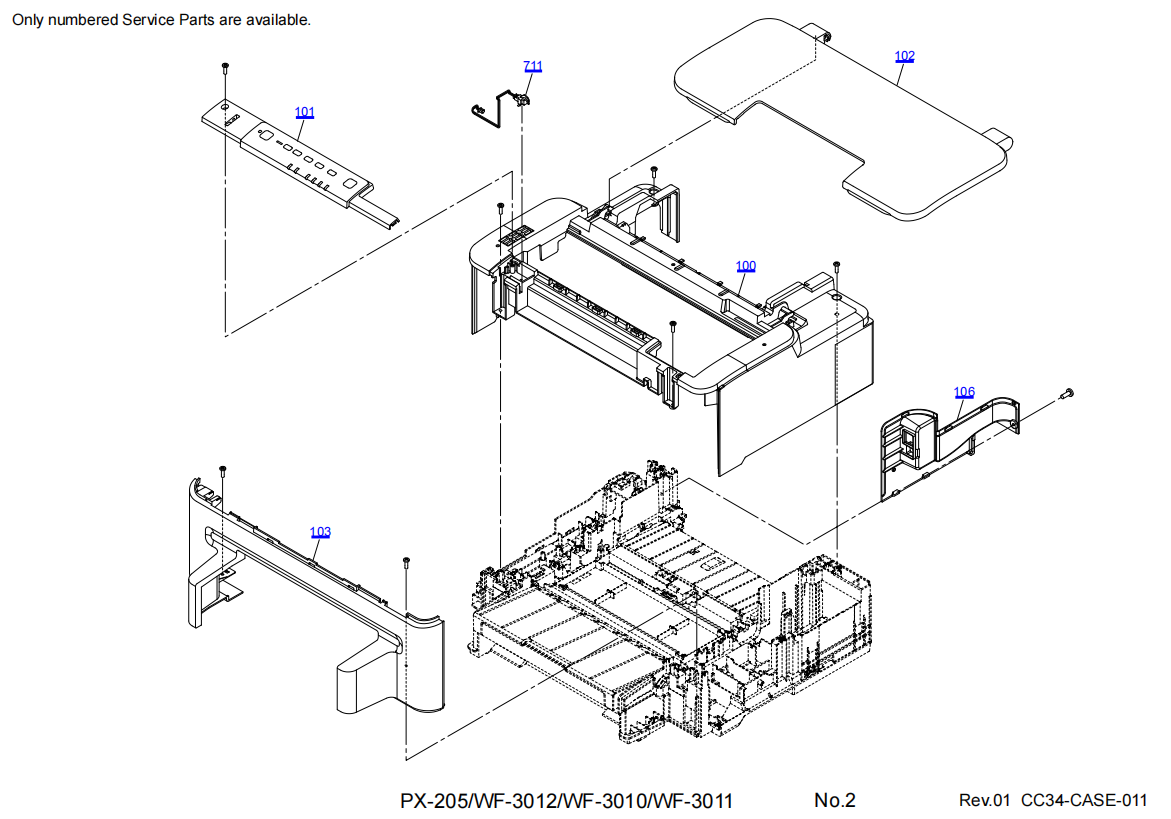

Article	Reference	Description

1585399	100	HOUSING,UPPER ASSY.,CC34,B,SEC
1585403	101	PANEL ASSY.,CC34,EURO,SEC
1576089	102	COVER,PRINTER,B
1576088	103	HOUSING,FRONT,B
1576090	106	COVER,USB,B
1595248	200	MAINBOARD ASSY.,CC34,B,SEC
1758692	200	MAINBOARD ASSY.,CC34,B,SEC
2152527	202	WIRELESS LAN USB MODULE
2167573	202	WIRELESS LAN USB MODULE
2144036	300	BOARD ASSY.,POWER SUPPLY
2128430	400	POWER CABLE
2147825	500	PRINTER MECANISM,UNIT,CC34,ASP
1585405	501	CR ASSY.,CC34,SEC
1585420	502	INK SYSTEM ASSY.,SEC
1522627	503	POROUS PAD,PAPER GUIDE,LOWER
1528839	504	PICK UP ASSY.,IEI
1528881	506	HOLDER CAM ASSY.,IEI
1540006	507	STOPPER,HOLDER,IDLE,ROLLER,PF,B
1540328	507	STOPPER,HOLDER,IDLE,ROLLER,PF,C
1540329	507	STOPPER,HOLDER,IDLE,ROLLER,PF,D
1585389	508	STACKER ASSY.,B,SEC
1585407	509	MSF ASSY.CC34,B,SEC
1436642	510	CLAMP,TUBE
F190000	700	Ersetzt durch: F190010
1529529	701	HOLDER BOARD,ASSY.,IEI
1430589	702	HINGE,COVER,CARTRIDGE
1585397	703	DUPLEX ASSY.,CC33,B,SEC
1616731	703	DUPLEX ASSY.,CC33,B,SEC
1522663	704	SCALE,CR
1522662	705	EXTENSION SPRING,SCALE,CR
1588124	706	CASSETTE ASSY.,CC33,B,ASP
1522654	707	COVER,CARTRIDGE
2129450	708	BOARD ASSY.,ENCORDER,PF
2188536	708	BOARD ASSY.,ENCORDER,PF
2143968	710	BOARD ASSY.,SUB
2090717	711	LEAF SENSOR
