Parts Manual for EPSON WF-5190 WF-5191
In stock
SKU
EP-WF5190-PM
$1.10
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
Parts Manual for EPSON WF-5190 WF-5191
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******

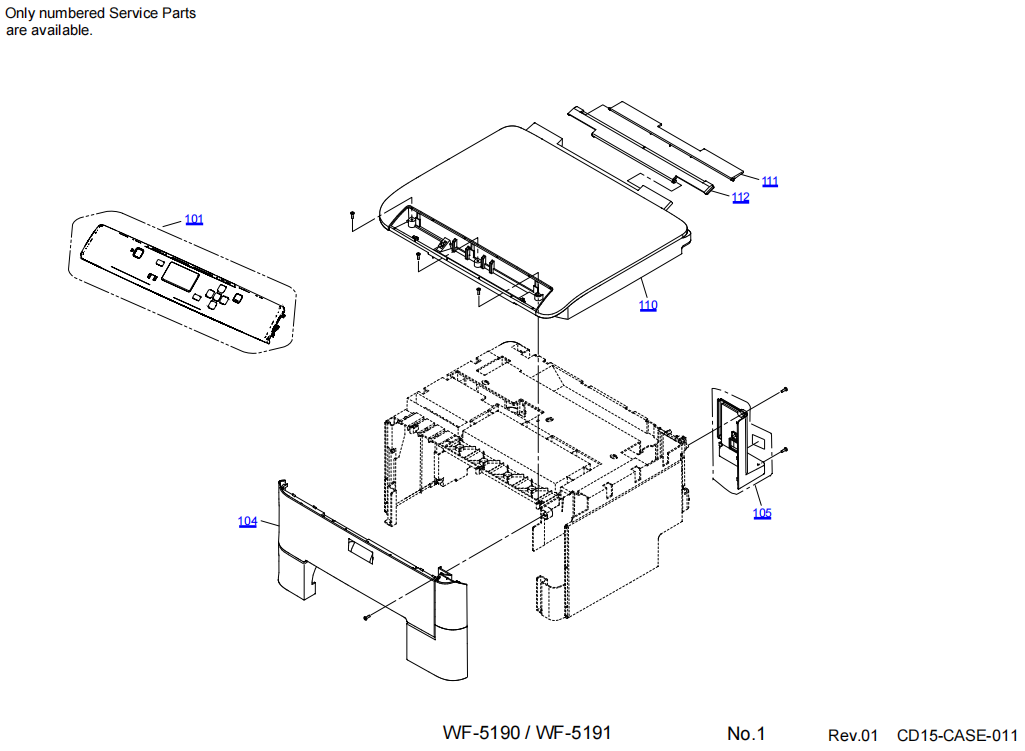

| Article | Reference | Description |
| 1606971 | 100 | HOUSING,MIDDLE |
| 1636760 | 101 | PANEL ASSY.,EAI/EURO/EAL,B,SEC |
| 1616603 | 104 | HOUSING FRONT ASSY.,C,SEC |
| 1745035 | 104 | HOUSING FRONT ASSY.,C,SEC |
| 1805246 | 104 | HOUSING FRONT ASSY.,C,SEC |
| 1624235 | 105 | COVER,USB ASSY.,ASP |
| 1550189 | 106 | HOUSING,REAR |
| 1550186 | 107 | PAPER SUPPORT |
| 1645979 | 110 | HOUSING,UPPER,E |
| 1550447 | 111 | COVER,ASF,REAR |
| 1550448 | 112 | COVER,ASF,FRONT |
| 2165480 | 200 | BOARD ASSY.,MAIN |
| 2188182 | 200 | BOARD ASSY.,MAIN |
| 2193835 | 200 | BOARD ASSY.,MAIN |
| 2171673 | 202 | WIRELESS LAN USB MODULE |
| 2150739 | 207 | HARNESS MAIN-PNL, |
| 2193698 | 207 | HARNESS |
| 2164441 | 211 | FLASH MEMORY OTHERS,4 GBIT, |
| 2190824 | 211 | FLASH MEMORY |
| 2177533 | 300 | BOARD ASSY.,POWER SUPPLY |
| 1671402 | 500 | FRAME,BASE ASSY.,B,ASP |
| 1822901 | 500 | FRAME,BASE ASSY.,B,ASP |
| 1615454 | 501 | CARRIAGE ASSY.,SEC |
| 1549854 | 502 | SCALE,CR |
| 1549855 | 503 | EXTENSION SPRING,2.03 |
| 2136746 | 504 | CONNECTOR,DRAWER,MAIN |
| 1522498 | 511 | SHAFT,DRIVE,PICK UP |
| 2060220 | 512 | CONNECTOR,CARTRIDGE,A |
| 2143968 | 513 | BOARD ASSY.,SUB |
| 2136631 | 514 | CABLE,BOARD ASSY.,IC |
| 2194031 | 514 | CABLE,BOARD ASSY.,IC |
| 1471944 | 531 | ROLLER,DRIVEN |
| 1471945 | 532 | SHAFT,ROLLER,DRIVEN |
| FA16141 | 700 | Ersetzt durch: FA16221 |
| FA16181 | 700 | PRINT HEAD,ID8570-14,ASP ORDER TO SEC WITH MOQ=12PCS, S |
| FA16221 | 700 | PRINT HEAD,ID8570-14,ASP ORDER TO SEC WITH MOQ=12PCS, S |
| 1615727 | 701 | I/S MENTENANCE ASSY.,SEC |
| 1799788 | 701 | I/S MENTENANCE ASSY.,SEC |
| 1706207 | 704 | I/S SUPPLY ASSY.,B,ASP |
| 1822890 | 704 | I/S SUPPLY ASSY.,B,ASP |
| 1607033 | 705 | SEAL,JOINT,HEAD |
| 1766374 | 705 | SEAL,JOINT,HEAD |
| 1615726 | 706 | I/S PUMP ASSY.,SEC |
| 1799787 | 706 | I/S PUMP ASSY.,SEC |
| 1615714 | 708 | R-ASF ASSY.,SEC |
| 1799727 | 708 | R-ASF ASSY.,SEC |
| 1554431 | 709 | GUIDE RASF UPPER ASSY. |
| 1615448 | 711 | ROLLER,EJ ASSY.,SEC |
| 1554412 | 712 | PICK UP ASSY.,SEC |
| 1797654 | 712 | PICK UP ASSY.,SEC |
| 1554415 | 713 | STOPPER PAPER ASSY.,SEC |
| 2136669 | 714 | BOARD ASSY.,ENCORDER,PF |
| 2136637 | 715 | CABLE,ENCODER,PF |
| 2152712 | 716 | CABLE,CSIC |
| 2186794 | 716 | CABLE,CSIC |
| 2194556 | 716 | CABLE,CSIC |
| 1615715 | 717 | CABLE,HEAD ASSY.,SEC |
| 1799786 | 717 | CABLE,HEAD ASSY.,SEC |
| 1616298 | 718 | STACKER ASSY.,SEC |
| 1624464 | 719 | CASSETTE ASSY.,C,SEC |
| 1636228 | 720 | DUPLEX ASSY.,E,SEC |
| 1721589 | 720 | DUPLEX ASSY.,E,SEC |
| 1797737 | 720 | DUPLEX ASSY.,E,SEC |
| 1610750 | 732 | GROUNDING PLATE,PS,C |
| 1552602 | 733 | CLUTCH SPRING,ASSY |
| 1550615 | 734 | SPUR GEAR,30.4 |
| Manual Name | WF-5190 WF-5191 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 4.70M |
| Pages | 4 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson WF-5100 Series |
