Parts Manual for EPSON WF-7010 WF-7011 WF-7012 WF-7015 WF-7018 PX-1200
In stock
SKU
EP-WF7010-PM
$1.10
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******

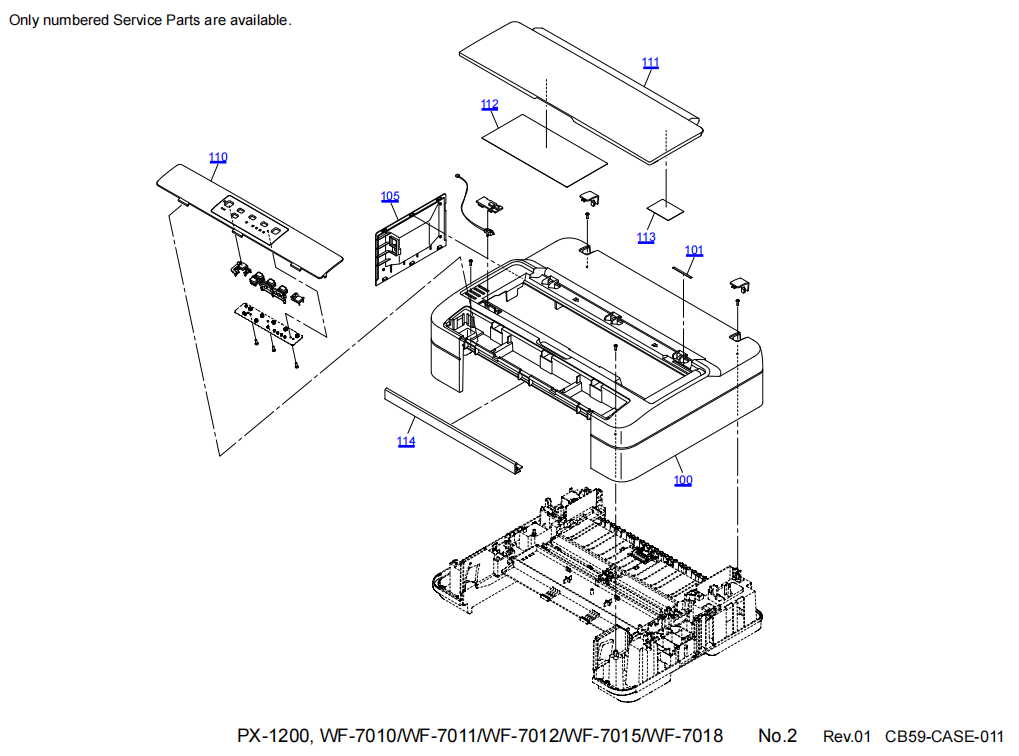

| Article | Reference | Description |
| 1551443 | 100 | HOUSING,UPPER |
| 1490041 | 101 | LABEL,POSITION,CARTRIDGE |
| 1551446 | 105 | COVER,USB |
| 1551449 | 110 | HOUSING,PANEL,WiFi |
| 1551444 | 111 | COVER,PRINTER |
| 1554044 | 112 | LABEL,INSTRUCTION |
| 1551800 | 113 | LABEL,GENUINE INK,T130,T129,N/EMD |
| 1551447 | 114 | DECORATION PLATE |
| 2159008 | 200 | BOARD ASSY.,MAIN |
| 2136438 | 200 | Ersetzt durch: 2159008 |
| 2135226 | 203 | Ersetzt durch: 2169212 |
| 2169212 | 203 | WIRELESS LAN USB MODULE |
| 2136441 | 204 | BOARD ASSY.,PANEL |
| 2136446 | 205 | Ersetzt durch: 2142391 |
| 2142391 | 205 | HARNESS |
| 1566086 | 300 | Ersetzt durch: 1594820 |
| 1594820 | 300 | Ersetzt durch: 1619733 |
| 1619733 | 300 | POWER SUPPLY ASSY.,B,SEC |
| 2119140 | 400 | POWER CABLE |
| 1577550 | 500 | FRAME BASE ASSY.,P2,CB59,C,ASP |
| 1557359 | 501 | 1ST BIN PIC UP ASSY.,SEC |
| 1805332 | 501 | 1ST BIN PIC UP ASSY.,SEC |
| 1549805 | 502 | POROUS PAD,PAPER GUIDE,LOWER |
| 1564266 | 503 | POROUS PAD, PAPER GUIDE FRONT,ASP,IEI |
| 2129450 | 504 | BOARD ASSY.,ENCORDER,PF |
| 2188536 | 504 | BOARD ASSY.,ENCORDER,PF |
| 1557470 | 505 | Ersetzt durch: 1630129 |
| 1630129 | 505 | PAPER STOPPER ASSY.,SEC |
| 1805335 | 505 | PAPER STOPPER ASSY.,SEC |
| 1586221 | 600 | 2ND BIN BASE ASSY.,CB59,SEC |
| 1630132 | 600 | 2ND BIN BASE ASSY.,CB59,SEC |
| 1566179 | 600 | Ersetzt durch: 1586221 |
| 1560608 | 601 | 2ND BIN PICK UP ASSY.,SEC |
| F190020 | 700 | PRINT HEAD |
| 1558178 | 701 | CR ASSY.,SEC |
| 1805336 | 701 | CR ASSY.,SEC |
| 1488541 | 702 | COVER,CABLE,HEAD,INNER |
| 1430589 | 703 | HINGE,COVER,CARTRIDGE |
| 1558175 | 704 | HOLDET BOARD ASSY.,SEC |
| 1549898 | 705 | GUIDE PLATE,CR |
| 1557468 | 706 | HOLDER CAM ASSY.,SEC |
| 1805330 | 706 | HOLDER CAM ASSY.,SEC |
| 1559405 | 707 | INK SYSTEM ASSY.,IEI |
| 1549955 | 708 | SCALE,CR |
| 1551429 | 709 | TORSION SPRING,7.13 |
| 2136592 | 711 | CABLE,ENCODER,PF |
| 1557358 | 712 | POROUS PAD INK ASSY.,SEC |
| 1805328 | 712 | POROUS PAD INK ASSY.,SEC |
| 1557357 | 713 | DUP ASSY.,SEC |
| 1805313 | 713 | DUP ASSY.,SEC |
| 1557371 | 714 | STACKER,ASSY.,SEC |
| 1576999 | 715 | 1ST BIN CASSETTE ASSY.,C,SEC |
| 1805348 | 715 | 1ST BIN CASSETTE ASSY.,C,SEC |
| 1576998 | 716 | 2ND BIN CASSETTE ASSY.,C,SEC |
| 1805347 | 716 | 2ND BIN CASSETTE ASSY.,C,SEC |
| 2136616 | 720 | MOTOR ASSY.,CR |
| 1563231 | 721 | PAPER GUIDE UPPER CENTER ASSY.(P2),SEC |
| 1563232 | 722 | PAPER GUIDE UPPER LEFT ASSY.,SEC |
| 1563233 | 723 | PAPER GUIDE UPPER RIGHT ASSY.,SEC |
| 1805339 | 723 | PAPER GUIDE UPPER RIGHT ASSY.,SEC |
| Manual Name | WF-7010 WF-7011 WF-7012 WF-7015 WF-7018 PX-1200 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 4.80M |
| Pages | 5 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson WF-7000 Series |
