Parts Manual for EPSON WF-8090 PX-S7050PS

In stock
SKU
EP-WF8090-PM
$1.20
Compare
Email

Share it:

  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing

Share it:

Links
$1.20



*****   The following content is not included in the PDF manual   *****

*****   Please refer to the details ONLINE   ******

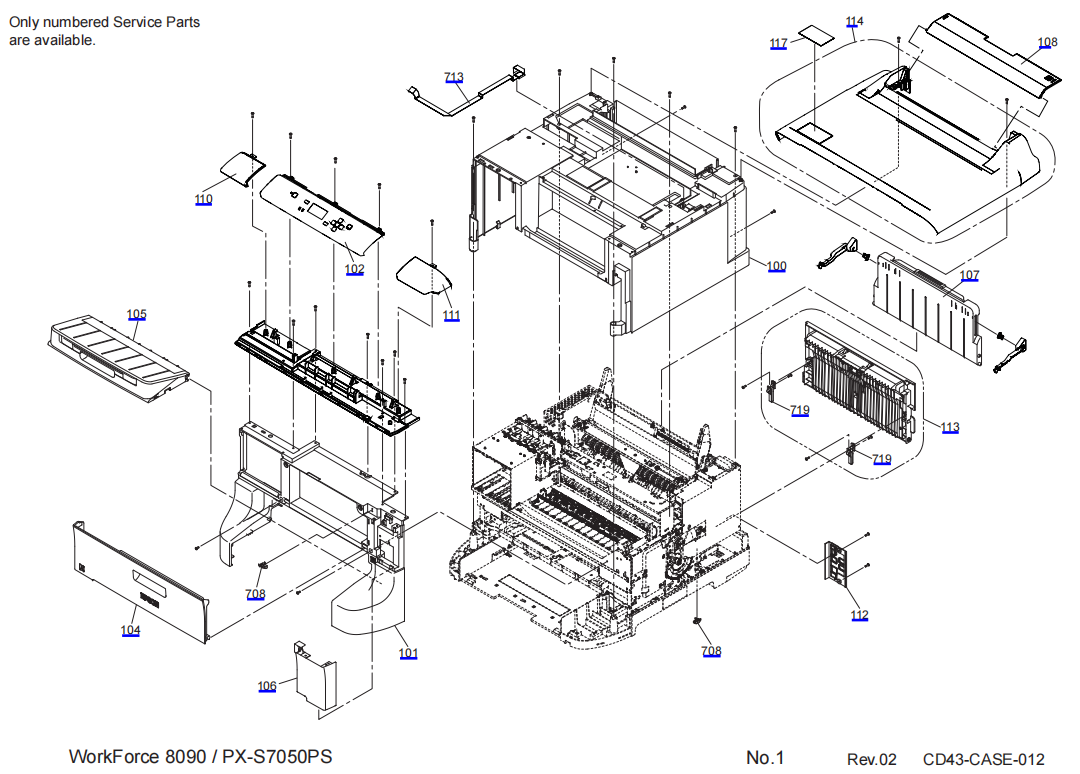

ArticleReferenceDescription

2167238100HOUSING,MIDDLE,ASSY.,C,ASP
1708673100HOUSING,MIDDLE,ASSY.,C,ASP
2162558101HOUSING,FRONT,ASSY.,ASP
1617310102PANEL UNIT CD43,B,SEC
1617455104COVER,FRONT,ASSY.,SEC
1617464105STACKER,ASSY.,SEC
1609570106COVER,FRONT,RIGHT
1617743107PAPER SUPPORT,MIDDLE,ASSY.,SEC
1609575108COVER,ASF
1609569110HOUSING,PANEL,LEFT
1609568111HOUSING,PANEL,RIGHT
2162571112COVER,CONNECTOR,ASSY.,ASP
1654020113COVER,REAR,ASF,ASSY.,B,SEC
2164507114HOUSING,UPPER,ASSY.,ASP
1616506117LABEL,FUNCTION
2167660200BOARD ASSY.,MAIN
2193536200BOARD ASSY.,MAIN
2193500200BOARD ASSY.,MAIN 6753I,CD43 STANDARD
2138684203CR CONTACT MODULE
2171673204WIRELESS LAN USB MODULE
2121674205HARNESS
2164602208FLASH MEMORY
2197796208FLASH MEMORY OTHERS,4 GBIT,
2150763300BOARD ASSY.,POWER SUPPLY
2177527300BOARD ASSY.,POWER SUPPLY
2180263300BOARD ASSY.,POWER SUPPLY
2180265300BOARD ASSY.,POWER SUPPLY
2187937300BOARD ASSY.,POWER SUPPLY
2191176300BOARD ASSY.,POWER SUPPLY
2173096500PRINTER MECHANISM,CD42,F,ASP
2174827500PRINTER MECHANISM,CD42,F,ASP
1617403501PW SHUTTER,ASSY.,SEC
1617400502MOTOR,APG,ASSY.,SEC
1617406503DRIVE APG,ASSY.,SEC
1617335504BOARD ASSY.,ENCODER,PF,ASSY.,SEC
1767608504BOARD ASSY.,ENCODER,PF,ASSY.,SEC
1608786505TIMING BELT,PF
1617333506DRIVE,PF ASSY.,SEC
2166074507DRIVE ASF,ASSY.,B,ASP
1617185508IS DECOMP PUMP.,ASSY.,SEC
2155090509MOTOR ASSY.,CR
1617380510MTB JOINT,ASSY.,SEC
1840441510MTB JOINT,ASSY.,SEC
1670405511HOLDER,STARWHEEL ASSY.B,SEC
1617388512CARRIAGE,ASSY.,SEC
2162797513SCALE,CR,ASSY.,ASP
1608899515LEVER,BLOCK,COVER,REAR,ASF
1617373516IS PUMP,ASSY.,SEC
1840442516IS PUMP,ASSY.,SEC
1617382517INK SYSTEM,ASSY.,SEC
1678674517INK SYSTEM,ASSY.,SEC
1608790519STOPPER,TENSION,PF
2143464520PHOTO INTERRUPTER
2109393521BOARD ASSY.,DETECTOR,PW,B
1614492524POROUS PAD,CR
1653940525SUPPLY,ROLLER,ASSY.,C,SEC
1608902526LEVER,DETECTOR,PAPER GUIDE,REAR,ASF
1682249526LEVER,DETECTOR,PAPER GUIDE,REAR,ASF
FA16111700Ersetzt durch: FA16191
FA16191700PRINT HEAD,ID8570-11,ASP ORDER TO SEC WITH MOQ=12PCS, S
FA16192700PRINT HEAD,ID8570-11,ASP ORDER TO SEC WITH MOQ=12PCS, S
FA16231700PRINT HEAD,ID8570-11,ASP ORDER TO SEC WITH MOQ=12PCS, S
2169129701REAR,ASF,ASSY.,C,ASP
1746761701REAR,ASF,ASSY.,C,ASP
1614447702SHEET,GUIDE,ROOLER,RASF
1617440705LEVER,CLUTCH,ASSY.,SEC
1617439706CLUTCH,LD,ASSY.,SEC
1607033707SEAL,JOINT,HEAD
1766374707SEAL,JOINT,HEAD
2090717708LEAF SENSOR
1610019709POROUS PAD,INK,HOLDER
1617397710HEAD FFC,ASSY.,SEC
2091058711BOARD ASSY.,PE
2150778713HARNESS
2169508715CASSETTE,ASSY.,D,SEC,ASP
1617459716EDGE GUIDE,REAR,CASSETTE,ASSY.,SEC
2169165718DUP ASSY.,ASP
1705890718DUP ASSY.,ASP
1712233718DUP ASSY.,ASP
1600316719BELT,STOPPER,MSF
1674848720INK SUPPLY,,K,ASSY.,SEC
1686183720INK SUPPLY,,K,ASSY.,SEC
1702362720INK SUPPLY,,K,ASSY.,SEC
1703860720INK SUPPLY,,K,ASSY.,SEC
1705521720INK SUPPLY,,K,ASSY.,SEC
1653945722HOLDER,RETARD,CASSETTE,ASSY.,B,SEC
1815008722HOLDER,RETARD,CASSETTE,ASSY.,B,SEC
1614431763LABEL,PAPER SIZE,CASSETTE

More Information
Manual Name WF-8090 PX-S7050PS Parts Manual
Format PDF
PDF Archive 8.05M
Pages 5
Type SERVICE or PARTS MANUAL
Compatible Model Epson WF-8000 Series
