EPSON WF-C5710 PX-M884F Parts Manual
In stock
SKU
EP-WFC5710-PM
$1.10
| Manual Name | EPSON WF-C5710 PX-M884F Parts Manual |
|---|---|
| Format | |
| PDF Archive | 5.03M |
| Pages | 4 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson WF-C5700 Series |

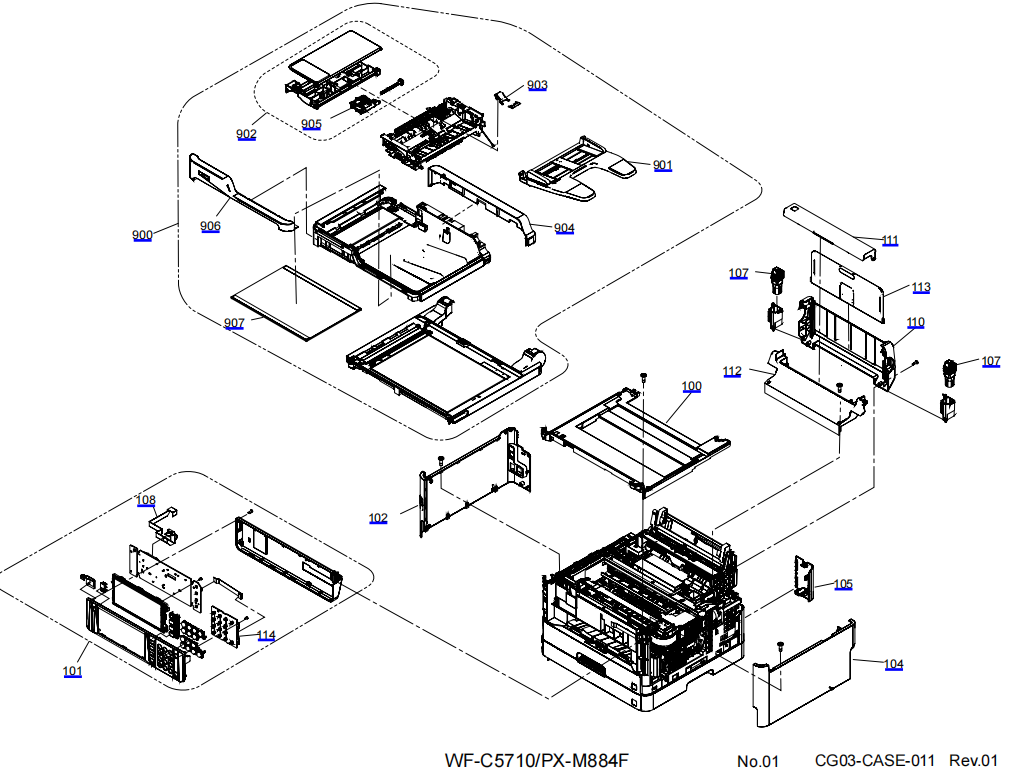

****** The following content is not included in the PDF manual, please use it online ******
| Article | Reference | Description |
| 1729293 | 100 | HOUSING,UPPER |
| 1747608 | 101 | PANEL ASSY.,CG03,ASP |
| 1821735 | 101 | PANEL ASSY.,CG03,ASP |
| 1753854 | 102 | HOUSING,LEFT,C |
| 1729295 | 104 | HOUSING,RIGHT |
| 1748198 | 105 | COVER,INK EJECT,ASP |
| 1821730 | 105 | COVER,INK EJECT,ASP |
| 1732762 | 107 | HINGE,ASSY.,SC |
| 2184131 | 108 | HARNESS |
| 1729296 | 110 | HOUSING,REAR |
| 1762714 | 110 | HOUSING,REAR |
| 1753879 | 111 | COVER,ASF,CG03,B,ASP |
| 1822795 | 111 | COVER,ASF,CG03,B,ASP |
| 1757016 | 112 | COVER,ASF,FRONT,C |
| 1762718 | 112 | COVER,ASF,FRONT,C |
| 1729262 | 113 | PAPER SUPPORT |
| 2183610 | 114 | BOARD ASSY.,PANEL |
| 2192259 | 200 | BOARD ASSY.,MAIN 7112C,CG03 STANDARD |
| 2196685 | 200 | BOARD ASSY.,MAIN 7112C,CG03 STANDARD |
| 2214313 | 200 | BOARD ASSY.,MAIN |
| 1765218 | 300 | POWER SUPPLY,E.ASSY,IEI |
| 2192161 | 352 | WIRELESS LAN USB MODULE |
| 1736243 | 353 | FAX ASSY.,B,IEI |
| 1796860 | 353 | FAX ASSY.,B,IEI |
| 2184121 | 355 | BOARD ASSY.,SUB |
| 1720151 | 501 | BOARD ASSY.,SUB,CF24,ASP |
| 1824012 | 501 | BOARD ASSY.,SUB,CF24,ASP |
| 1720135 | 502 | SCALE,PF,ASP |
| 1824006 | 502 | SCALE,PF,ASP |
| 1736257 | 503 | HOUSING,PICKUP,ASSY |
| 1758322 | 504 | HOLDER,RETARD,ES,B,ASSY |
| 1775149 | 504 | HOLDER,RETARD,ES,B,ASSY |
| 1807457 | 504 | HOLDER,RETARD,ES,B,ASSY |
| 1823059 | 504 | HOLDER,RETARD,ES,B,ASSY |
| 1732730 | 505 | EXTENSION SPRING,1.379,RETARD |
| 1756698 | 506 | PE ASSY.,IEI |
| 1747592 | 507 | CARRIAGE ASSY.,ASP |
| 1768777 | 507 | CARRIAGE ASSY.,ASP |
| 1821725 | 507 | CARRIAGE ASSY.,ASP |
| 1747600 | 508 | INK SYSTEM,ASSY.,ASP |
| 1821733 | 508 | INK SYSTEM,ASSY.,ASP |
| 1832105 | 508 | INK SYSTEM,ASSY.,ASP |
| 1872679 | 508 | INK SYSTEM,ASSY.,ASP |
| 1706495 | 509 | POROUS PAD,CAP,LOWER |
| 1736293 | 510 | FFC HEAD,ASSY.,IEI |
| 1733463 | 511 | C.B.(S-P1)SCREW,2.5X18,F/ZN-3C |
| 1607571 | 512 | HOLDER, PULLEY, DRIVEN,ASSY.,IEI |
| 2189741 | 513 | MOTOR,ASSY.,CR |
| 1736295 | 514 | HOLDER LEVER PE ASSY |
| 1736296 | 515 | HOLDER,STAR,WHEEL,ASSY.,IEI |
| 1736294 | 516 | PAPER,GUIDE,UPPER,ASSY.,IEI |
| 1522628 | 517 | EXTENSION SPRING,11.11 |
| 1761385 | 518 | HOLDER CONECTOR,ASSY.B,IEI |
| 1283832 | 519 | H.N.-1,2.5,F/ZN-3C |
| 1747624 | 520 | TUBE,ASSY.,SUPPLY,ASP |
| 1801375 | 520 | TUBE,ASSY.,SUPPLY,ASP |
| 1821742 | 520 | TUBE,ASSY.,SUPPLY,ASP |
| 1766374 | 521 | SEAL,JOINT,HEAD,WASH |
| 1706511 | 522 | POROUS PAD,HOUSING,LOWER |
| 1736260 | 524 | HOUSING,ASF,ASSY.B,IEI |
| FA39001 | 700 | PRINT HEAD,IG238V,ASP ORDER TO SEC WITH MOQ=12PCS, S |
| 1736230 | 701 | STACKER ASSY |
| 1854634 | 701 | STACKER ASSY |
| 1736222 | 702 | SOLENOID,RASF,ASSY |
| 1747596 | 703 | DUPLEX,ASSY.,ASP |
| 1770440 | 703 | DUPLEX,ASSY.,ASP |
| 1821731 | 703 | DUPLEX,ASSY.,ASP |
| 1860147 | 703 | DUPLEX,ASSY.,ASP |
| 1604764 | 704 | SCALE,CR |
| 1743906 | 705 | SPEAKER ASSY.,IEI |
| 1736241 | 707 | SCREW HEAD ASSY |
| 1747620 | 708 | RASF,ASSY.,ASP |
| 1821754 | 708 | RASF,ASSY.,ASP |
| 2184133 | 709 | HARNESS |
| 2150699 | 710 | LEAF SENSOR,P599 |
| 1607106 | 712 | C.B.EP-TITE SCREW,2.6X17(B=14),F/ZN-3C |
| 1706723 | 714 | TORTION SPRING,13.11 |
| 1747593 | 719 | CASSETTE,1st BIN,ASSY.,ASP |
| 1821726 | 719 | CASSETTE,1ST BIN,ASSY.,ASP |
| 1860901 | 719 | CASSETTE,1ST BIN,ASSY.,ASP |
| 1762617 | 750 | RIPS UNIT, ASSY.,C,ASP |
| 1736249 | 751 | IS DECOMP PUMP,ASSY.,IEI |
| 1757212 | 752 | HOUSING,RIPS ASSY.,B,ASP |
| 1821732 | 752 | HOUSING,RIPS ASSY.,B,ASP |
| 1757210 | 753 | COVER,FRONT,RIPS,B,ASP |
| 1821729 | 753 | COVER,FRONT,RIPS,B,ASP |
| 1748195 | 754 | TRAY,INK PACK,CL,ASP |
| 1768783 | 754 | TRAY,INK PACK,CL,ASP |
| 1748194 | 755 | TRAY,INK PACK,BK,ASP |
| 1768782 | 755 | TRAY,INK PACK,BK,ASP |
| 1732472 | 756 | POROUS PAD,INK,DETECTION,E |
| 2185165 | 757 | CABLE,CSIC,BK |
| 2194002 | 757 | CABLE,CSIC,BK |
| 2185166 | 758 | CABLE,CSIC,Y |
| 2185167 | 759 | CABLE,CSIC,M |
| 2194004 | 759 | CABLE,CSIC,M |
| 2185168 | 760 | CABLE,CSIC,C |
| 2194005 | 760 | CABLE,CSIC,C |
| 1729929 | 762 | GUIDE,TUBE,INK HOLDER,UPPER |
| 1792908 | 762 | GUIDE,TUBE,INK HOLDER,UPPER |
| 1729378 | 763 | LOCK,LEVER,RIPS |
| 1762700 | 763 | LOCK,LEVER,RIPS |
| 2176012 | 764 | SENSOR,TEMPERATURE,HUMIDITY,HSHCAA106F |
| 1575274 | 765 | FOOT |
| 2185169 | 766 | CABLE,CRCM |
| 1731428 | 767 | POROUS PAD,INK,DETECTION,D |
| 2176802 | 768 | BOARD ASSY.,SNS |
| 2172422 | 769 | CR CONTACT MODULE |
| 1747589 | 900 | ADF/SCN UNIT,ASP |
| 1770434 | 900 | ADF/SCN UNIT,ASP |
| 1821724 | 900 | ADF/SCN UNIT,ASP |
| 1736283 | 901 | DOCUMENT SUPPORT ADF ASSY |
| 1748196 | 902 | COVER,ADF ASSY.,ASP |
| 1770437 | 902 | COVER,ADF ASSY.,ASP |
| 1821727 | 902 | COVER,ADF ASSY.,ASP |
| 1555114 | 903 | PAD,ADF ASSY.,SEC |
| 1729431 | 904 | COVER,REAR,ADF |
| 1762709 | 904 | COVER,REAR,ADF |
| 1736282 | 905 | FRAME LD ASSY |
| 1748192 | 906 | COVER,FRONT,ADF,ASP |
| 1821728 | 906 | COVER,FRONT,ADF,ASP |
| 1550947 | 907 | MAT,COVER,DOCUMENT |
