EPSON WorkForce WF-3720 WF-3723 PX-M680F Parts Manual
In stock
SKU
EP-WF3720-PM
$1.20
| Manual Name | EPSON WorkForce WF-8010 8090 8510 8590 Service Manual |
|---|---|
| Format | |
| PDF Archive | 2.42M |
| Pages | 3 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson Workforce WF-3720 |

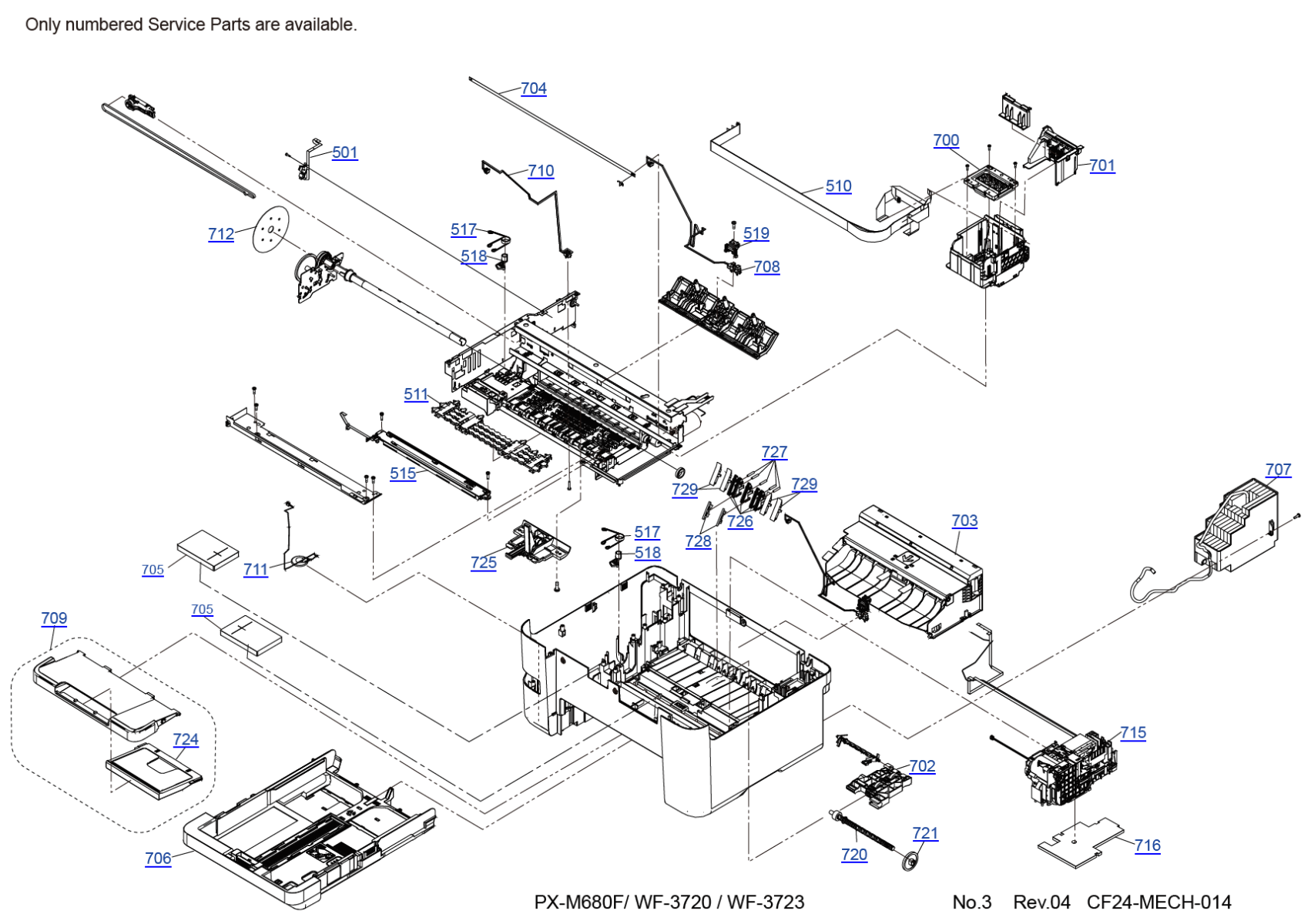

EPSON WorkForce WF-3720 WF-3723 PX-M680F Parts Manual
****** The following content is not included in the PDF manual, please use it online ******
| WORKFORCE PRO WF-3720 | 1704465 | 100 | HOUSING,UPPER |
| WORKFORCE PRO WF-3720 | 1730608 | 101 | PANEL ASSY.,B,ASP |
| WORKFORCE PRO WF-3720 | 1823921 | 101 | PANEL ASSY.,B,ASP |
| WORKFORCE PRO WF-3720 | 1720142 | 103 | HOLDER,COVER,HOST,USB,ASSY.,ASP |
| WORKFORCE PRO WF-3720 | 1824008 | 103 | HOLDER,COVER,HOST,USB,ASSY.,ASP |
| WORKFORCE PRO WF-3720 | 1704480 | 105 | COVER,INK EJECT |
| WORKFORCE PRO WF-3720 | 1704477 | 106 | COVER,IF |
| WORKFORCE PRO WF-3720 | 1709352 | 107 | HINGE ASSY.,IEI |
| WORKFORCE PRO WF-3720 | 1870232 | 107 | HINGE ASSY.,IEI |
| WORKFORCE PRO WF-3720 | 2192655 | 200 | BOARD ASSY.,MAIN |
| WORKFORCE PRO WF-3720 | 2193662 | 300 | BOADR ASSY.,POWER SUPPLY |
| WORKFORCE PRO WF-3720 | 2192161 | 352 | WIRELESS LAN USB MODULE |
| WORKFORCE PRO WF-3720 | 1796945 | 353 | FAX ASSY,E.CF24,IEI |
| WORKFORCE PRO WF-3720 | 1872009 | 353 | FAX ASSY,E.CF24,IEI |
| WORKFORCE PRO WF-3720 | 1720151 | 501 | BOARD ASSY.,SUB,CF24,ASP |
| WORKFORCE PRO WF-3720 | 1824012 | 501 | BOARD ASSY.,SUB,CF24,ASP |
| WORKFORCE PRO WF-3720 | 1708956 | 510 | FFC HEAD,ASSY.,IEI |
| WORKFORCE PRO WF-3720 | 1651388 | 511 | POROUS PAD,PAPER GUIDE,FRONT,ASP |
| WORKFORCE PRO WF-3720 | 1708951 | 515 | HOLDER,STARWHEEL,ASSY.,IEI |
| WORKFORCE PRO WF-3720 | 1525329 | 517 | TORSION SPRING,43.1 |
| WORKFORCE PRO WF-3720 | 1704432 | 518 | LOCK,CASSETTE |
| WORKFORCE PRO WF-3720 | 1633452 | 519 | PAD,LEVER,PE,ASSY.,SEC |
| WORKFORCE PRO WF-3720 | 1709346 | 701 | HOLDER,BOARD,ASSY.,IEI |
| WORKFORCE PRO WF-3720 | 1709364 | 702 | PICK UP 1st Bin ASSY.,IEI |
| WORKFORCE PRO WF-3720 | 1720149 | 703 | DUPLEX,ASSY.,CF24,ASP |
| WORKFORCE PRO WF-3720 | 1824011 | 703 | DUPLEX,ASSY.,CF24,ASP |
| WORKFORCE PRO WF-3720 | 1604764 | 704 | SCALE,CR |
| WORKFORCE PRO WF-3720 | 1631076 | 705 | POROUS PAD,PAPER GUIDE,LOWER |
| WORKFORCE PRO WF-3720 | 1805914 | 706 | CASSETTE ASSY.,CF24,B,ASP |
| WORKFORCE PRO WF-3720 | 1709354 | 707 | INK EJECT,ASSY.,IEI |
| WORKFORCE PRO WF-3720 | 1709266 | 708 | PE ASSY.,IEI |
| WORKFORCE PRO WF-3720 | 1709322 | 709 | STACKER ASSY.,IEI |
| WORKFORCE PRO WF-3720 | 1872019 | 709 | STACKER ASSY.,IEI |
| WORKFORCE PRO WF-3720 | 2180224 | 710 | DETECTOR,ASSY.,CASSETTE |
| WORKFORCE PRO WF-3720 | 1709357 | 711 | SPEAKER ASSY.,IEI |
| WORKFORCE PRO WF-3720 | 1720135 | 712 | SCALE,PF,ASP |
| WORKFORCE PRO WF-3720 | 1824006 | 712 | SCALE,PF,ASP |
| WORKFORCE PRO WF-3720 | 1720145 | 715 | INK SYSTEM,ASSY.,ASP |
| WORKFORCE PRO WF-3720 | 1824009 | 715 | INK SYSTEM,ASSY.,ASP |
| WORKFORCE PRO WF-3720 | 1832190 | 715 | INK SYSTEM,ASSY.,ASP |
| WORKFORCE PRO WF-3720 | 1872883 | 715 | INK SYSTEM,ASSY.,ASP |
| WORKFORCE PRO WF-3720 | 1706495 | 716 | POROUS PAD,CAP,LOWER |
| WORKFORCE PRO WF-3720 | 1522498 | 720 | SHAFT,DRIVE,PICK UP |
| WORKFORCE PRO WF-3720 | 1522625 | 721 | SPUR GEAR,32 |
| WORKFORCE PRO WF-3720 | 1740775 | 724 | STACKER,SUPPROT, FRONT ASSY.,ASP |
| WORKFORCE PRO WF-3720 | 1824022 | 724 | STACKER,SUPPROT, FRONT ASSY.,ASP |
| WORKFORCE PRO WF-3720 | 1709358 | 725 | BASE STOPPER ASSY.,IEI |
| WORKFORCE PRO WF-3720 | 1522511 | 726 | PAPER GUIDE,CASSETTE,MOVABLE |
| WORKFORCE PRO WF-3720 | 1522512 | 727 | COMPRESSION SPRING,0.1599 |
| WORKFORCE PRO WF-3720 | 1524615 | 728 | PAPER GUIDE,CASSETTE,CENTER |
| WORKFORCE PRO WF-3720 | 1522485 | 729 | PAPER GUIDE,CASSETTE |
| WORKFORCE PRO WF-3720 | 1763291 | 800 | |
| WORKFORCE PRO WF-3720 | 1824014 | 800 | SCANNER,UNIT,CF24,B,ASP |
| WORKFORCE PRO WF-3720 | 1766502 | 900 | ADF UNIT,CF24,B,ASP |
| WORKFORCE PRO WF-3720 | 1824016 | 900 | ADF UNIT,CF24,B,ASP |
| WORKFORCE PRO WF-3720 | 1845825 | 900 | ADF UNIT,CF24,B,ASP |
| WORKFORCE PRO WF-3720 | 1766504 | 902 | COVER,ADF,ASSY.,B,ASP |
| WORKFORCE PRO WF-3720 | 1782345 | 903 | PAD,ADF ASSY.,SEC |
| WORKFORCE PRO WF-3720 | 1704461 | 904 | COVER,REAR,ADF |
| WORKFORCE PRO WF-3720 | 1704460 | 906 | COVER,FRONT,ADF |
| WORKFORCE PRO WF-3720 | 1550947 | 907 | MAT,COVER,DOCUMENT |
