Parts Manual for Epson WorkForce WF-3820 3821 3823 3825
In stock
SKU
EP-WF3820-PM
$1.10
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
Parts Manual for Epson WorkForce WF-3820 3821 3823 3825
Epson WF-3820 WF-3821 WF-3823 WF-3825 Series
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******

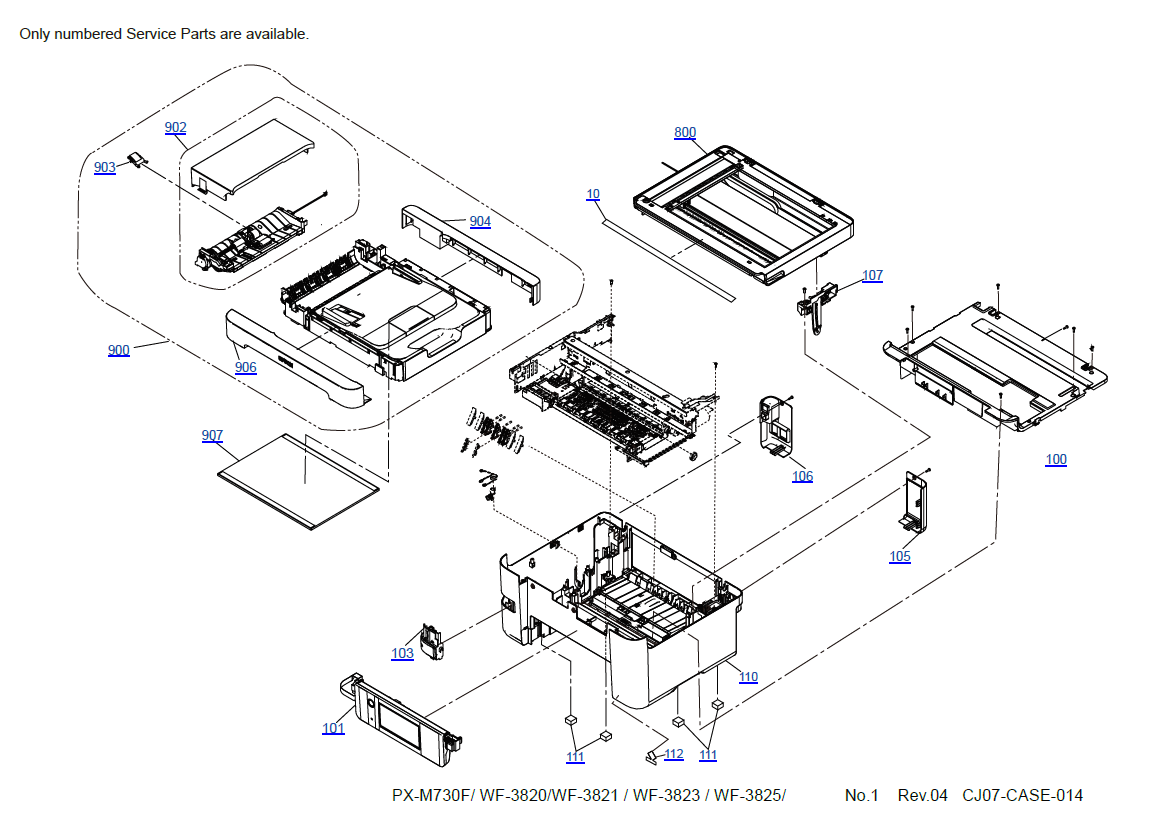

| 5143635 | 10 | PAD,SCANNER,COVER |
| 1826831 | 100 | HOUSING,UPPER,FD |
| 1859785 | 100 | HOUSING,UPPER,FD |
| 1872743 | 100 | HOUSING,UPPER,FD |
| 1843367 | 101 | PANEL ASSY, CJ07, NON EHC,IEI,ASP |
| 1824008 | 103 | HOLDER,COVER,HOST,USB,ASSY,IEI,ASP |
| 1704500 | 105 | COVER,INK EJECT |
| 1704477 | 106 | COVER,IF |
| 1709352 | 107 | HINGE ASSY.,IEI |
| 1870232 | 107 | HINGE ASSY.,IEI |
| 1827695 | 110 | FRAME,BASE,FD |
| 1575274 | 111 | FOOT |
| 1845726 | 112 | LABEL,PrecisionCore,F2 |
| 2207153 | 200 | BOARD ASSY.,MAIN |
| 2212450 | 200 | BOARD ASSY.,MAIN |
| 2193662 | 300 | BOADR ASSY.,POWER SUPPLY |
| 2207228 | 352 | WIRELESS LAN USB MODULE |
| 1843370 | 353 | FAX ASSY, CJ07, NON EHC,IEI,ASP |
| 1824012 | 501 | BOARD ASSY.,SUB,CF24,IEI,ASP |
| 1832058 | 510 | FFC HEAD,ASSY.CJ07,IEI |
| 1651388 | 511 | POROUS PAD,PAPER GUIDE,FRONT,ASP |
| 1832054 | 515 | HOLDER,STARWHEEL,ASSY.CJ07,IEI |
| 1811590 | 517 | COMPRESSION SPRING,32 |
| 1717858 | 518 | LOCK,CASSETTE |
| 1633452 | 519 | PAD,LEVER,PE,ASSY.,SEC |
| 2192585 | 520 | CABLE,PIS,B |
| 2150454 | 521 | BOARD ASSY.,SUB |
| 2109393 | 522 | BOARD ASSY.,DETECTOR,PW,B |
| 1843357 | 701 | HOLDER BOARD ASSY,CJ07.,IEI,ASP |
| 1709364 | 702 | PICK UP 1st Bin ASSY.,IEI |
| 1843363 | 703 | DUPLEX ASSY, CJ07,NON EHC,IEI,ASP |
| 1604764 | 704 | SCALE,CR |
| 1631076 | 705 | POROUS PAD,PAPER GUIDE,LOWER |
| 1843365 | 706 | CASSETTE ASSY, NON EHC,IEI,ASP |
| 1843250 | 707 | POROUS PAD,CR,ASP |
| 1832073 | 708 | PE ASSY.,IEI |
| 1843373 | 709 | STACKER ASSY, NON EHC,IEI,ASP |
| 2180224 | 710 | DETECTOR,ASSY.,CASSETTE |
| 1709357 | 711 | SPEAKER ASSY.,IEI |
| 1824006 | 712 | SCALE,PF,IEI,ASP |
| 1843368 | 715 | INK SYSTEM ASSY,CJ07,IEI,ASP |
| 1872431 | 715 | INK SYSTEM ASSY,CJ07,IEI,ASP |
| 1706495 | 716 | POROUS PAD,CAP,LOWER |
| 1522498 | 720 | SHAFT,DRIVE,PICK UP |
| 1522625 | 721 | SPUR GEAR,32 |
| 1605190 | 722 | LABEL,POSITION,CARTRIDGE |
| 1845544 | 724 | STACKER,SUPPROT, FRONT ASSY,CJ05,IEI,ASP |
| 1709358 | 725 | BASE STOPPER ASSY.,IEI |
| 1522511 | 726 | PAPER GUIDE,CASSETTE,MOVABLE |
| 1522512 | 727 | COMPRESSION SPRING,0.1599 |
| 1524615 | 728 | PAPER GUIDE,CASSETTE,CENTER |
| 1522485 | 729 | PAPER GUIDE,CASSETTE |
| 1832068 | 730 | HOLDER CONECTOR,ASSY.,IEI |
| 1870231 | 730 | HOLDER CONECTOR,ASSY.,IEI |
| 1794087 | 731 | GUIDE,IC,B |
| 2150699 | 732 | LEAF SENSOR,P599 |
| 1817270 | 734 | POROUS PAD,HEAD,u2,C |
| 1709362 | 735 | SHAFT GEAR ROLLER,PICK UP ASSY.,IEI |
| 1843361 | 800 | SCANNER UNIT, NON EHC,IEI,ASSY,ASP |
| 1843359 | 900 | ADF UNIT,NON EHC,IEI,ASSY, ASP |
| 1824018 | 902 | COVER,ADF,ASSY,IEI,ASP |
| 1782345 | 903 | PAD,ADF ASSY.,SEC |
| 1827693 | 904 | COVER,REAR,ADF |
| 1704460 | 906 | COVER,FRONT,ADF |
| 1550947 | 907 | MAT,COVER,DOCUMENT |
| Manual Name | WorkForce WF-3820 3821 3823 3825 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 2.63M |
| Pages | 3 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson WF-3820 WF-3821 WF-3823 WF-3825 Series |
