Epson WorkForce WF-4830 WF-4833 WF-4834 WF-4838 Parts Manual
In stock
SKU
EP-WF4830-PM
$1.20
| Manual Name | Epson WorkForce WF-4830 WF-4833 WF-4834 WF-4838 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 3.75M |
| Pages | 4 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson WF-4830 WF-4833 WF-4834 WF-4838 Series |
Epson WorkForce WF-4830 WF-4833 WF-4834 WF-4838 Parts Manual

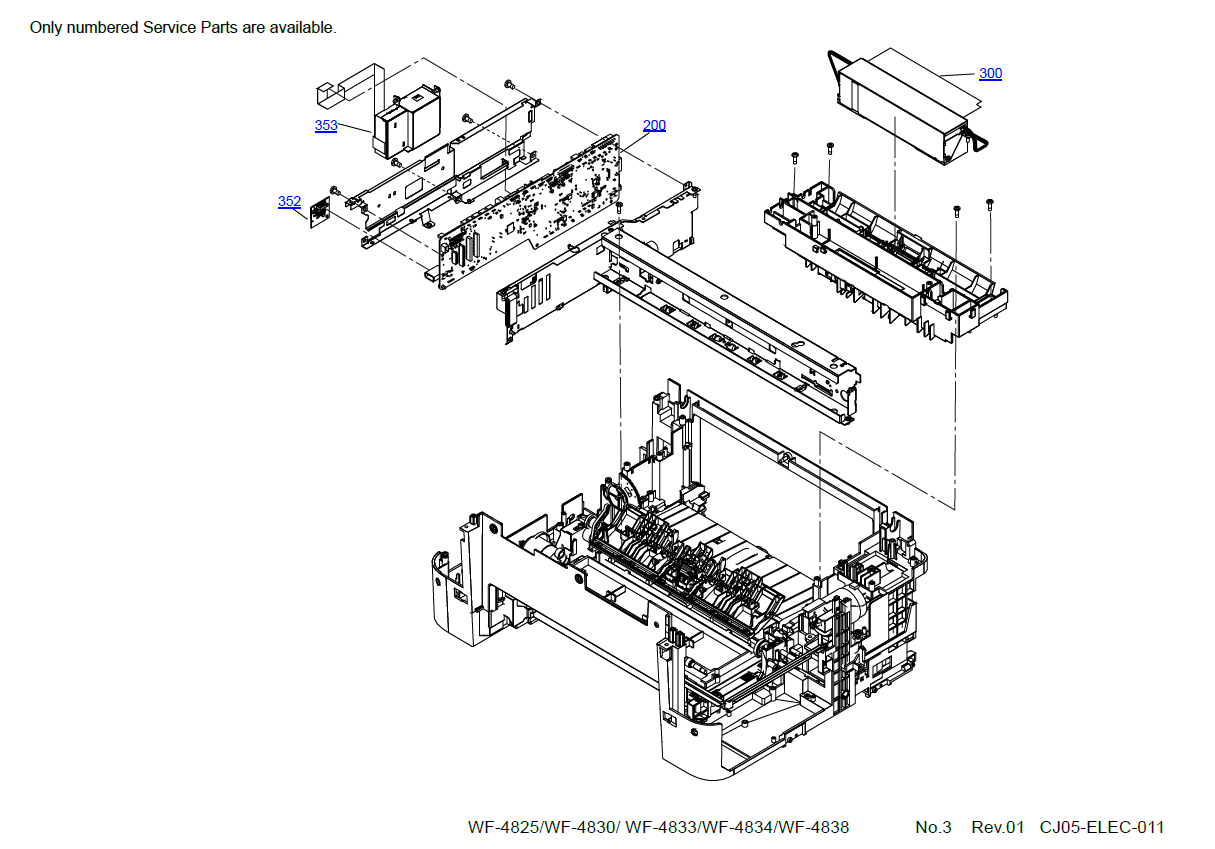

****** The following content is not included in the PDF manual, please use it online ******
| 5143635 | 10 | PAD,SCANNER,COVER |
| 1826829 | 100 | HOUSING,UPPER,FL |
| 1851938 | 101 | PANEL ASSY, CJ05,B,IEI,ASP |
| 1705564 | 102 | HOUSING,LEFT |
| 1824008 | 103 | HOLDER,COVER,HOST,USB,ASSY,IEI,ASP |
| 1705565 | 104 | HOUSING,RIGHT |
| 1705567 | 105 | COVER,INK EJECT |
| 1709352 | 107 | HINGE ASSY.,IEI |
| 1870232 | 107 | HINGE ASSY.,IEI |
| 1845726 | 112 | LABEL,PrecisionCore,F2 |
| 2207149 | 200 | BOARD ASSY.,MAIN |
| 2213440 | 200 | BOARD ASSY.,MAIN 7467A,STANDARD |
| 1832384 | 300 | POWER SUPPLY,ASSY,B,IEI |
| 2207228 | 352 | WIRELESS LAN USB MODULE |
| 1843394 | 353 | FAX ASSY,CJ05,IEI,ASP |
| 1824012 | 501 | BOARD ASSY.,SUB,CF24,IEI,ASP |
| 1824006 | 502 | SCALE,PF,IEI,ASP |
| 1631076 | 504 | POROUS PAD,PAPER GUIDE,LOWER |
| 1709357 | 505 | SPEAKER ASSY.,IEI |
| 1711555 | 506 | PE ASSY.,IEI |
| 1832068 | 507 | HOLDER CONECTOR,ASSY.,IEI |
| 1870231 | 507 | HOLDER CONECTOR,ASSY.,IEI |
| 2180228 | 509 | DETECTOR,ASSY.,CASSETTE |
| 1832527 | 510 | FFC HEAD,ASSY,CJ05,IEI |
| 1651388 | 511 | POROUS PAD,PAPER GUIDE,FRONT,ASP |
| 1832528 | 515 | HOLDER,STAR,WHEEL,ASSY CJ05.,IEI |
| 1706511 | 516 | POROUS PAD,HOUSING,LOWER |
| 1811590 | 517 | COMPRESSION SPRING,32 |
| 1717858 | 518 | LOCK,CASSETTE |
| 1633452 | 519 | PAD,LEVER,PE,ASSY.,SEC |
| 2109393 | 522 | BOARD ASSY.,DETECTOR,PW,B |
| 1709578 | 701 | HOLDER,BOARD,ASSY.,IEI |
| 1711560 | 702 | PICK UP ASSY.,IEI |
| 1843378 | 703 | DUPLEX ASSY,IEI,ASP |
| 1604764 | 704 | SCALE,CR |
| 1843390 | 706 | CASSETTE ASSY,CJ05,IEI,ASP |
| 1843250 | 707 | POROUS PAD,CR,ASP |
| 1843373 | 709 | STACKER ASSY, NON EHC,IEI,ASP |
| 1843391 | 713 | CASSETTE 2ND ASSY,CJ05,IEI,ASP |
| 1706723 | 714 | TORTION SPRING,13.11 |
| 1843393 | 715 | INK SYSTEM ASSY,CJ05,IEI,ASP |
| 1872403 | 715 | INK SYSTEM ASSY,CJ05,IEI,ASP |
| 1706495 | 716 | POROUS PAD,CAP,LOWER |
| 1545388 | 717 | PAPER GUIDE,STOPPER ASSY.,ASP |
| 1709362 | 718 | SHAFT GEAR ROLLER,PICK UP ASSY.,IEI |
| 1843396 | 719 | UPPER GUIDE,RASF,ASSY,ASP |
| 1522498 | 720 | SHAFT,DRIVE,PICK UP |
| 1843392 | 721 | FRAME BASE 2ND ASSY,CJ05,IEI,ASP |
| 1605190 | 722 | LABEL,POSITION,CARTRIDGE |
| 1845544 | 724 | STACKER,SUPPROT, FRONT ASSY,CJ05,IEI,ASP |
| 1538780 | 725 | STOPPER,PAPER ASSY. |
| 1522511 | 726 | PAPER GUIDE,CASSETTE,MOVABLE |
| 1522512 | 727 | COMPRESSION SPRING,0.1599 |
| 1524615 | 728 | PAPER GUIDE,CASSETTE,CENTER |
| 1522485 | 729 | PAPER GUIDE,CASSETTE |
| 2150699 | 730 | LEAF SENSOR,P599 |
| 1794087 | 731 | GUIDE,IC,B |
| 1735068 | 732 | PICK UP ASSY,B.,IEI |
| 1817270 | 734 | POROUS PAD,HEAD,u2,C |
| 1824068 | 800 | SCANNER UNIT,CF75,B,IEI,ASP |
| 1843386 | 900 | ADF UNIT,CJ05,IEI,ASSY,ASP |
| 1843388 | 901 | DOCUMENT SUPPORT ADF,CJ05,ASSY,ASP |
| 1843387 | 902 | COVER ADF,CJ05,ASSY,ASP |
| 1782345 | 903 | PAD,ADF ASSY.,SEC |
| 1705587 | 904 | COVER,REAR,ADF |
| 1705585 | 906 | COVER,FRONT,ADF |
| 1550947 | 907 | MAT,COVER,DOCUMENT |
