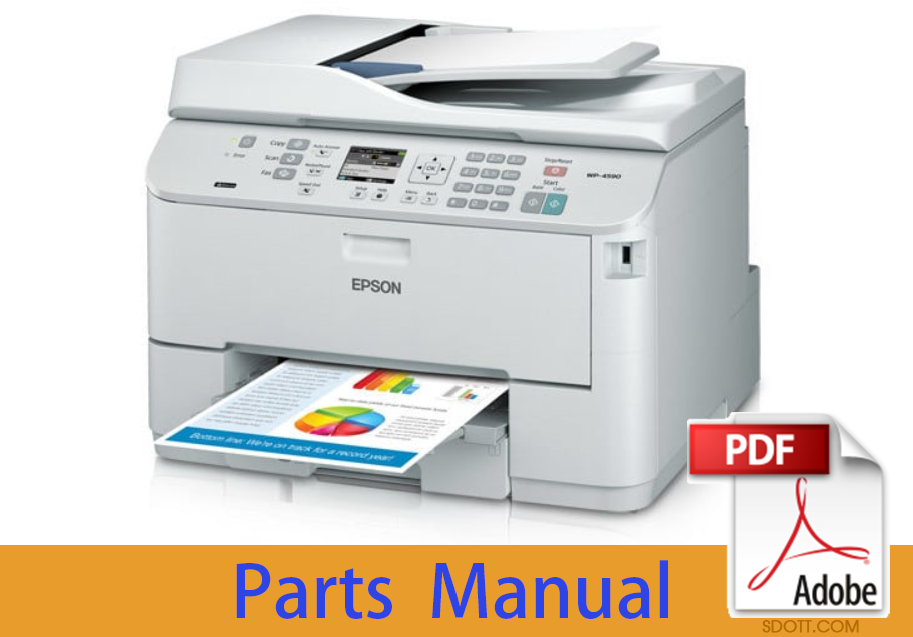

Parts Manual for EPSON WorkForce WP-4590 4592 4595
In stock
SKU
EP-WP4590-PM
$1.20
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
Parts manual for EPSON WorkForce WP-4590 4592 4595
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******

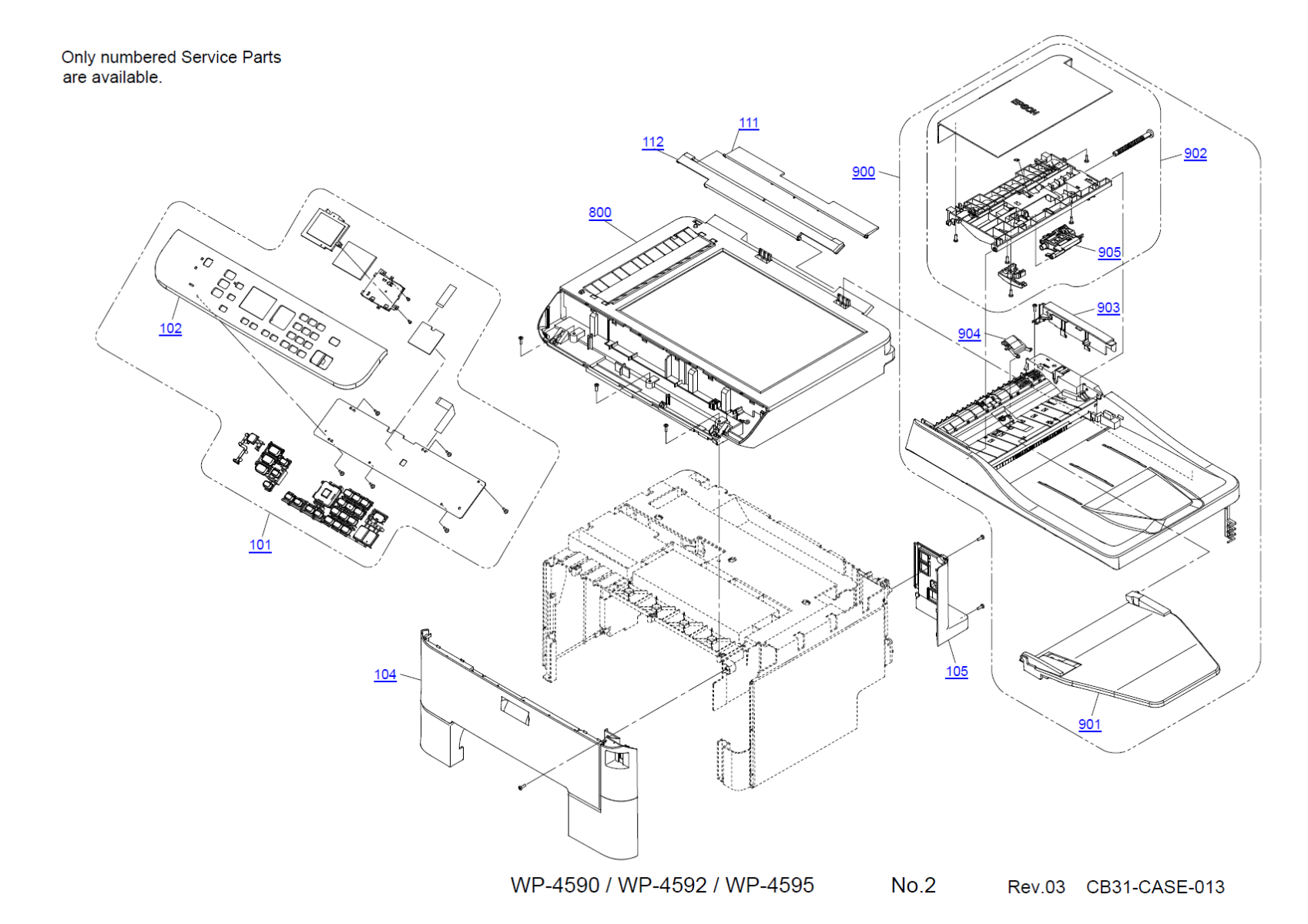

| 1550192 | 100 | HOUSING,MIDDLE |
| 1603947 | 100 | HOUSING,MIDDLE,C |
| 1626593 | 101 | PANEL ASSY.,EURO,C,SEC |
| 1572447 | 102 | HOUSING,PANEL,UPPER,W |
| 1554435 | 104 | HOUSING FRONT ASSY. |
| 1550188 | 105 | COVER,FAX |
| 1550189 | 106 | HOUSING,REAR |
| 1550186 | 107 | PAPER SUPPORT |
| 1550447 | 111 | COVER,ASF,REAR |
| 1550448 | 112 | COVER,ASF,FRONT |
| 2152771 | 200 | BOARD ASSY.,MAIN |
| 2136117 | 201 | BOARD ASSY.,INTERFACE |
| 2136135 | 204 | HARNESS |
| 2136119 | 205 | BOARD ASSY.,SUB 6490B,CB28/CB31/CB33/CB34/CC75 |
| 1619728 | 300 | POWER SUPPLY ASSY.,C,SEC |
| 1637417 | 300 | POWER SUPPLY ASSY.,E,SEC |
| 2119140 | 400 | POWER CABLE |
| 1671400 | 500 | FRAME,BASE ASSY.,K.,ASP |
| 1554421 | 501 | CARRIAGE ASSY. |
| 1549854 | 502 | SCALE,CR |
| 1549855 | 503 | EXTENSION SPRING,2.03 |
| 2136746 | 504 | CONNECTOR,DRAWER,MAIN |
| 1522498 | 511 | SHAFT,DRIVE,PICK UP |
| 1912951 | 511 | SHAFT,DRIVE,PICK UP |
| FA03050 | 700 | PRINT HEAD,IC819V-3 |
| 1567157 | 701 | I/S MENTENANCE UNIT,B,SEC |
| 1522624 | 702 | COMBINATION GEAR,16,10.4 |
| 1522623 | 703 | SPUR GEAR,11.2 |
| 1591126 | 704 | I/S SUPPLY UNIT,G,SEC |
| 1704894 | 704 | I/S SUPPLY UNIT,G,SEC |
| 1550138 | 705 | SEAL,HEAD |
| 1580288 | 706 | I/S PUMP UNIT,B,SEC |
| 1599924 | 706 | I/S PUMP UNIT,C,SEC |
| 1554432 | 708 | R-ASF ASSY. |
| 1554431 | 709 | GUIDE RASF UPPER ASSY. |
| 1564425 | 711 | ROLLER,EJ ASSY.,SEC |
| 1554412 | 712 | PICK UP ASSY. |
| 1797654 | 712 | PICK UP ASSY. |
| 1554415 | 713 | STOPPER PAPER ASSY. |
| 2136669 | 714 | BOARD ASSY.,ENCORDER,PF |
| 2136637 | 715 | CABLE,ENCODER,PF |
| 2136724 | 716 | CABLE,CSIC |
| 1568152 | 717 | CABLE,HEAD ASSY.,B,SEC |
| 1554416 | 718 | STACKER ASSY. |
| 1597837 | 719 | CASSETTE ASSY.,C,SEC |
| 1721589 | 720 | DUPLEX ASSY.,E,SEC |
| 1797737 | 720 | DUPLEX ASSY.,E,SEC |
| 1550828 | 722 | SPUR GEAR,11.2 |
| 1613441 | 730 | I/S SUPPLY ASSY.,G,ASP |
| 1284759 | 731 | P.W.,3X0.5X8,F/ZN-3C |
| 1572965 | 732 | GROUNDING PLATE,PS,B |
| 1610750 | 732 | GROUNDING PLATE,PS,C |
| 1552602 | 733 | CLUTCH SPRING,ASSY |
| 1550615 | 734 | SPUR GEAR,30.4 |
| 1590384 | 800 | SCANNER UNIT,C.,ASP |
| 1740326 | 900 | ADF UNIT,G.,ASP |
| 1741516 | 900 | ADF UNIT,G.,ASP |
| 1555113 | 901 | DOCUMENT,SUPPORT,ADF ASSY. |
| 1588570 | 902 | COVER,ADF ASSY.,C,SEC |
| 1550744 | 903 | COVER,REAR,ADF |
| 1555114 | 904 | PAD,ADF ASSY.,SEC |
| 1588569 | 905 | FRAME,LD ASSY.,B,SEC |
| 1797648 | 905 | FRAME,LD ASSY.,B,SEC |
| Manual Name | WorkForce WP-4590 4592 4595 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 3.38M |
| Pages | 5 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON WorkForce WP-4590 4592 4595 |
