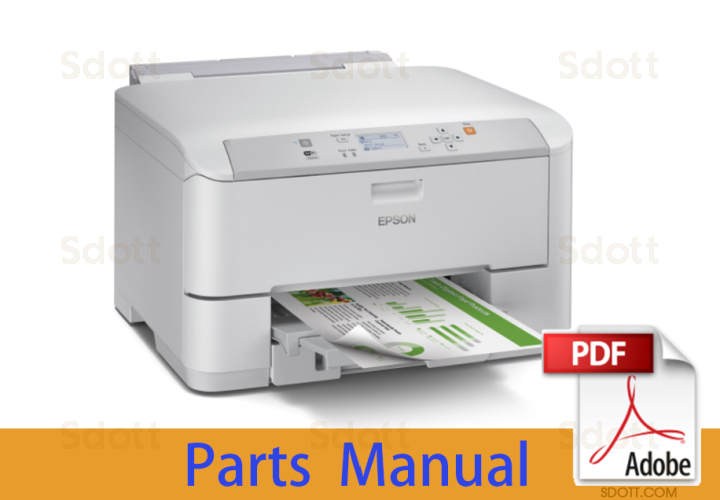

EPSON WF-5190 WF-5191 Parts Manual

In stock
SKU
EP-WF5190-PM
$1.20
  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing
Links
$1.20
More Information
Manual Name EPSON WF-5190 WF-5191 Parts Manual
Format PDF
PDF Archive 4.70M
Pages 4
Brand EPSON
Type SERVICE or PARTS MANUAL
Compatible Model Epson WF-5100 Series




****** The following content is not included in the PDF manual, please use it online ******

Article Reference Description
1606971 100 HOUSING,MIDDLE
1636760 101 PANEL ASSY.,EAI/EURO/EAL,B,SEC
1616603 104 HOUSING FRONT ASSY.,C,SEC
1745035 104 HOUSING FRONT ASSY.,C,SEC
1805246 104 HOUSING FRONT ASSY.,C,SEC
1624235 105 COVER,USB ASSY.,ASP
1550189 106 HOUSING,REAR
1550186 107 PAPER SUPPORT
1645979 110 HOUSING,UPPER,E
1550447 111 COVER,ASF,REAR
1550448 112 COVER,ASF,FRONT
2165480 200 BOARD ASSY.,MAIN
2188182 200 BOARD ASSY.,MAIN
2193835 200 BOARD ASSY.,MAIN
2171673 202 WIRELESS LAN USB MODULE
2150739 207 HARNESS MAIN-PNL,
2193698 207 HARNESS
2164441 211 FLASH MEMORY OTHERS,4 GBIT,
2190824 211 FLASH MEMORY
2177533 300 BOARD ASSY.,POWER SUPPLY
1671402 500 FRAME,BASE ASSY.,B,ASP
1822901 500 FRAME,BASE ASSY.,B,ASP
1615454 501 CARRIAGE ASSY.,SEC
1549854 502 SCALE,CR
1549855 503 EXTENSION SPRING,2.03
2136746 504 CONNECTOR,DRAWER,MAIN
1522498 511 SHAFT,DRIVE,PICK UP
2060220 512 CONNECTOR,CARTRIDGE,A
2143968 513 BOARD ASSY.,SUB
2136631 514 CABLE,BOARD ASSY.,IC
2194031 514 CABLE,BOARD ASSY.,IC
1471944 531 ROLLER,DRIVEN
1471945 532 SHAFT,ROLLER,DRIVEN
FA16141 700 Ersetzt durch: FA16221
FA16181 700 PRINT HEAD,ID8570-14,ASP ORDER TO SEC WITH MOQ=12PCS, S
FA16221 700 PRINT HEAD,ID8570-14,ASP ORDER TO SEC WITH MOQ=12PCS, S
1615727 701 I/S MENTENANCE ASSY.,SEC
1799788 701 I/S MENTENANCE ASSY.,SEC
1706207 704 I/S SUPPLY ASSY.,B,ASP
1822890 704 I/S SUPPLY ASSY.,B,ASP
1607033 705 SEAL,JOINT,HEAD
1766374 705 SEAL,JOINT,HEAD
1615726 706 I/S PUMP ASSY.,SEC
1799787 706 I/S PUMP ASSY.,SEC
1615714 708 R-ASF ASSY.,SEC
1799727 708 R-ASF ASSY.,SEC
1554431 709 GUIDE RASF UPPER ASSY.
1615448 711 ROLLER,EJ ASSY.,SEC
1554412 712 PICK UP ASSY.,SEC
1797654 712 PICK UP ASSY.,SEC
1554415 713 STOPPER PAPER ASSY.,SEC
2136669 714 BOARD ASSY.,ENCORDER,PF
2136637 715 CABLE,ENCODER,PF
2152712 716 CABLE,CSIC
2186794 716 CABLE,CSIC
2194556 716 CABLE,CSIC
1615715 717 CABLE,HEAD ASSY.,SEC
1799786 717 CABLE,HEAD ASSY.,SEC
1616298 718 STACKER ASSY.,SEC
1624464 719 CASSETTE ASSY.,C,SEC
1636228 720 DUPLEX ASSY.,E,SEC
1721589 720 DUPLEX ASSY.,E,SEC
1797737 720 DUPLEX ASSY.,E,SEC
1610750 732 GROUNDING PLATE,PS,C
1552602 733 CLUTCH SPRING,ASSY
1550615 734 SPUR GEAR,30.4
