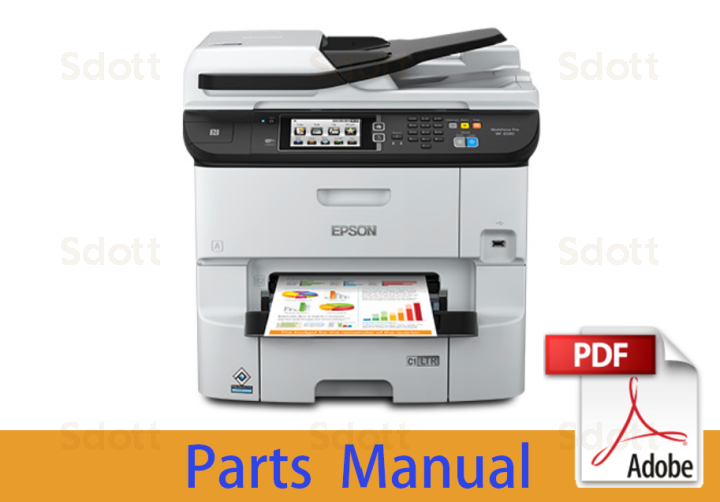

EPSON WF-6590 WF-6593 Parts Manual
In stock
SKU
EP-WF6590-PM
$1.10
| Manual Name | EPSON WF-6590 WF-6593 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 6.99M |
| Pages | 5 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson WF-6500 Series |
****** The following content is not included in the PDF manual, please use it online ******
| Article | Reference | Description |
| 1668910 | 100 | HOUSING,MIDDLE,ASSY.,ASP |
| 1668912 | 101 | HOUSING,FRONT,ASSY.,ASP |
| 1656658 | 102 | PANEL UNIT CD49,IEI |
| 1646003 | 103 | HOUSING,PANEL,LOWER |
| 1656640 | 104 | COVER,FRONT,ASSY.,IEI |
| 1655833 | 105 | STACKER.,ASSY,,IEI |
| 1641894 | 106 | COVER,FRONT,RIGHT |
| 1655872 | 107 | PAPER SUPPORT,MIDDLE,ASSY.,IEI |
| 1641895 | 109 | GUIDE,PAPER SUPPORT |
| 1641898 | 110 | HOUSING,REAR,LEFT |
| 1641897 | 111 | HOUSING,REAR,RIGHT |
| 2162570 | 112 | COVER,CONNECTOR,ASSY,,B,ASP |
| 1655299 | 113 | COVER,REAR,ASF,ASSY.,IEI |
| 1869452 | 113 | COVER,REAR,ASF,ASSY.,IEI |
| 1626348 | 116 | LABEL,BLIND,PANEL |
| 1668922 | 118 | INTERFACE BOARD ASSY.,ASP |
| 1653456 | 119 | COVER,NFC,C |
| 1678679 | 128 | LABEL,OPENPLATFORM |
| 2179471 | 200 | BOARD ASSY.,MAIN 6753R,CD49 STANDARD |
| 2182875 | 200 | BOARD ASSY.,MAIN 6753R,CD49 STANDARD |
| 2196885 | 200 | BOARD ASSY.,MAIN |
| 2174357 | 208 | FLASH MEMORY |
| 2186922 | 208 | FLASH MEMORY |
| 2188406 | 208 | FLASH MEMORY |
| 2191822 | 208 | FLASH MEMORY |
| 2195992 | 208 | FLASH MEMORY |
| 2177527 | 300 | BOARD ASSY.,POWER SUPPLY 6756A,STANDARD |
| 2180263 | 300 | BOARD ASSY.,POWER SUPPLY |
| 2180265 | 300 | BOARD ASSY.,POWER SUPPLY |
| 2187937 | 300 | BOARD ASSY.,POWER SUPPLY 6756A,STANDARD |
| 2191176 | 300 | BOARD ASSY.,POWER SUPPLY 6756A,STANDARD |
| 2150773 | 351 | BOARD ASSY.,INTERFACE |
| 2150783 | 352 | HARNESS |
| 2193681 | 352 | HARNESS |
| 2172190 | 354 | WIRELESS LAN USB MODULE |
| 2181974 | 354 | WIRELESS LAN USB MODULE |
| 2192160 | 354 | WIRELESS LAN USB MODULE |
| 2121674 | 355 | HARNESS |
| 1684205 | 500 | PRINTER MECHANISM,CD48,E,ASP |
| 1717341 | 500 | PRINTER MECHANISM,CD48,E,ASP |
| 1736531 | 500 | PRINTER MECHANISM,CD48,E,ASP |
| 1799400 | 500 | PRINTER MECHANISM,CD48,E,ASP |
| 1617403 | 501 | PW SHUTTER,ASSY.,SEC |
| 1617400 | 502 | MOTOR,APG,ASSY.,SEC |
| 1617406 | 503 | DRIVE APG,ASSY.,SEC |
| 1617335 | 504 | BOARD ASSY.,ENCODER,PF,ASSY.,SEC |
| 1767608 | 504 | BOARD ASSY.,ENCODER,PF,ASSY.,SEC |
| 1608786 | 505 | TIMING BELT,PF |
| 1617333 | 506 | DRIVE,PF ASSY.,SEC |
| 2166074 | 507 | DRIVE ASF,ASSY.,B,ASP |
| 1658761 | 508 | IS DECOMP PUMP,ASSY,CD46,IEI |
| 2155090 | 509 | MOTOR ASSY.,CR |
| 1617380 | 510 | MTB JOINT,ASSY.,SEC |
| 1840441 | 510 | MTB JOINT,ASSY.,SEC |
| 1656651 | 511 | HOLDER,STARWHEEL ASSY.,IEI |
| 1656136 | 512 | CARRIAGE,ASSY.,IEI |
| 1880446 | 512 | CARRIAGE,ASSY.,IEI |
| 1668915 | 513 | SCALE,CR,ASSY.,ASP |
| 1655294 | 514 | HEAD FFC,ASSY.,IEI |
| 1608899 | 515 | LEVER,BLOCK,COVER,REAR,ASF |
| 1617373 | 516 | IS PUMP,ASSY.,SEC |
| 1840442 | 516 | IS PUMP,ASSY.,SEC |
| 1678674 | 517 | INK SYSTEM,ASSY.,B,SEC |
| 1608790 | 519 | STOPPER,TENSION,PF |
| 2143464 | 520 | PHOTO INTERRUPTER |
| 2109393 | 521 | BOARD ASSY.,DETECTOR,PW,B |
| 1614492 | 524 | POROUS PAD,CR |
| 1667879 | 525 | SUPPLY,ROLLER,ASSY.,IEI |
| 1682249 | 526 | LEVER,DETECTOR,PAPER GUIDE,REAR,ASF,B |
| 2175095 | 527 | PAPER GUIDE,DUPLEX, ASSY,B,IEI |
| FA16111 | 700 | Ersetzt durch: FA16191 |
| FA16191 | 700 | PRINT HEAD,ID8570-11,ASP ORDER TO SEC WITH MOQ=12PCS, S |
| FA16192 | 700 | PRINT HEAD,ID8570-11,ASP ORDER TO SEC WITH MOQ=12PCS, S |
| FA16231 | 700 | PRINT HEAD,ID8570-11,ASP ORDER TO SEC WITH MOQ=12PCS, S |
| 1668908 | 701 | REAR,ASF,ASSY.,CD48,ASP |
| 1746630 | 701 | REAR,ASF,ASSY.,CD48,ASP |
| 1614447 | 702 | SHEET,GUIDE,ROOLER,RASF |
| 1617440 | 705 | LEVER,CLUTCH,ASSY.,SEC |
| 1617439 | 706 | CLUTCH,LD,ASSY.,SEC |
| 1607033 | 707 | SEAL,JOINT,HEAD |
| 1766374 | 707 | SEAL,JOINT,HEAD |
| 2090717 | 708 | LEAF SENSOR |
| 1610019 | 709 | POROUS PAD,INK,HOLDER |
| 2091058 | 711 | BOARD ASSY.,PE |
| 1619731 | 712 | USB HOST ASSY,,SEC |
| 2150779 | 713 | HARNESS |
| 1617438 | 714 | HOLDER,RETARD,RASF ASSY.,SEC |
| 1668920 | 715 | CASSETTE,ASSY.,ASP |
| 1833856 | 715 | CASSETTE,ASSY.,ASP |
| 1655815 | 716 | EDGE GUIDE,REAR,CASSETTE,ASSY.,IEI |
| 2138684 | 717 | CR CONTACT MODULE |
| 1678678 | 718 | DUP ASSY.,ASP |
| 1752290 | 718 | DUP ASSY.,ASP |
| 1600316 | 719 | BELT,STOPPER,MSF |
| 1686248 | 720 | INK SUPPLY,ASSY.,CD48,B,ASP |
| 1705433 | 720 | INK SUPPLY,ASSY.,CD48,B,ASP |
| 1709973 | 720 | INK SUPPLY,ASSY.,CD48,B,ASP |
| 2154516 | 721 | SPEAKER |
| 1655810 | 722 | HOLDER,RETARD,CASSETTE,ASSY.,IEI |
| 1815513 | 722 | HOLDER,RETARD,CASSETTE,ASSY.,IEI |
| 1649077 | 763 | LABEL,PAPER SIZE,CASSETTE |
| 1696308 | 770 | SCREW MOUNT HEAD ASSY.,ASP |
| 1685582 | 800 | SCN/ADF ASSY.,E,ASP |
| 1766690 | 800 | SCN/ADF ASSY.,E,ASP |
| 1839757 | 800 | SCN/ADF ASSY.,E,ASP |
| 1839756 | 800 | SCN/ADF ASSY.,E,ASP |
| 2150780 | 801 | HARNESS MAIN-MAINB,2150780-01 |
| 2193680 | 801 | HARNESS |
| 1656596 | 901 | PAPER GUIDE,UPPER,ADF ASSY.,IEI |
| 1641870 | 902 | DECORATION,REAR,ADF |
| 1641872 | 904 | DECORATION,FRONT,ADF |
| 1668918 | 906 | DOC,SUPPORT,ADF ASSY.,ASP |
| 1656618 | 908 | DOCUMENT GUIDE,LOWER,ADF ASSY.,IEI |
| 2156412 | 909 | PAD,ADF ASSY,,SEC |
| 1675261 | 910 | HINDGE ASSY.,RIGHT,B |
| 1675260 | 911 | HINDGE ASSY.,LEFT,B |
| 1647944 | 912 | MAT,COVER DOCUMENT |
| 2131049 | 913 | ENCODER,ADF,B |
| 1641892 | 914 | COVER,ASF |
| 1641871 | 916 | DECORATION,RIGHT,ADF |
| 1609392 | 917 | STOPER,DOCUMENT,ADF |
| 1649076 | 919 | LABEL,FUNCTION |
| 1649229 | 921 | LABEL,EDGE GUIDE OPERATION |
