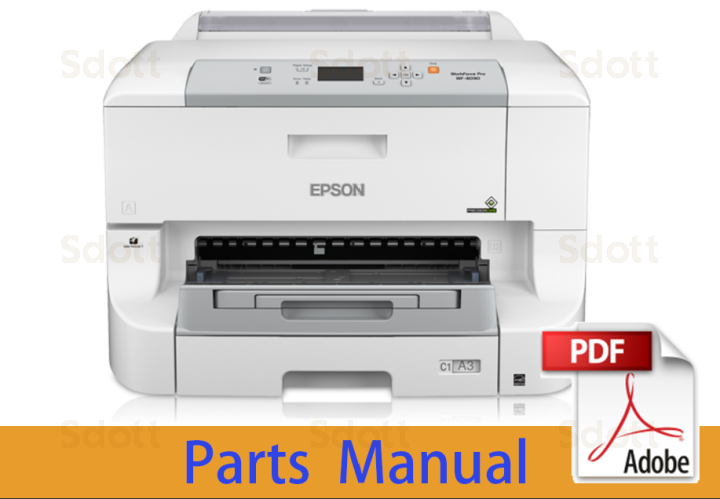

EPSON WF-8090 PX-S7050PS Parts Manual
In stock
SKU
EP-WF8090-PM
$1.20
| Manual Name | EPSON WF-8090 PX-S7050PS Parts Manual |
|---|---|
| Format | |
| PDF Archive | 8.05M |
| Pages | 5 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson WF-8000 Series |
****** The following content is not included in the PDF manual, please use it online ******
| Article | Reference | Description |
| 2167238 | 100 | HOUSING,MIDDLE,ASSY.,C,ASP |
| 1708673 | 100 | HOUSING,MIDDLE,ASSY.,C,ASP |
| 2162558 | 101 | HOUSING,FRONT,ASSY.,ASP |
| 1617310 | 102 | PANEL UNIT CD43,B,SEC |
| 1617455 | 104 | COVER,FRONT,ASSY.,SEC |
| 1617464 | 105 | STACKER,ASSY.,SEC |
| 1609570 | 106 | COVER,FRONT,RIGHT |
| 1617743 | 107 | PAPER SUPPORT,MIDDLE,ASSY.,SEC |
| 1609575 | 108 | COVER,ASF |
| 1609569 | 110 | HOUSING,PANEL,LEFT |
| 1609568 | 111 | HOUSING,PANEL,RIGHT |
| 2162571 | 112 | COVER,CONNECTOR,ASSY.,ASP |
| 1654020 | 113 | COVER,REAR,ASF,ASSY.,B,SEC |
| 2164507 | 114 | HOUSING,UPPER,ASSY.,ASP |
| 1616506 | 117 | LABEL,FUNCTION |
| 2167660 | 200 | BOARD ASSY.,MAIN |
| 2193536 | 200 | BOARD ASSY.,MAIN |
| 2193500 | 200 | BOARD ASSY.,MAIN 6753I,CD43 STANDARD |
| 2138684 | 203 | CR CONTACT MODULE |
| 2171673 | 204 | WIRELESS LAN USB MODULE |
| 2121674 | 205 | HARNESS |
| 2164602 | 208 | FLASH MEMORY |
| 2197796 | 208 | FLASH MEMORY OTHERS,4 GBIT, |
| 2150763 | 300 | BOARD ASSY.,POWER SUPPLY |
| 2177527 | 300 | BOARD ASSY.,POWER SUPPLY |
| 2180263 | 300 | BOARD ASSY.,POWER SUPPLY |
| 2180265 | 300 | BOARD ASSY.,POWER SUPPLY |
| 2187937 | 300 | BOARD ASSY.,POWER SUPPLY |
| 2191176 | 300 | BOARD ASSY.,POWER SUPPLY |
| 2173096 | 500 | PRINTER MECHANISM,CD42,F,ASP |
| 2174827 | 500 | PRINTER MECHANISM,CD42,F,ASP |
| 1617403 | 501 | PW SHUTTER,ASSY.,SEC |
| 1617400 | 502 | MOTOR,APG,ASSY.,SEC |
| 1617406 | 503 | DRIVE APG,ASSY.,SEC |
| 1617335 | 504 | BOARD ASSY.,ENCODER,PF,ASSY.,SEC |
| 1767608 | 504 | BOARD ASSY.,ENCODER,PF,ASSY.,SEC |
| 1608786 | 505 | TIMING BELT,PF |
| 1617333 | 506 | DRIVE,PF ASSY.,SEC |
| 2166074 | 507 | DRIVE ASF,ASSY.,B,ASP |
| 1617185 | 508 | IS DECOMP PUMP.,ASSY.,SEC |
| 2155090 | 509 | MOTOR ASSY.,CR |
| 1617380 | 510 | MTB JOINT,ASSY.,SEC |
| 1840441 | 510 | MTB JOINT,ASSY.,SEC |
| 1670405 | 511 | HOLDER,STARWHEEL ASSY.B,SEC |
| 1617388 | 512 | CARRIAGE,ASSY.,SEC |
| 2162797 | 513 | SCALE,CR,ASSY.,ASP |
| 1608899 | 515 | LEVER,BLOCK,COVER,REAR,ASF |
| 1617373 | 516 | IS PUMP,ASSY.,SEC |
| 1840442 | 516 | IS PUMP,ASSY.,SEC |
| 1617382 | 517 | INK SYSTEM,ASSY.,SEC |
| 1678674 | 517 | INK SYSTEM,ASSY.,SEC |
| 1608790 | 519 | STOPPER,TENSION,PF |
| 2143464 | 520 | PHOTO INTERRUPTER |
| 2109393 | 521 | BOARD ASSY.,DETECTOR,PW,B |
| 1614492 | 524 | POROUS PAD,CR |
| 1653940 | 525 | SUPPLY,ROLLER,ASSY.,C,SEC |
| 1608902 | 526 | LEVER,DETECTOR,PAPER GUIDE,REAR,ASF |
| 1682249 | 526 | LEVER,DETECTOR,PAPER GUIDE,REAR,ASF |
| FA16111 | 700 | Ersetzt durch: FA16191 |
| FA16191 | 700 | PRINT HEAD,ID8570-11,ASP ORDER TO SEC WITH MOQ=12PCS, S |
| FA16192 | 700 | PRINT HEAD,ID8570-11,ASP ORDER TO SEC WITH MOQ=12PCS, S |
| FA16231 | 700 | PRINT HEAD,ID8570-11,ASP ORDER TO SEC WITH MOQ=12PCS, S |
| 2169129 | 701 | REAR,ASF,ASSY.,C,ASP |
| 1746761 | 701 | REAR,ASF,ASSY.,C,ASP |
| 1614447 | 702 | SHEET,GUIDE,ROOLER,RASF |
| 1617440 | 705 | LEVER,CLUTCH,ASSY.,SEC |
| 1617439 | 706 | CLUTCH,LD,ASSY.,SEC |
| 1607033 | 707 | SEAL,JOINT,HEAD |
| 1766374 | 707 | SEAL,JOINT,HEAD |
| 2090717 | 708 | LEAF SENSOR |
| 1610019 | 709 | POROUS PAD,INK,HOLDER |
| 1617397 | 710 | HEAD FFC,ASSY.,SEC |
| 2091058 | 711 | BOARD ASSY.,PE |
| 2150778 | 713 | HARNESS |
| 2169508 | 715 | CASSETTE,ASSY.,D,SEC,ASP |
| 1617459 | 716 | EDGE GUIDE,REAR,CASSETTE,ASSY.,SEC |
| 2169165 | 718 | DUP ASSY.,ASP |
| 1705890 | 718 | DUP ASSY.,ASP |
| 1712233 | 718 | DUP ASSY.,ASP |
| 1600316 | 719 | BELT,STOPPER,MSF |
| 1674848 | 720 | INK SUPPLY,,K,ASSY.,SEC |
| 1686183 | 720 | INK SUPPLY,,K,ASSY.,SEC |
| 1702362 | 720 | INK SUPPLY,,K,ASSY.,SEC |
| 1703860 | 720 | INK SUPPLY,,K,ASSY.,SEC |
| 1705521 | 720 | INK SUPPLY,,K,ASSY.,SEC |
| 1653945 | 722 | HOLDER,RETARD,CASSETTE,ASSY.,B,SEC |
| 1815008 | 722 | HOLDER,RETARD,CASSETTE,ASSY.,B,SEC |
| 1614431 | 763 | LABEL,PAPER SIZE,CASSETTE |
