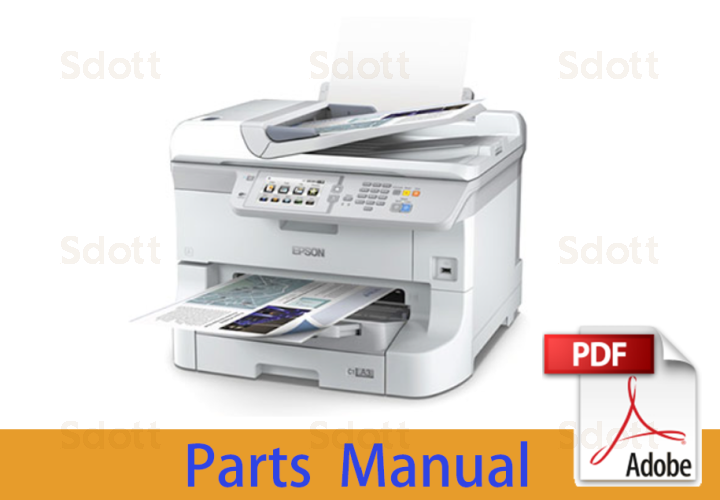

Parts Manual for EPSON WF-8510 PX-7050F PX-7050B

In stock
SKU
EP-WF8510-PM
$1.10
Compare
Email

Share it:

  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing

Share it:

Links
$1.10



*****   The following content is not included in the PDF manual   *****

*****   Please refer to the details ONLINE   ******

ArticleReferenceDescription

1708673100HOUSING,MIDDLE,ASSY.,D,ASP
2162558101HOUSING,FRONT,ASSY.,ASP
1618891102PANEL UNIT CD44,B,SEC
1609496103HOUSING,PANEL,LOWER
1617455104COVER,FRONT,ASSY.,SEC
1617464105STACKER,ASSY.,SEC
1609418106COVER,FRONT.RIGHT
1617743107PAPER SUPPORT,MIDDLE,ASSY.,SEC
1609494109GUIDE,PAPER SUPPORT
1609437110HOUSING,REAR,LEFT
1609416111HOUSING,REAR,RIGHT
2162570112COVER,CONNECTOR,ASSY,,B,ASP
1654020113COVER,REAR,ASF,ASSY.,B,SEC
1626348116LABEL,BLIND,PANEL
2154862118HARNESS,GROUND,PANEL
2171918200BOARD ASSY.,MAIN 6753J,CD44 STANDARD
2193537200BOARD ASSY.,MAIN
2150773201BOARD ASSY.,INTERFACE
2150783202HARNESS
2193681202HARNESS
2138684203CR CONTACT MODULE
2171673204WIRELESS LAN USB MODULE
2121674205HARNESS
2180263300BOARD ASSY.,POWER SUPPLY
2187937300BOARD ASSY.,POWER SUPPLY 7044B,REFER TO ASSEMBLY SPECIF
2191176300BOARD ASSY.,POWER SUPPLY 7044B,REFER TO ASSEMBLY SPECIF
2177317500PRINTER MECHANISM,CD42,I,ASP
1617403501PW SHUTTER,ASSY.,SEC
1617400502MOTOR,APG,ASSY.,SEC
1617406503DRIVE APG,ASSY.,SEC
1617335504BOARD ASSY.,ENCODER,PF,ASSY.,SEC
1767608504BOARD ASSY.,ENCODER,PF,ASSY.,SEC
1608786505TIMING BELT,PF
1617333506DRIVE,PF ASSY.,SEC
2166074507DRIVE ASF,ASSY.,B,ASP
1617185508IS DECOMP PUMP.,ASSY.,SEC
2155090509MOTOR ASSY.,CR
1617380510MTB JOINT,ASSY.,SEC
1840441510MTB JOINT,ASSY.,SEC
1670405511HOLDER,STARWHEEL ASSY.B,SEC
1617388512CARRIAGE,ASSY.,SEC
2162797513SCALE,CR,ASSY.,ASP
1608899515LEVER,BLOCK,COVER,REAR,ASF
1617373516IS PUMP,ASSY.,SEC
1840442516IS PUMP,ASSY.,SEC
1678674517INK SYSTEM,ASSY.,B,SEC
1608790519STOPPER,TENSION,PF
2143464520PHOTO INTERRUPTER
2109393521BOARD ASSY.,DETECTOR,PW,B
1614492524POROUS PAD,CR
1653940525SUPPLY,ROLLER,ASSY.,C,SEC
1682249526LEVER,DETECTOR,PAPER GUIDE,REAR,ASF,B
2175095527PAPER GUIDE,DUPLEX, ASSY,B,IEI
FA16191700PRINT HEAD,ID8570-19,ASP ORDER TO SEC WITH MOQ=12PCS, S
FA16192700PRINT HEAD,ID8570-19,ASP ORDER TO SEC WITH MOQ=12PCS, S
FA16231700PRINT HEAD,ID8570-19,ASP ORDER TO SEC WITH MOQ=12PCS, S
2169130701REAR,ASF,ASSY.,B,ASP
1746762701REAR,ASF,ASSY.,B,ASP
1614447702SHEET,GUIDE,ROOLER,RASF
1617440705LEVER,CLUTCH,ASSY.,SEC
1617439706CLUTCH,LD,ASSY.,SEC
1607033707SEAL,JOINT,HEAD
1766374707SEAL,JOINT,HEAD
2090717708LEAF SENSOR
1610019709POROUS PAD,INK,HOLDER
1617397710HEAD FFC,ASSY.,SEC
2091058711BOARD ASSY.,PE
1619731712USB HOST ASSY,,SEC
2150779713HARNESS
2169508715CASSETTE,ASSY.,D,SEC,ASP
1617459716EDGE GUIDE,REAR,CASSETTE,ASSY.,SEC
1712233718DUP ASSY.,C,ASP
1600316719BELT,STOPPER,MSF
1705521720INK SUPPLY,ASSY.,CD42,D,ASP
2154516721SPEAKER
1653945722HOLDER,RETARD,CASSETTE,ASSY.,B,SEC
1815008722HOLDER,RETARD,CASSETTE,ASSY.,B,SEC
1614431763LABEL,PAPER SIZE,CASSETTE
1606961770SCREW,MOUNT,HEAD
1606962771COMPRESSION SPRING,2.25
1607106772C.B.EP-TITE SCREW,2.6X17(B=14),F/ZN-3C
2153340774CABLE,CRCM
2179548800SCN/ADF ASSY.,B,ASP
2183968800SCN/ADF ASSY.,B,ASP
2185745800SCN/ADF ASSY.,B,ASP
1766522800SCN/ADF ASSY.,B,ASP
2150780801HARNESS MAIN-MAINB,2150780-01
2193680801HARNESS
1702911901PAPER GUIDE,UPPER,ADF ASSY.,B,SEC
1615264902COVER,REAR,ADF
1609401903DECORATION,REAR,ADF
1609393904COVER,FRONT,ADF
1609400905DECORATION,FRONT,ADF
2164096906DOC,SUPPORT,ADF ASSY.,ASP
1609399907DOCUMENT,SUPPORT,LOWER,ADF
2156413908DOCUMENT GUIDE,LOWER,ADF ASSY,,SEC
2156412909PAD,ADF ASSY,,SEC
1675259910HINDGE ASSY.,RIGHT,B
1675258911HINDGE ASSY.,LEFT,B
1609318912MAT,COVER DOCUMENT
2131049913ENCODER,ADF,B
1615271914COVER,ASF
2156418915LD ASSY,,SEC
1615265916COVER,RIGHT,ADF
1609392917STOPER,DOCUMENT,ADF
1626349918LABEL,BLIND,PANEL,B
1615919919LABEL,FUNCTION

More Information
Manual Name WF-8510 PX-7050F PX-7050B Parts Manual
Format PDF
PDF Archive 8.46M
Pages 5
Type SERVICE or PARTS MANUAL
Compatible Model Epson WF-8500 Series
