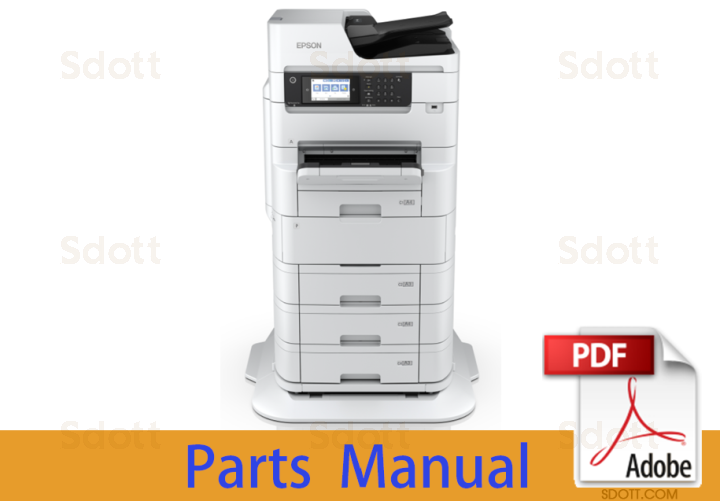

Parts Manual for Epson WorkForce WF-C879R WF-C879Ra
In stock
SKU
EP-WFC879R-PM
$1.20
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
Epson WorkForce WF-C879R WF-C879Ra Parts Manual
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******
| 2196804 | 100 | HARNESS PNL-MAIN |
| 1830384 | 101 | PANEL ASSY.,CH35,ASP |
| 1792828 | 102 | COVER,FRONT,SC |
| 1610795 | 103 | BAND,COVER,REAR,OPT |
| 1831391 | 104 | COVER,FRONT,RIPS,ASP |
| 1831406 | 105 | STACKER ASSY.,CH35,ASP |
| 1834610 | 106 | COVER,REAR,RIPS ASSY.,CH35,ASP |
| 1834612 | 107 | COVER,CONNECTOR,ASP |
| 1831392 | 108 | HOUSING,RIGHT,ASSY.,ASP |
| 1833683 | 109 | HOUSING,RIGHT,RIPS ASSY.,ASP |
| 1830064 | 110 | GROUNDING PLATE,HOST,USB,ASSY.,CH35,IEI |
| 1834614 | 111 | SPEAKER ASSY.,ASP |
| 1834617 | 112 | COVER,INNER,RIGHT,CH35,ASP |
| 1792827 | 113 | HINGE,COVER,FRONT |
| 1792823 | 114 | COVER,LEAF DETECTOR |
| 2150699 | 115 | LEAF SENSOR,P599 |
| 1600316 | 116 | BELT,STOPPER,MSF |
| 1831393 | 118 | COVER,FRONT,ASSY.,CH35,ASP |
| 1834616 | 120 | COVER,INNER,LEFT,ASP |
| 1833684 | 121 | HOLDER LEVER LOCK ASSY.,ASP |
| 1833685 | 122 | HOUSING,LEFT,RIPS,ASSY.,ASP |
| 1682129 | 123 | LABEL,PRECISIONCORE,B |
| 1792820 | 135 | HOUSING,FRONT,LEFT |
| 1792819 | 136 | HOUSING,FRONT,RIGHT |
| 1792812 | 150 | HOUSING,LEFT |
| 1792818 | 151 | COVER,INNER,MIDDLE |
| 1804217 | 152 | HOLDER,MANUAL |
| 1839418 | 153 | HOLDER,CLOTH,ASSY.,ASP |
| 1792854 | 155 | LABEL,BLIND,SCREW |
| 1800518 | 156 | LABEL,PRODUCT NAME |
| 1637442 | 157 | LABEL,INSTRUCTION,FRONT |
| 1830395 | 200 | MB ASSY.,CH35,ASP |
| 2199892 | 300 | BOARD ASSY.,POWER SUPPLY |
| 2207228 | 351 | WIRELESS LAN USB MODULE |
| 2203094 | 352 | BOARD ASSY.,MAIN |
| 1831395 | 353 | ROM ASSY.,ASP |
| 1833689 | 355 | OPTION,IF,ASSY.,CH35,ASP |
| 2177050 | 356 | BOARD ASSY.,INTERFACE 7023A,STANDARD_ringer |
| 2188380 | 357 | HDD |
| 2209052 | 358 | BOARD ASSY.,SUB |
| 2194728 | 359 | BOARD ASSY.,SUB |
| 1839421 | 366 | COVER,BLINDFOLD,NETWORK,ASP |
| 1839422 | 367 | COVER,BLINDFOLD,FAX,ASP |
| 1745189 | 501 | PW SHUTTER.,ASSY.CG68,IEI |
| 1745190 | 502 | MOTOR,APG.,ASSY.CG68,IEI |
| 1835464 | 503 | MOTOR DRIVE APG,ASSY.,ASP |
| 1833701 | 504 | MOUNTING PLATE,BOARD,ENCORDER,PF,ASP |
| 1608786 | 505 | TIMING BELT,PF |
| 1702648 | 506 | DRIVE,PF ASSY.,IEI |
| 1835465 | 507 | DRIVE ASF,ASSY.,ASP |
| 1844206 | 508 | IS DECOMP PUMP ASSY.,CH35,B,ASP |
| 1833698 | 509 | TUBE ASSY SUPPLY,UNIT,CH35,ASP |
| 1716951 | 510 | CABLE,CSIC,INK EJECT,ASP |
| 1830067 | 511 | HOLDER,STARWHEEL ASSY.,CH35,IEI |
| 1702433 | 512 | CARRIAGE,ASSY.CF34,IEI |
| 1872664 | 512 | CARRIAGE,ASSY.CF34,IEI |
| 2162797 | 513 | SCALE,CR,ASSY.,ASP |
| 2143464 | 514 | PHOTO INTERRUPTER |
| 1792727 | 516 | TORSION SPRING,FE LEVER,RIPS |
| 1830402 | 517 | INK SYSTEM ASSY.,ASP |
| 1792711 | 518 | LEVER,FE DETECTOR,RIPS |
| 1608790 | 519 | STOPPER,TENSION,PF |
| 2109393 | 521 | BOARD ASSY.,DETECTOR,PW,B |
| 1831402 | 523 | DUCT PUMP,ASSY.,UNIT,ASP |
| 1865121 | 523 | DUCT PUMP,ASSY.,UNIT,ASP |
| 1835463 | 524 | AMADOI ASSY.,CH35,ASP |
| 1653940 | 525 | SUPPLY,ROLLER,ASSY.,C,SEC |
| 1682249 | 526 | LEVER,DETECTOR,PAPER GUIDE,REAR,ASF,B |
| 2177044 | 528 | BOARD ASSY.,SUB |
| 1608693 | 529 | TIMING BELT,CR |
| 2187886 | 531 | BOARD ASSY.,ENCODER |
| 1833697 | 532 | TUBE MOTOR DECOMP,ASP |
| 1839423 | 534 | SOLENOID ASSY.,ASP |
| 1703396 | 536 | COMPRESSION SPRING,2.7,RETARD |
| 2176012 | 547 | SENSOR,TEMPERATURE,HUMIDITY,HSHCAA106F |
| 1835466 | 548 | LIFT DRIVE ASSY.,ASP |
| 1617356 | 549 | PAPER GUIDE,UPPER,LEFT.,ASSY,,IEI |
| 2188022 | 551 | MOTOR ASSY.,CR |
| 1741305 | 552 | 4 LINE SWITCH |
| 1696881 | 553 | HOLDER,DETECTOR,PAPER LENGTH |
| 1696882 | 554 | LEVER,DETECTOR,PAPER LENGTH |
| 2201168 | 555 | CABLE,CSIC,M |
| 2201166 | 556 | CABLE,CSIC,BK |
| 1617343 | 557 | ROLLER,DRIVEN,PF,,IEI |
| 1720452 | 558 | PAPER GUIDE,UPPER,LEFT.,ASSY,CF34,B,IEI |
| 1720450 | 559 | PAPER GUIDE,UPPER,RIGHT.,ASSY,CF34,B,IEI |
| 1617342 | 560 | PAPER GUIDE,UPPER,RIGHT.,ASSY,,IEI |
| 2201169 | 561 | CABLE,CSIC,C |
| 2201167 | 562 | CABLE,CSIC,Y |
| 1792471 | 564 | LEVER,PAPER DETECT,MIDDLE |
| 2200971 | 565 | DETECTOR,PS122GD4-A |
| 2187890 | 566 | BOARD ASSY.,ENCODER |
| 1608879 | 567 | SPUR GEAR,20,LIFT,ASF |
| 2202769 | 568 | BOARD ASSY.,SENSOR |
| 1614492 | 570 | POROUS PAD,CR |
| FA30022 | 700 | PRINT HEAD,HOP3,ASP ORDER TO SEC WITH MOQ=12PCS, S |
| FA30032 | 700 | PRINT HEAD,HOP3,ASP ORDER TO SEC WITH MOQ=12PCS, S |
| 1830400 | 701 | RASF ASSY.,ASP |
| 1856325 | 701 | RASF ASSY.,ASP |
| 1833704 | 702 | COVER,RASF,TOP,ASP |
| 1804744 | 703 | PAPER SUPPORT,MIDDLE,ASSY.CF34.,B,IEI |
| 1609065 | 705 | MOUNTING PLATE,TRIGGER,LD |
| 1617439 | 706 | CLUTCH,LD,ASSY.,SEC |
| 1833703 | 707 | COVER,RASF,REAR,ASP |
| 1833702 | 708 | COVER,PAPER,GUIDE,REAR,ASSY.,ASP |
| 1835469 | 710 | CABLE,HEAD ASSY.,ASP |
| 1841459 | 710 | CABLE,HEAD ASSY.,ASP |
| 1792667 | 711 | SHEET,PROTECT,FFC,PANEL,A |
| 1792671 | 714 | SHEET,PROTECT,FFC,PANEL,C |
| 1830401 | 715 | CASSETTE ASSY.,ASP |
| 1792668 | 716 | SHEET,PROTECT,FFC,PANEL,B |
| 1831403 | 718 | DUPLEX/ U WAY UNIT,ASP |
| 1813646 | 719 | PS INLET,ASSY.,CH35,,IEI |
| 1792703 | 721 | COVER,OPEN DETECTOR,REAR,RIPS |
| 1701851 | 722 | HOLDER,RETARD,CASSETTE,ASSY.,IEI |
| 1792676 | 723 | HOUSING,REAR,RIPS |
| 1696898 | 724 | SHEET,CABLE,HEAD,2 |
| 1835467 | 725 | STACKER,OPEN,TRIGGER,ASSY.,ASP |
| 1833695 | 726 | TRAY,INK PACK,CL,ASP |
| 1833696 | 729 | TRAY,INK PACK,BK,ASP |
| 1696897 | 730 | SHEET,CABLE,HEAD,1 |
| 1802194 | 740 | SHEET,PROTECT,COVER,PCB,RELAY |
| 1792524 | 741 | COVER,RASF,TOP,SUB |
| 1701491 | 763 | LABEL,PAPER SIZE,CASSETTE |
| 1615762 | 766 | LABEL,CASSETTE POSITION |
| 1696308 | 770 | SCREW MOUNT HEAD ASSY.,ASP |
| 1833705 | 771 | HOUSING,FRONT,RIPS,ASP |
| 2200899 | 772 | DRAWER CONECTOR,1612256-7 |
| 1830397 | 800 | SCANNER ASSY.,ASP |
| 1837683 | 800 | SCANNER ASSY.,ASP |
| 1861228 | 800 | SCANNER ASSY.,ASP |
| 1792548 | 801 | COSMETIC PLATE,RIGHT,SC |
| 1792542 | 802 | HOUSING,REAR,SC |
| 2199886 | 803 | BOARD ASSY.,MAIN |
| 2216773 | 803 | BOARD ASSY.,MAIN |
| 2199171 | 804 | CIS MODULE |
| 1792547 | 805 | COSMETIC PLATE,LEFT,SC |
| 1609249 | 806 | COMPRESSION SPRING,1.84,CIS |
| 1687873 | 807 | CAP,HOUSING,UPPER,SC |
| 1745134 | 810 | STAY SC ASSY CG68,IEI |
| 2200914 | 811 | DETECTOR,DOCUMENT SIZE,PS181FL7,SC |
| 1833700 | 812 | HOLDER,LEVER,SENSOR,SC ASSY.,ASP |
| 1792549 | 813 | MOUNTING PLATE,RIGHT,SC |
| 1839628 | 900 | ADF ASSY.,B,ASP |
| 1839629 | 901 | CIS MODULE ASSY.,B,ASP |
| 1833691 | 902 | COVER,REAR,ADF,CH35,ASSY.,ASP |
| 1792297 | 903 | STOPPER,SUPPORT,ADF |
| 1831397 | 904 | COVER,FRONT,ADF,CH35,ASP |
| 1833692 | 906 | DOCUMENT SUPPORT,ADF ASSY.,ASP |
| 1792311 | 907 | DOCUMENT SUPPORT,LOWER,ADF |
| 1792296 | 908 | STOPPER,STACKER,ADF |
| 1792411 | 909 | PAD,PICKUP,ADF |
| 1687916 | 910 | C-RING,4,L/NA |
| 1800090 | 912 | MAT,COVER,DOCUMENT,ADF,t3 |
| 1823282 | 913 | ADF,LD,ASSY CH35,IEI |
| 1792413 | 914 | COVER,RETARD,ADF |
| 1836705 | 915 | COVER,ROLLER,LD,ADF,B |
| 1835689 | 916 | ROLLER,RETARD,ASSY.,B,ASP |
| 1831400 | 919 | ADF BOARD ASSY.,ASP |
| 1882978 | 919 | ADF BOARD ASSY.,ASP |
| 2200787 | 921 | REFLECTIVE PHOTO INTERRUPTER,PS126GL1 |
| 1800514 | 922 | LABEL,INSTRUCTION,ADF,B |
| 1800508 | 923 | LABEL,FUNCTION,ADF |
| 1800506 | 924 | LABEL,CAUTION,ADF |
| 1800510 | 925 | LABEL,INSTRUCTION,RASF |
| 1840446 | 926 | ADF COVER ASSY.,NON EHC,B,ASP |
| 1883010 | 926 | ADF COVER ASSY.,NON EHC,B,ASP |
| 1831401 | 927 | COVER,LD,ADF,ASP |
| 1830066 | 928 | HOLDER,DAMPER,LD,ASSY.,CH35,IEI |
| 1114006 | 929 | E-RING,4,L/NA |
| 1825372 | 931 | LEVER,LOCK,ADF,ASSY,CH35,IEI(1839699) |
| 1830829 | 932 | EXTENTION SPRING,3.79 |
| Manual Name | WorkForce WF-C879R WF-C879Ra Parts Manual |
|---|---|
| Format | |
| PDF Archive | 15.3M |
| Pages | 9 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson WF-C879R WF-C879Ra Series |
