EPSON XP-202 XP-203 Parts Manual
In stock
SKU
EP-XP202-PM
$1.10
| Manual Name | EPSON XP-202 XP-203 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 2.32M |
| Pages | 4 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson XP-200 Series |
****** The following content is not included in the PDF manual, please use it online ******

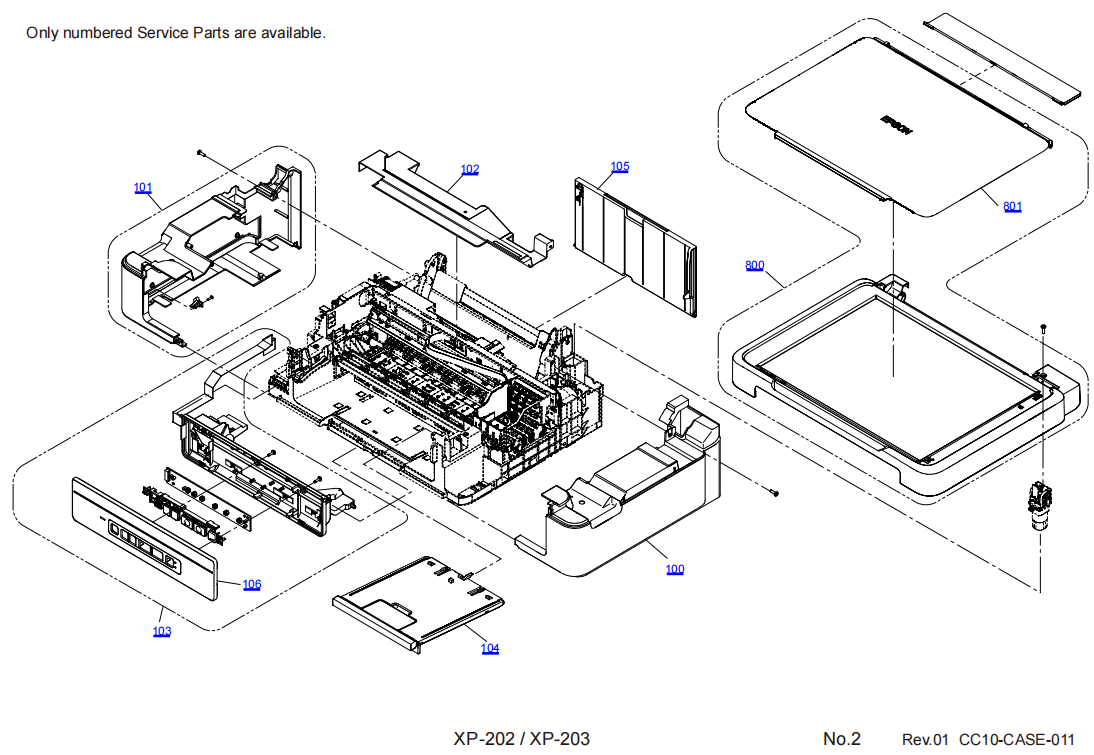

| Article | Reference | Description |
| 1580022 | 100 | HOUSING,RIGHT |
| 1572329 | 101 | HOUSING,LEFT |
| 1577162 | 102 | COVER,REAR,ICON |
| 1580010 | 103 | PANEL UNIT,H.,ASSY,IEI |
| 1569304 | 104 | STACKER ASSY.,CC05,EPPI |
| 1569308 | 105 | PAPER SUPPORT ASSY.,CC05,EPPI |
| 1569292 | 106 | HOUSING,PANEL,UPPER,H |
| 2140882 | 201 | BOARD ASSY.,MAIN |
| 2171673 | 202 | WIRELESS LAN USB MODULE |
| 2140467 | 204 | CR CONTACT MODULE |
| 2139742 | 205 | CONNECTOR,CSIC |
| 2179218 | 300 | POWER SUPPLY UNIT |
| 2121764 | 400 | POWER CABLE |
| 1548493 | 501 | LEVER,DETECTORPE |
| 1548500 | 502 | ROLLER,EJ |
| 1548501 | 503 | SPUR GEAR,31.2 |
| 1548502 | 504 | MOTOR ASSY.,PF |
| 2158910 | 505 | BOARD ASSY.,ENCORDER,PF,B |
| 1646107 | 506 | POROUS PAD,PAPER GUIDE,LOWER,D |
| 1569311 | 507 | HOLDER RETURD ASSY.,CC05,EPPI |
| 1576550 | 508 | FRAME PUMP ASSY,,CC03,EPPI |
| 1569313 | 509 | HOLDER STARWHEEL ASSY.,CC05,EPPI |
| 1569314 | 510 | SHAFT ROLLER LD ASSY.,CC05,EPPI |
| 1593349 | 511 | SCALE,CR |
| 1548480 | 512 | EXTENSION SPRING,1.41 |
| 1610594 | 513 | CAP ASSY.,CC05,EPPI,ASP |
| 1576548 | 514 | PAPER GUIDER FRONT ASSY.,CC03,EPPI |
| 1548481 | 515 | MOTOR ASSY,CR |
| 1569341 | 516 | PAPER,GUIDE,UPPER ASSY.,CC05,EPPI |
| 1630382 | 517 | CR ASSY.,CC05,EPPI,ASP |
| 2145560 | 518 | CABLE,HEAD,O2 |
| 2150123 | 519 | CABLE,CSIC,O2,B |
| 1549887 | 520 | LEVER,PAPER BACK |
| 1548518 | 521 | SCALE,PF |
| 1595930 | 522 | ROLLER PF ASSY.,LOCAL,EPPI |
| 1577172 | 523 | TIMING BELT,CR |
| 2145562 | 525 | CABLE,PIS |
| 2150454 | 526 | BOARD ASSY.,SUB |
| 1548528 | 527 | CLUTCH |
| 1548529 | 528 | SPUR GEAR,37.2 |
| 1548530 | 529 | EXTENSION SPRING,0.137 |
| 1595847 | 537 | HOLDER,FFC |
| F197010 | 700 | PRINT HEAD |
| 1567191 | 701 | HOLDER,BOARD |
| 1598289 | 702 | HOPPER ASSY.,CC87,EPPI |
| 1639535 | 703 | TRAY POROUSPAD,ASSY.,CD91,EPPI |
| 1571705 | 704 | COMPRESSION SPRING,4.36 |
| 1595843 | 706 | COVER,CABLE,HEAD |
| 2152786 | 800 | SCANNER UNIT.,B,CC10,EPPI |
| 1570619 | 801 | COVER DOCUMENT ASSY.,CC04,EPPI |
