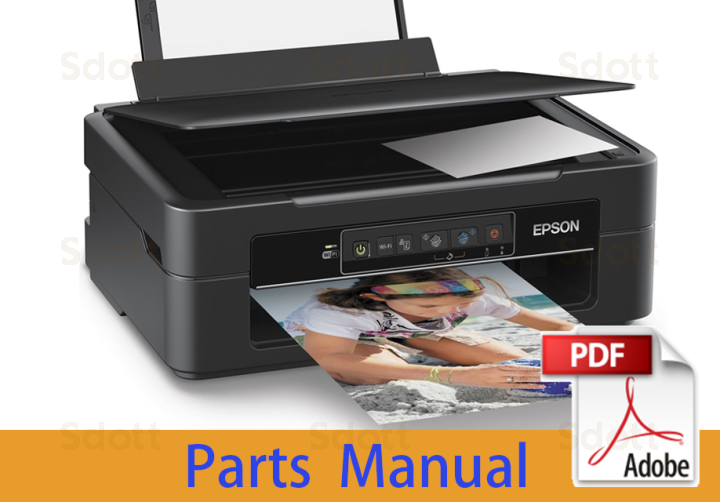

EPSON XP-215 Parts Manual

In stock
SKU
EP-XP215-PM
$1.20
  • Email with download link immediately
  • Files without viruses
  • PDF format service manual
  • Allow high-definition printing
Links
$1.20
More Information
Manual Name EPSON XP-215 Parts Manual
Format PDF
PDF Archive 1.58M
Pages 4
Type SERVICE or PARTS MANUAL
Compatible Model EPSON XP-215 Series




****** The following content is not included in the PDF manual, please use it online ******

Model Article Reference Description
EXPRESSION HOME XP-215 1568269 100 HOUSING,RIGHT
EXPRESSION HOME XP-215 1701234 100 HOUSING,RIGHT
EXPRESSION HOME XP-215 1568270 101 HOUSING,LEFT
EXPRESSION HOME XP-215 1577162 102 COVER,REAR,ICON
EXPRESSION HOME XP-215 1596498 103 PANEL ASSY.,C,CC90,EPPI
EXPRESSION HOME XP-215 1684717 103 PANEL ASSY.,C,CC90,EPPI
EXPRESSION HOME XP-215 1595377 104 STACKER
EXPRESSION HOME XP-215 1569308 105 PAPER SUPPORT ASSY.,CC05,EPPI
EXPRESSION HOME XP-215 1593513 106 HOUSING,PANEL
EXPRESSION HOME XP-215 1610790 107 STAND,SC,B
EXPRESSION HOME XP-215 1576993 108 TORSION SPRING,25.37
EXPRESSION HOME XP-215 1599251 109 LABEL,MODEL NAME,XP-215
EXPRESSION HOME XP-215 2158978 200 BOARD ASSY.,MAIN
EXPRESSION HOME XP-215 2149068 200 Ersetzt durch: 2158978
EXPRESSION HOME XP-215 2152527 202 WIRELESS LAN USB MODULE
EXPRESSION HOME XP-215 2167573 202 WIRELESS LAN USB MODULE
EXPRESSION HOME XP-215 2140467 204 CR CONTACT MODULE
EXPRESSION HOME XP-215 2139742 205 CONNECTOR,CSIC
EXPRESSION HOME XP-215 2153844 300 Ersetzt durch: 2153883
EXPRESSION HOME XP-215 2107708 400 POWER CABLE
EXPRESSION HOME XP-215 1548493 501 LEVER,DETECTORPE
EXPRESSION HOME XP-215 1548500 502 ROLLER,EJ
EXPRESSION HOME XP-215 1598334 504 MOTOR ASSY,PF
EXPRESSION HOME XP-215 1548519 505 BOARD ASSY.,ENCORDER,PF
EXPRESSION HOME XP-215 1597491 506 POROUS PAD,PAPER GUIDE,FRONT,LOWER,C
EXPRESSION HOME XP-215 1646107 506 POROUS PAD,PAPER GUIDE,FRONT,LOWER,C
EXPRESSION HOME XP-215 1569311 507 HOLDER RETURD ASSY.,CC05,EPPI
EXPRESSION HOME XP-215 1576550 508 FRAME PUMP ASSY,,CC03,EPPI
EXPRESSION HOME XP-215 1569313 509 HOLDER STARWHEEL ASSY.,CC05,EPPI
EXPRESSION HOME XP-215 1569314 510 SHAFT ROLLER LD ASSY.,CC05,EPPI
EXPRESSION HOME XP-215 1593349 511 SCALE,CR
EXPRESSION HOME XP-215 1610594 513 CAP ASSY.,CC05,EPPI,ASP
EXPRESSION HOME XP-215 1576548 514 PAPER GUIDER FRONT ASSY.,CC03,EPPI
EXPRESSION HOME XP-215 1598331 515 MOTOR ASSY,CR
EXPRESSION HOME XP-215 1569341 516 PAPER,GUIDE,UPPER ASSY.,CC05,EPPI
EXPRESSION HOME XP-215 1606532 517 CR ASSY.,O2,PIS,B,CC90,ASP
EXPRESSION HOME XP-215 2145560 518 CABLE,HEAD,O2
EXPRESSION HOME XP-215 2150123 519 CABLE,CSIC,O2,B
EXPRESSION HOME XP-215 1549887 520 LEVER,PAPER BACK
EXPRESSION HOME XP-215 1548518 521 SCALE,PF
EXPRESSION HOME XP-215 1598297 522 ROLLER PF ASSY.,CC87,EPPI
EXPRESSION HOME XP-215 1577172 523 TIMING BELT,CR
EXPRESSION HOME XP-215 2145562 525 CABLE,PIS ASSY.,CC29,EPPI
EXPRESSION HOME XP-215 2150454 526 BOARD ASSY.,SUB
EXPRESSION HOME XP-215 1548528 527 CLUTCH
EXPRESSION HOME XP-215 1548529 528 SPUR GEAR,37.2
EXPRESSION HOME XP-215 1548530 529 EXTENSION SPRING,0.137
EXPRESSION HOME XP-215 F197010 700 PRINT HEAD
EXPRESSION HOME XP-215 1567191 701 HOLDER,BOARD
EXPRESSION HOME XP-215 1596495 702 HOPPER ASSY.,CC90,EPPI
EXPRESSION HOME XP-215 1569310 703 Ersetzt durch: 1639535
EXPRESSION HOME XP-215 1639535 703 TRAY POROUSPAD,ASSY.,CC05,EPPI
EXPRESSION HOME XP-215 1495647 704 COMPRESSION SPRING,3.43
EXPRESSION HOME XP-215 1569226 705 LABEL,INK POSITION
EXPRESSION HOME XP-215 2154846 800 Ersetzt durch: 2159372
EXPRESSION HOME XP-215 2159372 800 SCANNER UNIT,CC93,ASP
EXPRESSION HOME XP-215 1598958 801 COVER DOCUMENT ASSY.,CC90,EPPI
EXPRESSION HOME XP-215 1710203 801 COVER DOCUMENT ASSY.,CC90,EPPI
EXPRESSION HOME XP-215 1033657 NON FIG GREASE G-45
EXPRESSION HOME XP-215 1480655 NON FIG GREASE G-71(BLUE)
EXPRESSION HOME XP-215 1409257 NON FIG GREASE G-74
EXPRESSION HOME XP-215 1462531 NON FIG I/P,DPIC009BSP,110,PRINTING
EXPRESSION HOME XP-215 1578752 NON FIG INK CART.UNBOXED,BK,PIG'T,2710MEC,180,AS
EXPRESSION HOME XP-215 1578753 NON FIG INK CART.UNBOXED,C,DYE,2710M,EC,180,AS
EXPRESSION HOME XP-215 1578754 NON FIG INK CART.UNBOXED,M,DYE,2710M,EC,180,AS
EXPRESSION HOME XP-215 1578755 NON FIG INK CART.UNBOXED,Y,DYE,2710M,EC,180,AS
EXPRESSION HOME XP-215 6104714 NON FIG SHIPPING CLEANING LIQUID,CR06A,18kg
EXPRESSION HOME XP-215 6104713 NON FIG SHIPPING CLEANING LIQUID,CR06A,1kg
EXPRESSION HOME XP-215 1294120 NON FIG SONIC TENSION METER U507
