EPSON XP-235 Parts Manual
In stock
SKU
EP-XP235-PM
$1.50
- Download link sent instantly via email
- Virus-free & safe files
- Manual in PDF format
- Supports high-definition printing
EPSON XP-235 Parts Manual
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******

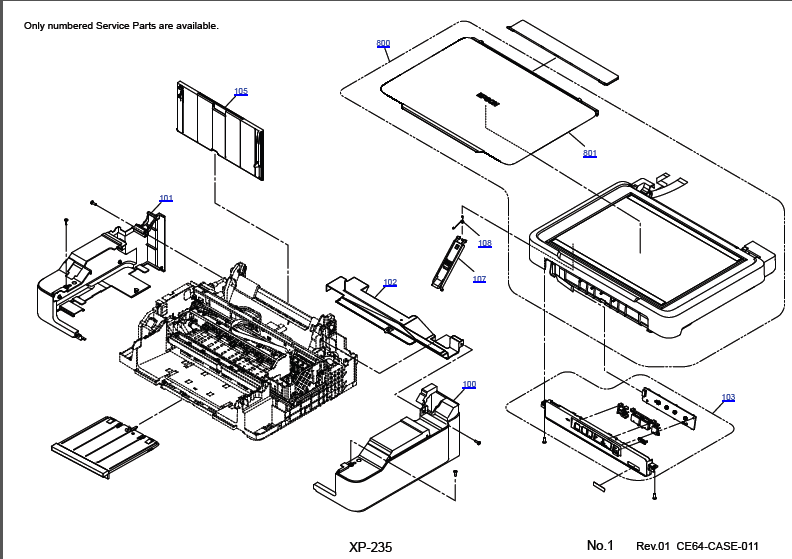

| Model | Article | Reference | Description |
| EXPRESSION HOME XP-235 | 1568269 | 100 | HOUSING,RIGHT |
| EXPRESSION HOME XP-235 | 1701234 | 100 | HOUSING,RIGHT |
| EXPRESSION HOME XP-235 | 1568270 | 101 | HOUSING,LEFT |
| EXPRESSION HOME XP-235 | 1577162 | 102 | COVER,REAR,ICON |
| EXPRESSION HOME XP-235 | 1657165 | 103 | Ersetzt durch: 1683993 |
| EXPRESSION HOME XP-235 | 1683993 | 103 | PANEL ASSY,CE64,EPPI |
| EXPRESSION HOME XP-235 | 1569308 | 105 | PAPER SUPPORT ASSY.,CC05,EPPI |
| EXPRESSION HOME XP-235 | 1610790 | 107 | STAND,SC,B |
| EXPRESSION HOME XP-235 | 1576993 | 108 | TORSION SPRING,25.37 |
| EXPRESSION HOME XP-235 | 2168521 | 200 | BOARD ASSY.,MAIN |
| EXPRESSION HOME XP-235 | 2173140 | 200 | BOARD ASSY.,MAIN |
| EXPRESSION HOME XP-235 | 2171395 | 202 | WIRELESS LAN USB MODULE |
| EXPRESSION HOME XP-235 | 2172190 | 202 | WIRELESS LAN USB MODULE |
| EXPRESSION HOME XP-235 | 2181974 | 202 | WIRELESS LAN USB MODULE |
| EXPRESSION HOME XP-235 | 2140467 | 204 | CR CONTACT MODULE |
| EXPRESSION HOME XP-235 | 2139742 | 205 | CONNECTOR,CSIC |
| EXPRESSION HOME XP-235 | 2147874 | 300 | POWER SUPPLY UNIT |
| EXPRESSION HOME XP-235 | 1548493 | 501 | LEVER,DETECTORPE |
| EXPRESSION HOME XP-235 | 2158910 | 505 | BOARD ASSY.,ENCORDER,PF,B |
| EXPRESSION HOME XP-235 | 1646107 | 506 | POROUS PAD,PAPER GUIDE,LOWER,D |
| EXPRESSION HOME XP-235 | 1569311 | 507 | HOLDER RETURD ASSY.,CC05,EPPI |
| EXPRESSION HOME XP-235 | 1576550 | 508 | FRAME PUMP ASSY,,CC03,EPPI |
| EXPRESSION HOME XP-235 | 1569314 | 510 | SHAFT ROLLER LD ASSY.,CC05,EPPI |
| EXPRESSION HOME XP-235 | 1593349 | 511 | SCALE,CR |
| EXPRESSION HOME XP-235 | 1610594 | 513 | CAP ASSY.,CC05,EPPI,ASP |
| EXPRESSION HOME XP-235 | 1576548 | 514 | PAPER GUIDER FRONT ASSY.,CC03,EPPI |
| EXPRESSION HOME XP-235 | 1598331 | 515 | MOTOR ASSY,CR |
| EXPRESSION HOME XP-235 | 1640526 | 517 | CR ASSY.,O2,PIS,CD91,EPPI,ASP |
| EXPRESSION HOME XP-235 | 2145560 | 518 | CABLE,HEAD,O2 |
| EXPRESSION HOME XP-235 | 2150123 | 519 | CABLE,CSIC,O2,B |
| EXPRESSION HOME XP-235 | 1548518 | 521 | SCALE,PF |
| EXPRESSION HOME XP-235 | 2145562 | 525 | CABLE,PIS |
| EXPRESSION HOME XP-235 | 2150454 | 526 | BOARD ASSY.,SUB |
| EXPRESSION HOME XP-235 | 1548528 | 527 | CLUTCH |
| EXPRESSION HOME XP-235 | 1548529 | 528 | SPUR GEAR,37.2 |
| EXPRESSION HOME XP-235 | 1548530 | 529 | EXTENSION SPRING,0.137 |
| EXPRESSION HOME XP-235 | 1548494 | 531 | EXTENSION SPRING,0.067 |
| EXPRESSION HOME XP-235 | F197010 | 700 | PRINT HEAD |
| EXPRESSION HOME XP-235 | 1567191 | 701 | HOLDER,BOARD |
| EXPRESSION HOME XP-235 | 1639535 | 703 | TRAY POROUSPAD,ASSY.,CD91,EPPI |
| EXPRESSION HOME XP-235 | 1569226 | 705 | LABEL,INK POSITION |
| EXPRESSION HOME XP-235 | 1595843 | 706 | COVER,CABLE,HEAD |
| EXPRESSION HOME XP-235 | 2172011 | 800 | SCANNER UNIT.,CE64,EPPI,ASP |
| EXPRESSION HOME XP-235 | 1598958 | 801 | COVER DOCUMENT ASSY.,CC90,EPPI |
| EXPRESSION HOME XP-235 | 1710203 | 801 | COVER DOCUMENT ASSY.,CC90,EPPI |
| EXPRESSION HOME XP-235 | 1033657 | NON FIG | GREASE G-45 |
| EXPRESSION HOME XP-235 | 1480655 | NON FIG | GREASE G-71(BLUE) SDOTT.COM |
| EXPRESSION HOME XP-235 | 1590700 | NON FIG | GREASE,G-96 (40g) |
| EXPRESSION HOME XP-235 | 1462531 | NON FIG | I/P,DPIC009BSP,110,PRINTING |
| EXPRESSION HOME XP-235 | 1672729 | NON FIG | INK CART.UNBOXED,BK,PIG'T,2710NEEC298AS |
| EXPRESSION HOME XP-235 | 1672730 | NON FIG | INK CART.UNBOXED,C,DYE,2710NEEC298AS |
| EXPRESSION HOME XP-235 | 1672731 | NON FIG | INK CART.UNBOXED,M,DYE,2710NEEC298AS |
| EXPRESSION HOME XP-235 | 1672732 | NON FIG | INK CART.UNBOXED,Y,DYE,2710NEEC298AS |
| EXPRESSION HOME XP-235 | 2150401 | NON FIG | POWER CABLE |
| EXPRESSION HOME XP-235 | 6104714 | NON FIG | SHIPPING CLEANING LIQUID,CR06A,18kg |
| EXPRESSION HOME XP-235 | 6104713 | NON FIG | SHIPPING CLEANING LIQUID,CR06A,1kg |
| EXPRESSION HOME XP-235 | 1640645 | NON FIG | SONIC TENSION METER U508 |
| Manual Name | EPSON XP_235 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 2.77M |
| Pages | 3 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON XP-235 Series |
