EPSON XP-432/XP-435 Parts Manual

In stock
SKU
EP-XP432-PM
$1.20
  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing
Links
$1.20
More Information
Manual Name EPSON XP-432/XP-435 Parts Manual
Format PDF
PDF Archive 3.49M
Pages 3
Type SERVICE or PARTS MANUAL
Compatible Model EPSON XP-432/XP-435 Series




****** The following content is not included in the PDF manual, please use it online ******

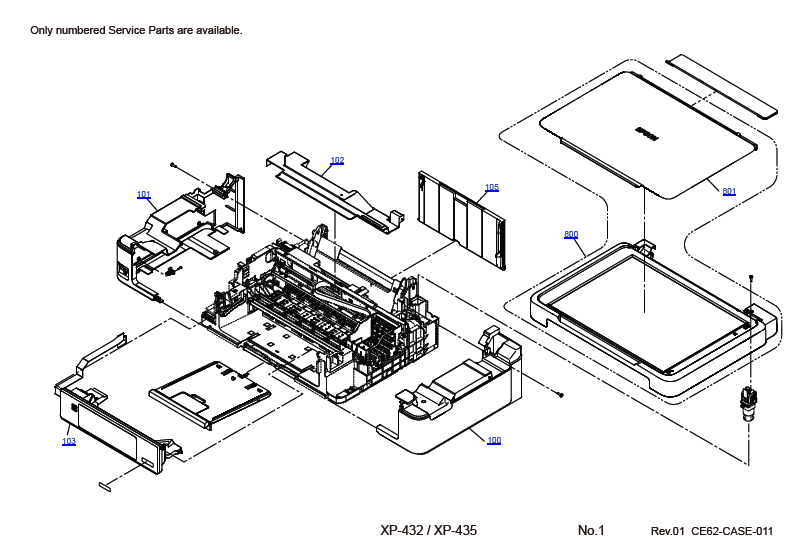

Model Article Reference Description
EXPRESSION HOME xp-432 1548586 100 HOUSING,RIGHT
EXPRESSION HOME xp-432 1628565 101 HOUSING,LEFT
EXPRESSION HOME xp-432 1628562 102 COVER,REAR
EXPRESSION HOME xp-432 1656751 103 PANEL UNIT
EXPRESSION HOME xp-432 1620221 105 PAPER SUPPORT ASSY.
EXPRESSION HOME xp-432 2168518 200 BOARD ASSY.,MAIN
EXPRESSION HOME xp-432 2188877 200 BOARD ASSY.,MAIN
EXPRESSION HOME xp-432 2171395 202 WIRELESS LAN USB MODULE
EXPRESSION HOME xp-432 2172190 202 WIRELESS LAN USB MODULE
EXPRESSION HOME xp-432 2181974 202 WIRELESS LAN USB MODULE
EXPRESSION HOME xp-432 2168523 203 BOARD ASSY.,STORAGE
EXPRESSION HOME xp-432 2140467 204 CR CONTACT MODULE
EXPRESSION HOME xp-432 2139742 205 CONNECTOR,CSIC
EXPRESSION HOME xp-432 2147874 300 POWER SUPPLY UNIT
EXPRESSION HOME xp-432 1548493 501 LEVER,DETECTORPE
EXPRESSION HOME xp-432 2158910 505 BOARD ASSY.,ENCORDER,PF,B
EXPRESSION HOME xp-432 1646107 506 POROUS PAD,PAPER GUIDE,LOWER,D
EXPRESSION HOME xp-432 1620238 507 HOLDER RETARD ASSY.
EXPRESSION HOME xp-432 1620230 508 FRAME PUMP ASSY.
EXPRESSION HOME xp-432 1620229 510 SHAFT ROLLER LD ASSY.
EXPRESSION HOME xp-432 1593349 511 SCALE,CR
EXPRESSION HOME xp-432 1620231 513 CAP ASSY.
EXPRESSION HOME xp-432 1620233 514 PAPER GUIDE FRONT ASSY.
EXPRESSION HOME xp-432 1548481 515 MOTOR ASSY,CR
EXPRESSION HOME xp-432 1622473 517 CR ASSY.,CC87,METCO,ASP
EXPRESSION HOME xp-432 2150122 518 CABLE,HEAD,F2,35
EXPRESSION HOME xp-432 2149815 519 CABLE,CSIC,F2
EXPRESSION HOME xp-432 1548518 521 SCALE,PF
EXPRESSION HOME xp-432 2141062 525 CABLE,PIS
EXPRESSION HOME xp-432 2150454 526 BOARD ASSY.,SUB
EXPRESSION HOME xp-432 1548528 527 CLUTCH
EXPRESSION HOME xp-432 1548529 528 SPUR GEAR,37.2
EXPRESSION HOME xp-432 1548530 529 EXTENSION SPRING,0.137
EXPRESSION HOME xp-432 1548494 531 EXTENSION SPRING,0.067
EXPRESSION HOME xp-432 1628558 535 LEVER,DETECTOR,AP
EXPRESSION HOME xp-432 1628560 536 EXTENSION SPRING,0.04
EXPRESSION HOME xp-432 1628559 538 ROLLER,LEVER,DETECTOR,AP
EXPRESSION HOME xp-432 2157770 540 BOARD ASSY.,SNS
EXPRESSION HOME xp-432 1628555 543 HOLDER,LEVER,DETECTOR,AP
EXPRESSION HOME xp-432 FA04000 700 PRINT HEAD,ID1510
EXPRESSION HOME xp-432 1567191 701 HOLDER,BOARD
EXPRESSION HOME xp-432 1638405 703 TRAY POROUS PAD ASSY.,CD87
EXPRESSION HOME xp-432 1569226 705 LABEL,INK POSITION
EXPRESSION HOME xp-432 1595846 706 COVER,CABLE,HEAD,F2
EXPRESSION HOME xp-432 2172069 800 SCANNER UNIT,CE62,METCO,ASP
EXPRESSION HOME xp-432 2175254 800 SCANNER UNIT,CE62,METCO,ASP
EXPRESSION HOME xp-432 1620372 801 COVER DOCUMENT,B ASSY.
EXPRESSION HOME xp-432 1033657 NON FIG GREASE G-45
EXPRESSION HOME xp-432 1480655 NON FIG GREASE G-71(BLUE)
EXPRESSION HOME xp-432 1590700 NON FIG GREASE,G-96 (40g)
EXPRESSION HOME xp-432 1462531 NON FIG I/P,DPIC009BSP,110,PRINTING
EXPRESSION HOME xp-432 1672729 NON FIG INK CART.UNBOXED,BK,PIG'T,2710NEEC298AS SDOTT.COM
EXPRESSION HOME xp-432 1672730 NON FIG INK CART.UNBOXED,C,DYE,2710NEEC298AS
EXPRESSION HOME xp-432 1672731 NON FIG INK CART.UNBOXED,M,DYE,2710NEEC298AS
EXPRESSION HOME xp-432 1672732 NON FIG INK CART.UNBOXED,Y,DYE,2710NEEC298AS
EXPRESSION HOME xp-432 2150401 NON FIG POWER CABLE
EXPRESSION HOME xp-432 6104714 NON FIG SHIPPING CLEANING LIQUID,CR06A,18kg
EXPRESSION HOME xp-432 6104713 NON FIG SHIPPING CLEANING LIQUID,CR06A,1kg
EXPRESSION HOME xp-432 1640645 NON FIG SONIC TENSION METER U508
