EPSON XP-442 XP-445 Parts Manual

In stock
SKU
EP-XP442-PM
$1.10
  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing
Links
$1.10
More Information
Manual Name EPSON XP-442 XP-445 Parts Manual
Format PDF
PDF Archive 3.59M
Pages 4
Brand EPSON
Type SERVICE or PARTS MANUAL
Compatible Model Epson XP-400 Series




****** The following content is not included in the PDF manual, please use it online ******

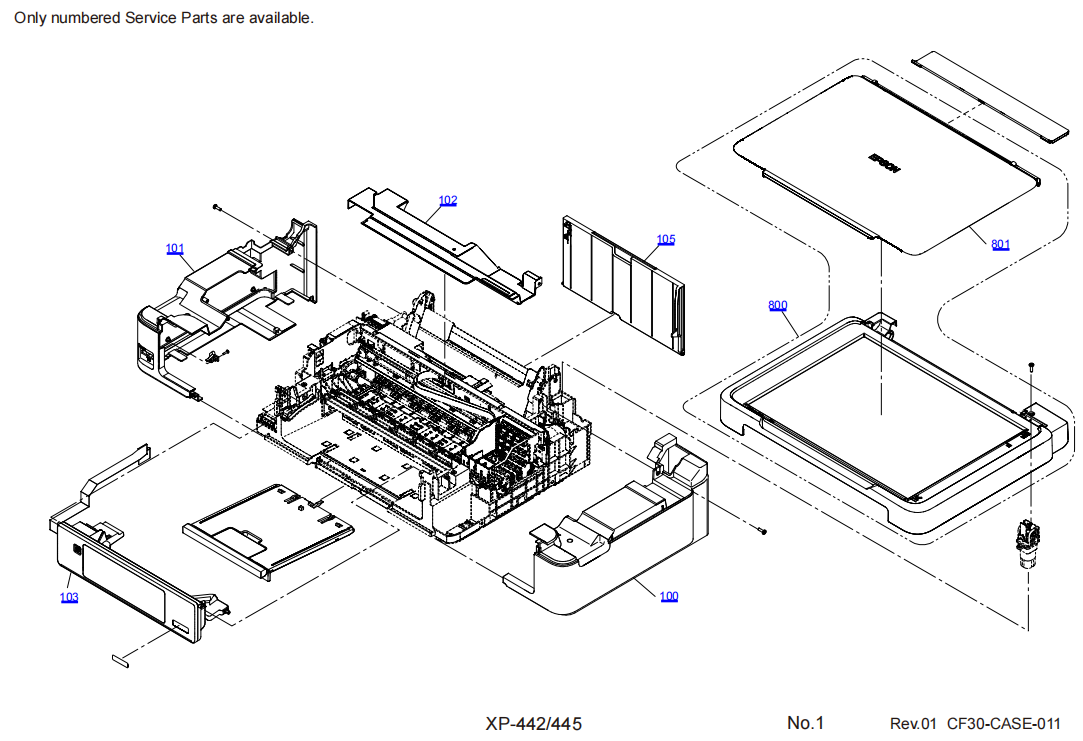

Article Reference Description
1548586 100 HOUSING,RIGHT
1628565 101 HOUSING,LEFT
1628562 102 COVER,REAR
1656751 103 PANEL UNIT
1620221 105 PAPER SUPPORT ASSY.
2189383 200 BOARD ASSY.,MAIN
2192160 202 WIRELESS LAN USB MODULE
2168523 203 BOARD ASSY.,STORAGE
2140467 204 CR CONTACT MODULE
2139742 205 CONNECTOR,CSIC
2179218 300 POWER SUPPLY UNIT
1548493 501 LEVER,DETECTORPE
2158910 505 BOARD ASSY.,ENCORDER,PF,B
1646107 506 POROUS PAD,PAPER GUIDE,LOWER,D
1620238 507 HOLDER RETARD ASSY.
1620230 508 FRAME PUMP ASSY.
1620229 510 SHAFT ROLLER LD ASSY.
1593349 511 SCALE,CR
1620231 513 CAP ASSY.
1620233 514 PAPER GUIDE FRONT ASSY.
2176501 515 MOTOR ASSY,CR
1702935 517 CR ASSY.,CF30,METCO,ASP
2150122 518 CABLE,HEAD,F2,35
2149815 519 CABLE,CSIC,F2
2150124 519 CABLE,CSIC,F2
1548518 521 SCALE,PF
2145562 525 CABLE,PIS
2150454 526 BOARD ASSY.,SUB
1548528 527 CLUTCH
1548529 528 SPUR GEAR,37.2
1548530 529 EXTENSION SPRING,0.137
1548494 531 EXTENSION SPRING,0.067
1548561 533 LEVER,LOCK,SLIDER
1628558 535 LEVER,DETECTOR,AP
1628560 536 EXTENSION SPRING,0.04
1628559 538 ROLLER,LEVER,DETECTOR,AP
2157770 540 BOARD ASSY.,SNS
1628555 543 HOLDER,LEVER,DETECTOR,AP
FA04040 700 Ersetzt durch: FA04060
1567191 701 HOLDER,BOARD
1638405 703 TRAY POROUS PAD ASSY.,CD87
1569226 705 LABEL,INK POSITION
1595846 706 COVER,CABLE,HEAD,F2
2179562 800 SCANNER UNIT,METCO,ASP
1694111 801 COVER DOCUMENT ASSY.
EPSON XP-442 XP-445 Parts Manual
