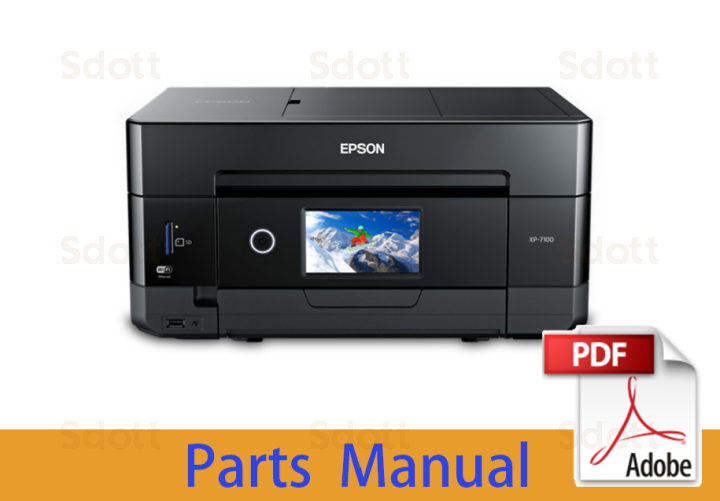

main product photo

Parts Manual for EPSON XP-7100 XP-7101

In stock
SKU
EP-XP7100-PM
$1.10
Compare
Email

Share it:

  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing

Share it:

Links
$1.10



*****   The following content is not included in the PDF manual   *****

*****   Please refer to the details ONLINE   ******

ArticleReferenceDescription

1751919100HOUSING,FRONT,TOP,CH03., ASSY,IEI
1751896101HOUSING,LOWER,LEFT,,CH03,ASSY,IEI
1763387102HOUSING,UPPER,G,ASSY,ASP
1749523104Ersetzt durch: 1830343
1830343104HOUSING,FRONT,LEFT,C
1631648105HOUSING,FRONT,LOWER,LEFT,B
1637506106FRAME,BASE,LEFT,ASSY,ASP,F,IEI
1733187107FRAME,BASE,RIGHT,D, ASSY,ASP
1749520108HOUSING,FRONT,RIGHT,R
1751892109PANEL,CH03.,ASSY,IEI
1662117110FRAME,PANEL,CE78,ASSY,IEI
1645532113HOUSING,FRONT,LOWER,RIGHT,B,ASP
1577369115COMPRESSION SPRING,0.084
1751895200MAIN BOARD ASSY,.CH03,IEI
2142550202BOARD ASSY.,SUB
2142560204HARNESS
2159109205HARNESS MAIN-SUBB,2159109-01
2159099206BOARD ASSY.,SUB
1751897207HOUSING,FRONT,LEFT.,CH03,ASSY,IEI
2159107208HARNESS MAIN-SUB,2159107-01
2159097209BOARD ASSY.,SUB 6843A,CD94/CD95/CD96/CD99/CE00
2194158210WIRELESS LAN USB MODULE
2183047211HARNESS MAIN-STG,2183047-01
2194837300BOARD ASSY.,POWER SUPPLY 6669C,Refer to board assembly
1572503501FOOT
1575721502HINGE,ASSY.,ADF
1632058503PAPER GUIDE,FRAME,BANK ASSY
1768910504DUPLEX,UNIT.CG99,IEI[ 1751924]
1577864505COVER,MSF ASSY
1720482506FRAME,MSF.,CG15,ASSY,IEI
1611102507TRAY,POROUS PAD,INK EJECT,,D,ASSY
1595474508INK,SYSTEM,,B,ASSY
1436642509CLAMP,TUBE
1573556510POROUS PAD,INK EJECT,IS,LOWER
1763394511CASSETTE,PHOTO.,CG16,ASSY,IEI,ASP
1763391512CASSETTE,CH03,ASSY,IEI,ASP
1765261513COVER,CASSETTE,ASSY,ASP
1735347514TRAY,BD
1629883515STACKER,MAIN
1577837516SHAFT,STACKER,DRIVE ASSY
1571813517SLIDER,TRANSMISSION,LEFT
1572243519TORSION SPRING,25.39,LEFT
1761729520HOLDER,STAR WHEEL,CG98,ASSY
1572244521TORSION SPRING,44.24,RIGHT
1571772522TORSION SPRING,5.1
1662106523PAPER GUIDE,FRONT,,CE78,ASSY,IEI
1607102524COVER,CLIP,B
1571762525POROUS PAD,PAPER GUIDE,LOWER
1611329526SCALE,CR,B
1572225528COVER,CR,FRONT
1632596529CONNECTOR,CSIC,B,ASSY
1589856530CABLE HEAD,ASSY,ASP
1611533531GUIDE,IC,B
1589857532COVER,FFC ASSY,ASP
1638191533ENCODER,PF,E ASSY
1577835534HOLDER,CAM ASSY
1612525535PAPER GUIDE,UPPER,INNER,B,ASSY
1577851536PAPER GUIDE,UPPER,OUTER ASSY
1577469539POROUS PAD,PAPER GUIDE,LOWER,E
1571763541POROUS PAD,PAPER GUIDE,LOWER,B
1752332542FRAME,PICKUP.,CH03,UNIT,IEI
1577824544HOLDER,DETECTOR,CASSETTE,PHOTO ASSY
2143464545PHOTO INTERRUPTER
1607398547SPUR GEAR,14.4,B
1607397548SPUR GEAR,17.6,B
1612529549DUAL ONE WAY CLUTCH,B,ASSY
1607392550COMPRESSION SPRING,0.57
1572152551SHAFT,DRIVE,PICKUP
2144455552CABLE,ENCODER,B
2165120553CABLE,CRCM
1572125559COVER,PE,FRAME,BANK
1576559563CENTER SUPPORT,EJ
1572235564TIMING BELT,CR
2109393565BOARD ASSY.,DETECTOR,PW,B
2140849568CR CONTACT MODULE
2154774569BOARD ASSY.,SENSOR
2154772570BOARD ASSY.,SENSOR
5130574701PAD,SHEET,CR
5130846702PAD,CR,B
1763388800SCANNER UNIT,CH03,IEI,ASP
1751883802CARRIAGE,CIS,SC,B,ASSY
1575744803HOUSING,LOWER,REAR,LEFT,SC
1575745804HOUSING,LOWER,REAR,RIGHT,SC
1575720807COVER,REAR,LEFT,ADF
1575719808COVER,REAR,RIGHT,ADF
1763389900ADF UNIT,CH03,IEI,ASP
1753447901COVER,ADF,C,ASSY,IEI
1753077902COVER,REAR,ADF,C
1749142903COVER,DOCUMENT,SUPPORT,ADF
1749141904COVER,STACKER,ADF
1577803905PAD,ADF ASSY
1751861906DOCUMENT,SUPPORT,ADF ASSY
1749144907BASE,ADF
1749143909COVER,RIGHT,ADF
1575718910GUIDE,HINGE
1763393911COVER,FRONT,ADF,ASSY,ASP
1751865912MOUNTING PLATE,MAT,CH03,ASSY,IEI

More Information
Manual Name XP-7100 XP-7101 Parts Manual
Format PDF
PDF Archive 6.76M
Pages 5
Type SERVICE or PARTS MANUAL
Compatible Model Epson XP-7100 Series
