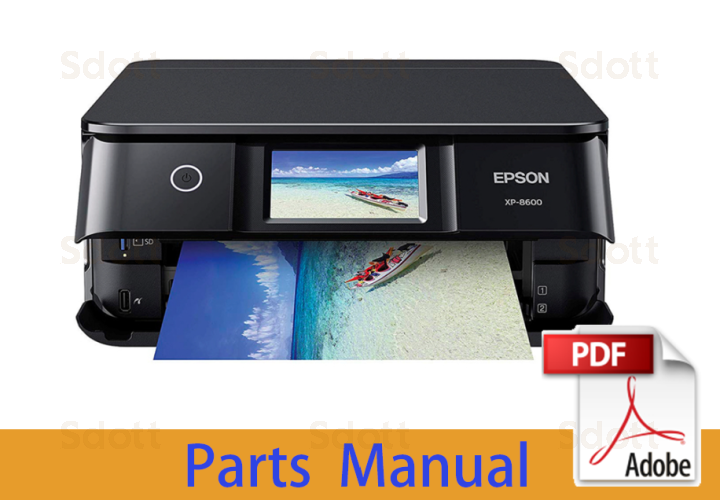

EPSON XP-8600 XP-8605 XP-8606 EP-882AB EP-882AW EP-882AR Parts Manual
In stock
SKU
EP-XP8600-PM
$1.10
| Manual Name | EPSON XP-8600 XP-8605 XP-8606 EP-882AB EP-882AW EP-882AR Parts Manual |
|---|---|
| Format | |
| PDF Archive | 5.50M |
| Pages | 6 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson XP-8600 Series |
****** The following content is not included in the PDF manual, please use it online ******
| Article | Reference | Description |
| 1738574 | 100 | HOUSING,FRONT,RIGHT,B,ASSY,ASP |
| 1795351 | 101 | HOUSING,LEFT,W/W |
| 1723531 | 102 | COVER,ASF,B |
| 1723522 | 103 | HOUSING,UPPER,REAR,B |
| 1764033 | 104 | HOUSING,RIGHT,ASSY,ASP |
| 1738571 | 105 | HOUSING,UPPER,FRONT,B ASSY:ASP |
| 1738573 | 106 | HOUSING LOWER RIGHT ASSY,ASP |
| 1792149 | 107 | PANEL ASSY CH47:C:IEI |
| 1725030 | 108 | FOOT,8.5x8.5x5 |
| 1711722 | 109 | HINGE,COVER,ASF,ASSY,ASP |
| 1735352 | 110 | COVER ASF ASSY,A,CG17 |
| 1694957 | 111 | COMPRESSION SPRING,1.25 |
| 1790244 | 200 | HOUSING LOWER LEFT ASSY B:CH47:IEI |
| 2194848 | 300 | BOARD ASSY.,POWER SUPPLY 7107A,CG17/CG18/CG97 STANDARD |
| 2194158 | 350 | WIRELESS LAN USB MODULE |
| 2177247 | 351 | BOARD ASSY.,SUB |
| 1812984 | 352 | CARD SLOT ASSY B ,CH47,IEI,ASP |
| 2177255 | 353 | HARNESS |
| 2190318 | 354 | HARNESS |
| 2177254 | 355 | HARNESS |
| 1735368 | 356 | CONNECTOR ASSY,CG17 |
| 2199254 | 357 | HARNESS |
| 1699755 | 501 | PICK UP ASSY |
| 1693910 | 502 | STACKER,MAIN |
| 1284698 | 503 | H.N.-1,3,F/ZN-3C |
| 2184617 | 504 | BOARD ASSY.,SNS |
| 2177132 | 505 | CABLE,DETECTOR,PW |
| 1699896 | 506 | ASF BANK ASSY |
| 1768260 | 507 | STARWHEEL ASSY,CH00,IEI |
| 1699852 | 508 | PGF ASSY |
| 1764069 | 509 | CARRIAGE ASSY,CG17,B,IEI,ASP |
| 2183681 | 510 | MOTOR,ASSY,CR |
| 1723309 | 511 | SCALE,CR |
| 2183259 | 512 | BOARD ASSY.,SNS |
| 1775867 | 513 | MSF LOWER ASSY,B,CG17 |
| 1729966 | 514 | PGU CENTER ASSY RIGHT ASSY,CF15,IEI |
| 1699882 | 515 | PGU CENTER ASSY LEFT ASSY |
| 1729967 | 516 | PGU ASSY,CF15,B,IEI |
| 2177110 | 518 | MOTOR ASSY.,IS |
| 2184507 | 519 | MOTOR ASSY.,ASF |
| 1693836 | 520 | POROUS PAD,IS,LOWER |
| 2147998 | 521 | BOARD ASSY.,SUB |
| 1693988 | 522 | POROUS PAD,FRAME,COVER,LOWER |
| 1755112 | 523 | FFC ASSY,B,IEI |
| 2170099 | 524 | BOARD ASSY.,ENC |
| 1693987 | 525 | POROUS PAD,PAPER GUIDE,LOWER,BRIDGE |
| 1725029 | 526 | FOOT,4x15x5 |
| 2184118 | 527 | CABLE,DETECTOR,PE,B |
| 1729855 | 528 | FRAME,PANEL,ASSY,B,CG17,IEI |
| 1693986 | 529 | POROUS PAD,PAPER GUIDE,LOWER |
| 1486341 | 530 | SPACER,4.3x0.5x8 |
| 2185132 | 531 | MOTOR ASSY.,PF |
| 1572184 | 583 | SPURGEAR,16,CASSETTE,PHOTO |
| 1693972 | 584 | SPUR GEAR,14.4,TRANSMISSION,PF |
| 1724211 | 585 | HOLDER,FFC |
| 1694240 | 586 | SPUR GEAR,12,REAR |
| 1723311 | 588 | TIMING BELT,CR |
| 2192563 | 589 | CABLE,ENCODER |
| FA28010 | 700 | PRINT HEAD,IF599V-1 |
| 1810246 | 701 | DUPLEX ASSY,J,CH00,IEI,ASP |
| 1813054 | 702 | CASSETTE CDR,UNIT,D,CH47:IEI,ASP |
| 1735309 | 703 | TRAY,BD |
| 1735667 | 704 | CASSETTE PHOTO ASSY,D,CF15,IEI |
| 1699784 | 706 | MSF UPPER ASSY |
| 1699773 | 707 | APG TRANS ASSY |
| 1775362 | 708 | INK SYSTEM ASSY,B:IEI |
| 5144319 | 710 | PAD,CR |
| 1724214 | 711 | GUIDE,IC |
| 1699745 | 712 | CSIC ASSY |
| 1694144 | 713 | COMBINATION GEAR,22.4,17.5 |
| 1283937 | 714 | C.B.P-TITE SCREW,2X8,F/ZN-3C |
| 1694173 | 715 | SHEET,PAPER GUIDE,ASF |
| 1694149 | 716 | RACK,DAMPER |
| 1694147 | 717 | SPUR GEAR,22.4 |
| 1694145 | 718 | SPUR GEAR,11.2 |
| 1694148 | 719 | CLUTCH,ONE WAY,DAMPER |
| 1694146 | 720 | SPUR GEAR,9.6 |
| 1694151 | 721 | DAMPER,00ZB |
| 1738260 | 722 | SHEET,PAPER GUIDE,ASB,B |
| 1724852 | 723 | FILM,HOLDER,FFC |
| 1764037 | 800 | SCANNER UNIT,A:CH00:IEI,ASP |
| 1735364 | 801 | COVER,DOCUMENT,,B,ASSY,CG17 |
