Parts Manual for EPSON Stylus Pro 9880 9880C 9450
In stock
SKU
EP-9880-PM
$1.20
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
Epson Stylus Pro 9880 9880C Series
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******

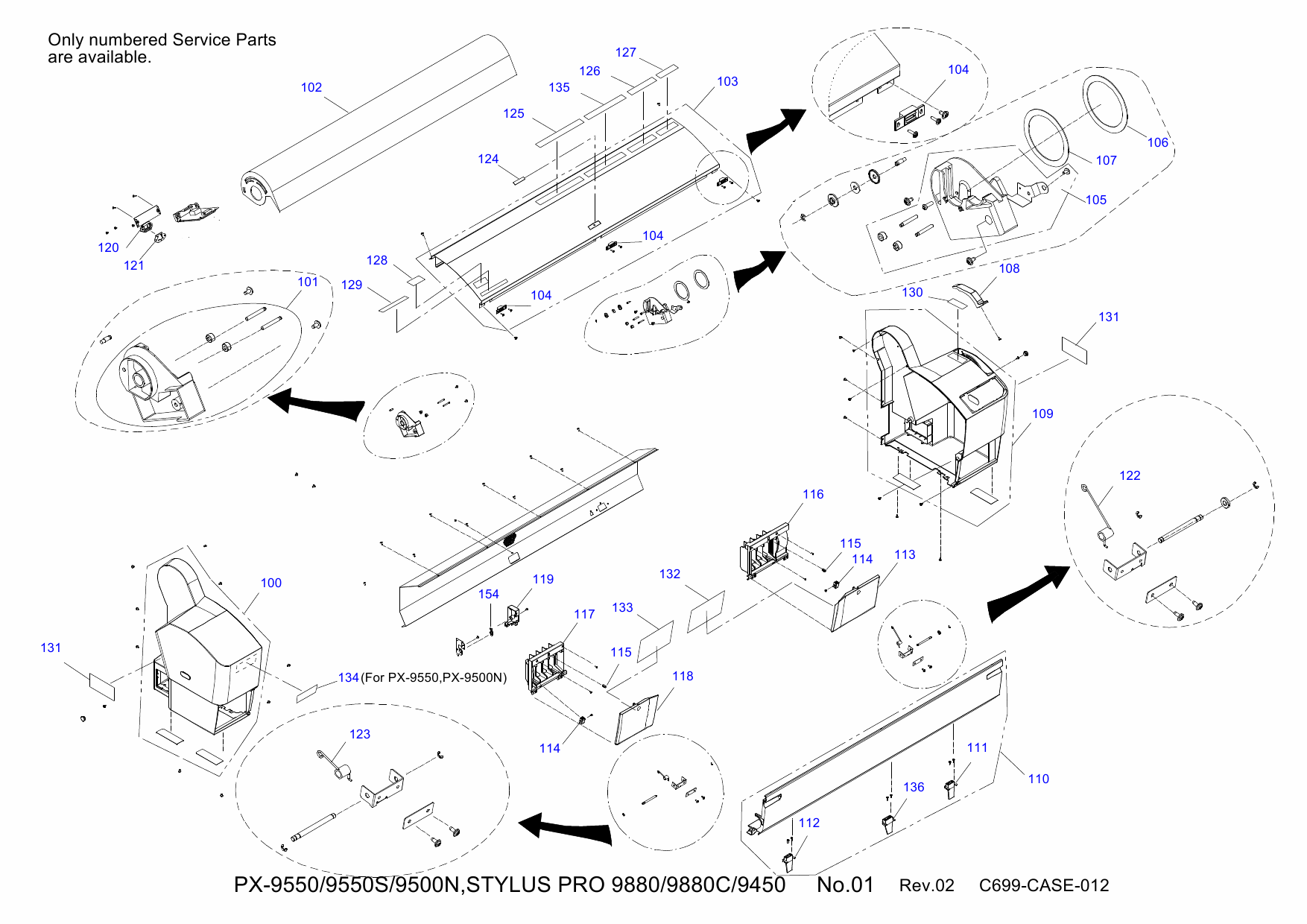

| STYLUS PRO 9880 | 1449299 | 100 | L SIDE COVER ASSY.,ASP | |||
| STYLUS PRO 9880 | 1449294 | 101 | ROLL TRAY L ASSY.,ASP | |||
| STYLUS PRO 9880 | 1441332 | 102 | TOP COVER,44 | |||
| STYLUS PRO 9880 | 1449309 | 103 | H TOP COVER ASSY.,44,ASP | |||
| STYLUS PRO 9880 | 1441277 | 104 | CATCH | |||
| STYLUS PRO 9880 | 1449293 | 105 | ROLL TRAY R ASSY.,ASP | |||
| STYLUS PRO 9880 | 1441879 | 106 | WAVE WASHER,I.W.T.W-60 | |||
| STYLUS PRO 9880 | 1441693 | 107 | DAMPER DISK BA | |||
| STYLUS PRO 9880 | 1441357 | 108 | PRESSURE LEVER KNOB | |||
| STYLUS PRO 9880 | 1449298 | 109 | R SIDE COVER ASSY.,ASP | |||
| STYLUS PRO 9880 | 1449310 | 110 | FRONT COVER ASSY.,44,ASP | |||
| STYLUS PRO 9880 | 1441665 | 111 | STOPPER R | |||
| STYLUS PRO 9880 | 1441664 | 112 | STOPPER L | |||
| STYLUS PRO 9880 | 1441326 | 113 | IH COVER R | |||
| STYLUS PRO 9880 | 1305019 | 114 | KNOB,I/C,LOCK LEVER,C593 | |||
| STYLUS PRO 9880 | 1043027 | 115 | MIN SIDE LOCK#091Y | |||
| STYLUS PRO 9880 | 1449300 | 116 | I/H COVER R ASSY.,ASP | |||
| STYLUS PRO 9880 | 1449301 | 117 | I/H COVER L ASSY.,ASP | |||
| STYLUS PRO 9880 | 1441325 | 118 | IH COVER L | |||
| STYLUS PRO 9880 | 1441662 | 119 | FRONT SENSOR COVER | |||
| STYLUS PRO 9880 | 1469116 | 120 | COVER,IF,CA00 | |||
| STYLUS PRO 9880 | 1469115 | 121 | GROUND PLATE,IF,CA00 | |||
| STYLUS PRO 9880 | 1441797 | 122 | FRONT COVER SPRING R,44 | |||
| STYLUS PRO 9880 | 1441798 | 123 | FRONT COVER SPRING L,44 | |||
| STYLUS PRO 9880 | 1305008 | 124 | LOGO PLATE,13X54,G | |||
| STYLUS PRO 9880 | 1474137 | 125 | LABEL,ROLL PAPER CHANGE | |||
| STYLUS PRO 9880 | 1474138 | 126 | LABEL,CUT PAPER SET | |||
| STYLUS PRO 9880 | 1406022 | 127 | LABEL,CUTTER CHANGE1 | |||
| STYLUS PRO 9880 | 1475434 | 128 | LABEL,ULTRA CHROME INK,K3VM,B | |||
| STYLUS PRO 9880 | 1472782 | 129 | LABEL,MODEL NAME | |||
| STYLUS PRO 9880 | 1407937 | 130 | LABEL,PAPER LEVER SET UP | |||
| STYLUS PRO 9880 | 1406026 | 131 | LABEL,HAND POSITION,44 | |||
| STYLUS PRO 9880 | 1471100 | 132 | LABEL,CHOKE CLEANING | |||
| STYLUS PRO 9880 | 1471102 | 133 | LABEL,CAUTION,TRANSPORT | |||
| STYLUS PRO 9880 | 1417758 | 135 | LABEL,BOARD PAPER SET | |||
| STYLUS PRO 9880 | 1441663 | 136 | STOPPER C | |||
| STYLUS PRO 9880 | 1441309 | 150 | P-GUIDE U,44 | |||
| STYLUS PRO 9880 | 1475981 | 151 | PGUIDE L ASSY.,44+,ASP | |||
| STYLUS PRO 9880 | 1441336 | 152 | PLASTIC HANDLE | |||
| TB-30712 | ||||||
| STYLUS PRO 9880 | 2020393 | 154 | DETECTOR,LEAF,B2 | |||
| STYLUS PRO 9880 | 2117078 | 200 | BOARD ASSY.,MAIN | |||
| 6335A,C699 STANDARD | ||||||
| STYLUS PRO 9880 | 2117081 | 201 | BOARD ASSY.,SUB | |||
| 6336A,STANDARD | ||||||
| STYLUS PRO 9880 | 2117084 | 202 | BOARD ASSY.,SUB | |||
| 6337A,STANDARD | ||||||
| STYLUS PRO 9880 | 2093626 | 203 | BOARD ASSY.,SUB | |||
| 6100A,STANDARD | ||||||
| STYLUS PRO 9880 | 2112807 | 204 | PANEL ASSY.,ASP | |||
| STYLUS PRO 9880 | 2111146 | 300 | POWER BOARD | |||
| STYLUS PRO 9880 | 2082070 | 301 | POWER CABLE | |||
| STYLUS PRO 9880 | 2088214 | 301 | POWER CABLE | |||
| STYLUS PRO 9880 | 2103331 | 301 | POWER CABLE | |||
| STYLUS PRO 9880 | 2118683 | 302 | INLET ASSY. | |||
| ,, | ||||||
| STYLUS PRO 9880 | 1449308 | 500 | PAPER OUTLET ROLLER ASSY.,ASP | |||
| TB-31356 | ||||||

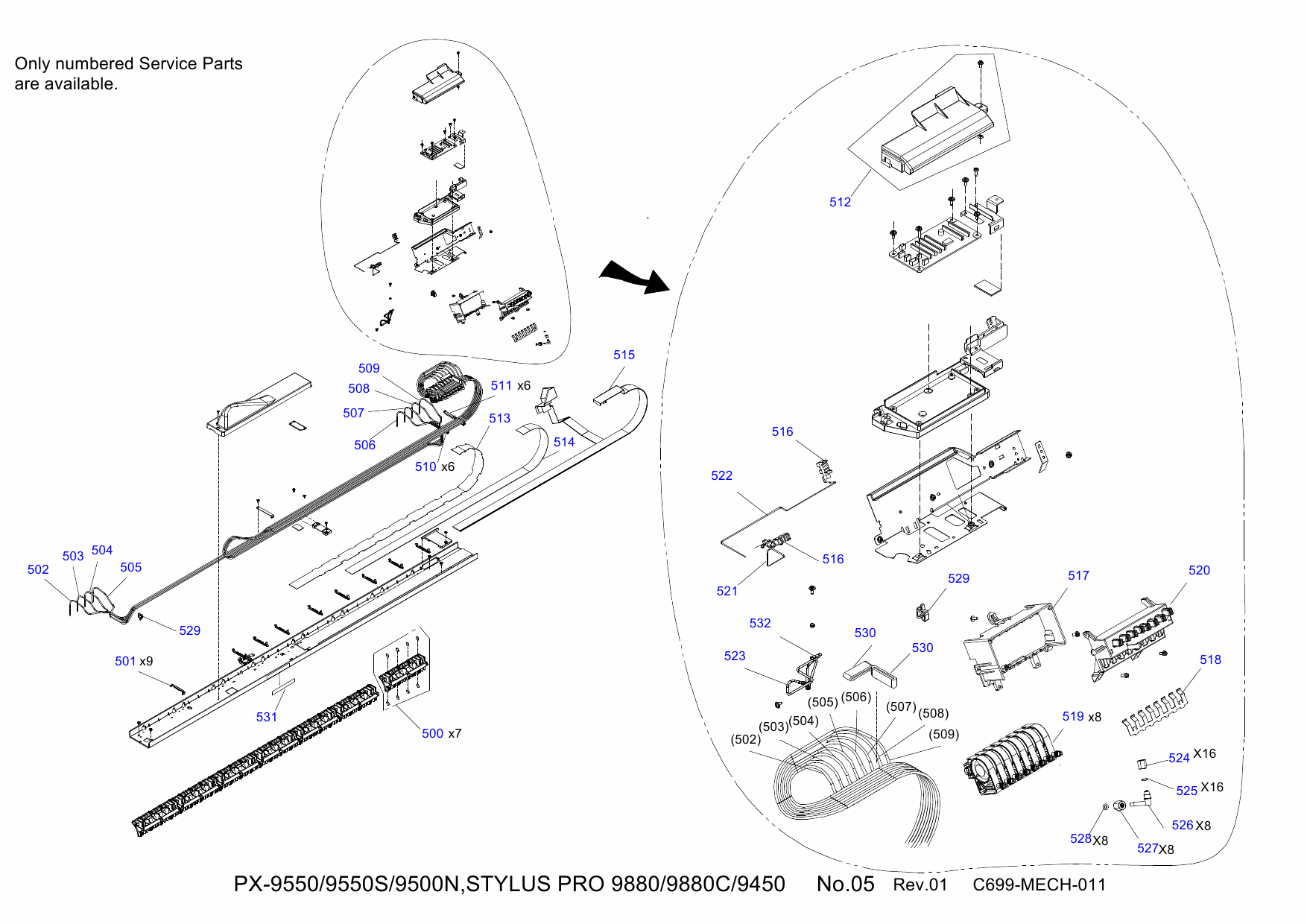

| STYLUS PRO 9880 | 1441646 | 501 | PIPE CLIP(SMALL) | |||
| STYLUS PRO 9880 | 1305824 | 502 | TUBE,SUPPLY,INK,#1,44 | |||
| STYLUS PRO 9880 | 1305825 | 503 | TUBE,SUPPLY,INK,#2,44 | |||
| STYLUS PRO 9880 | 1305826 | 504 | TUBE,SUPPLY,INK,#3,44 | |||
| STYLUS PRO 9880 | 1305827 | 505 | TUBE,SUPPLY,INK,#4,44 | |||
| STYLUS PRO 9880 | 1305828 | 506 | TUBE,SUPPLY,INK,#5,44 | |||
| STYLUS PRO 9880 | 1305829 | 507 | TUBE,SUPPLY,INK,#6,44 | |||
| STYLUS PRO 9880 | 1305830 | 508 | TUBE,SUPPLY,INK,#7,44 | |||
| STYLUS PRO 9880 | 1305831 | 509 | TUBE,SUPPLY,INK,#8,44 | |||
| STYLUS PRO 9880 | 1441348 | 510 | FILM TUBE FIXING | |||
| STYLUS PRO 9880 | 1441634 | 511 | TUBE FFC FIXING | |||
| STYLUS PRO 9880 | 1449315 | 512 | CR COVER ASSY.,ASP | |||
| STYLUS PRO 9880 | 1441349 | 513 | TUBE FILM,44 | |||
| STYLUS PRO 9880 | 1454970 | 514 | GUIDE PLATE,TUBU | |||
| STYLUS PRO 9880 | 1449305 | 515 | CR FFC2,ASP | |||
| STYLUS PRO 9880 | 2111195 | 516 | PHOTO SENSOR,SG2481 | |||
| TB-31381 | ||||||
| STYLUS PRO 9880 | 1305815 | 517 | HOLDER,DUMPER | |||
| STYLUS PRO 9880 | 1305819 | 518 | HOLDING SPRING,DUMPER | |||
| STYLUS PRO 9880 | 1419222 | 519 | VALVE ASSY.,HEAD,C,ESL,ASP | |||
| STYLUS PRO 9880 | 1305817 | 520 | COVER,DUMPER | |||
| STYLUS PRO 9880 | 2111172 | 521 | PG ORG CABLE ASSY. | |||
| STYLUS PRO 9880 | 2111171 | 522 | CR ORG CABLE ASSY. | |||
| STYLUS PRO 9880 | 2111181 | 523 | FG CABLE ASSY. | |||
| STYLUS PRO 9880 | 1469640 | 524 | JOINT SCREWS,M6 | |||
| STYLUS PRO 9880 | 1033483 | 525 | O RING,TUBE FASTEN | |||
| STYLUS PRO 9880 | 1305841 | 526 | JOINT,2,L | |||
| STYLUS PRO 9880 | 1091107 | 527 | CONNECTING SCREW,M7 | |||
| STYLUS PRO 9880 | 1091108 | 528 | O RING,CONNECTER,M7 | |||
| STYLUS PRO 9880 | 1059713 | 529 | CABLE CLAMP | |||
| TB-30208 | ||||||
| STYLUS PRO 9880 | 2014112 | 530 | FERRITE CORE,SSC-40-12-F | |||
| STYLUS PRO 9880 | 1406023 | 531 | LABEL,CUTTER CHANGE2 | |||
| STYLUS PRO 9880 | 2111185 | 532 | FG CABLE | |||
| STYLUS PRO 9880 | 1458668 | 549 | BALL BEARING,MR93ZZ | |||
| STYLUS PRO 9880 | 1449306 | 550 | CARRIAGE ASSY.(CUSHION),ASP | |||
| STYLUS PRO 9880 | 1441359 | 551 | SLIDE GEAR BA | |||
| STYLUS PRO 9880 | 1441745 | 552 | HEAD PG SPRING | |||
| STYLUS PRO 9880 | 1441518 | 553 | H ADJUSTMENT ECCENTRIC SHAFT | |||
| STYLUS PRO 9880 | 1441483 | 554 | H ADJUSTMENT LEVER | |||
| STYLUS PRO 9880 | 1441724 | 555 | HEAD ADJUSTMENT SPRING | |||
| STYLUS PRO 9880 | 1441678 | 556 | CR ENCODER HOLDER B | |||
| STYLUS PRO 9880 | 1441603 | 557 | INK MARK SENSOR COVER | |||
| STYLUS PRO 9880 | 2084550 | 558 | BOARD ASSY.,INK MARK | |||
| STYLUS PRO 9880 | 2111153 | 559 | IM SENSE FFC | |||
| STYLUS PRO 9880 | 2111143 | 560 | SOLENOID | |||
| STYLUS PRO 9880 | 1441566 | 561 | CR LOCK KICKER | |||
| TB-31367 | ||||||
| STYLUS PRO 9880 | 1441702 | 562 | SOLENOID SPRING | |||
| TB-31366 | ||||||
| STYLUS PRO 9880 | 2111170 | 563 | EDGE SENSE CABLE ASSY. | |||
| STYLUS PRO 9880 | 1449302 | 564 | HEAD FFC ASSY.,ASP | |||
| STYLUS PRO 9880 | F187000 | 565 | PRINT HEAD | |||
| 1440 | ||||||
| STYLUS PRO 9880 | 1264620 | 566 | POROUS PAD,CR | |||
| STYLUS PRO 9880 | 1441627 | 567 | HEAD LEVER | |||
| STYLUS PRO 9880 | 1459334 | 569 | WIRE BAND | |||
| STYLUS PRO 9880 | 1261387 | 570 | LABEL,CUT POSITION | |||
| STYLUS PRO 9880 | 2105136 | 571 | BOARD ASSY.,ENCODER,CR,B | |||
| STYLUS PRO 9880 | 1434996 | 572 | CR CUSHION R SET | |||
| STYLUS PRO 9880 | 1457622 | 573 | Replace: 1491061 | |||
| STYLUS PRO 9880 | 1305818 | 574 | HOLDER,HEAD | |||
| STYLUS PRO 9880 | 2111154 | 575 | CR ENC FFC | |||
| STYLUS PRO 9880 | 2111144 | 600 | CR MOTOR ASSY. | |||
| STYLUS PRO 9880 | 1441817 | 601 | CR SCALE SPRING | |||
| TB-31383 | ||||||
| STYLUS PRO 9880 | 1441676 | 602 | SCALE INTERNAL HOLDER C | |||
| STYLUS PRO 9880 | 1426561 | 603 | Replace: 1518668 | |||
| STYLUS PRO 9880 | 1518668 | 603 | SCALE,CR,44 | |||
| STYLUS PRO 9880 | 1441362 | 605 | CR BELT | |||
| STYLUS PRO 9880 | 1449307 | 606 | DRIVE ROLLER C ASSY.,ASP | |||
| TB-31360 | ||||||
| STYLUS PRO 9880 | 1441748 | 607 | PRESSURE SPRING | |||
| TB-31380 | ||||||
| STYLUS PRO 9880 | 1441632 | 608 | P REAR SENSOR HOLDER | |||
| STYLUS PRO 9880 | 2023967 | 609 | BOARD ASSY.,PW | |||
| STYLUS PRO 9880 | 2111155 | 610 | P REAR FFC | |||
| STYLUS PRO 9880 | 2111174 | 611 | P THICK 2 CABLE ASSY. | |||
| STYLUS PRO 9880 | 2111173 | 612 | P THICK 1 CABLE ASSY. | |||
| STYLUS PRO 9880 | 1441687 | 613 | TENSION SPRING BA | |||
| STYLUS PRO 9880 | 1449312 | 614 | CR DRIVE PULLEY ASSY.,ASP | |||
| STYLUS PRO 9880 | 1305755 | 650 | PUMP ASSY.,SUPPLY | |||
| STYLUS PRO 9880 | 1438495 | 651 | TUBE,PRESSURIZING,FULL,B | |||
| STYLUS PRO 9880 | 1305822 | 652 | TUBE,PRESSURIZING,44 | |||
| STYLUS PRO 9880 | 2111106 | 653 | VACUUM FAN ASSY.,MAINTENANCE | |||
| STYLUS PRO 9880 | 1441792 | 654 | SEAL FAN | |||
| STYLUS PRO 9880 | 1441324 | 655 | DUCT FAN B | |||
| STYLUS PRO 9880 | 1441767 | 656 | SEAL HOLDER | |||
| STYLUS PRO 9880 | 1402073 | 657 | POROUS PAD ASSY.,INK EJECT | |||
| STYLUS PRO 9880 | 2060507 | 658 | BOARD ASSY.,IC | |||
| STYLUS PRO 9880 | 2060220 | 659 | CONNECTOR,CARTRIDGE,A | |||
| STYLUS PRO 9880 | 1305746 | 660 | BOX ASSY.,FLUSHING | |||
| STYLUS PRO 9880 | 1441762 | 661 | WASTE INK TUBE R | |||
| STYLUS PRO 9880 | 1441675 | 662 | PAPER GUIDE P,44 | |||
| STYLUS PRO 9880 | 1441674 | 663 | PAPER GUIDE HOLDER | |||
| STYLUS PRO 9880 | 2111164 | 664 | ADSORPTION FAN 1 CABLE ASSY. | |||
| STYLUS PRO 9880 | 2111165 | 665 | ADSORPTION FAN 2 CABLE ASSY. | |||
| STYLUS PRO 9880 | 1468029 | 666 | HOLDER ASSY.,IC,RIGHT,8C,C699 | |||
| STYLUS PRO 9880 | 1449296 | 667 | INK FFC R ASSY.,ASP | |||
| STYLUS PRO 9880 | 1468028 | 668 | HOLDER ASSY.,IC,LEFT,8C,C699 | |||
| STYLUS PRO 9880 | 1449297 | 669 | INK FFC L ASSY.,ASP | |||
| STYLUS PRO 9880 | 1305752 | 670 | BOX ASSY.,FLUSHING,44 | |||
| STYLUS PRO 9880 | 1441801 | 671 | WASTE INK TUBE L | |||
| STYLUS PRO 9880 | 2111166 | 672 | ADSORPTION FAN 3 CABLE ASSY. | |||
| STYLUS PRO 9880 | 1059715 | 700 | EDGE CLAMP | |||
| STYLUS PRO 9880 | 1441782 | 701 | HEXAGON STUD,M3X8 | |||
| STYLUS PRO 9880 | 1419353 | 702 | POROUS PAD,SUB PLATEN BASE,A | |||
| STYLUS PRO 9880 | 1419354 | 703 | POROUS PAD,SUB PLATEN BASE,B | |||
| STYLUS PRO 9880 | 1441661 | 750 | BOAED COVER | |||
| STYLUS PRO 9880 | 1449303 | 751 | TERM R FFC,ASP | |||
| STYLUS PRO 9880 | 1449304 | 752 | INK FFC2,ASP | |||
| STYLUS PRO 9880 | 2111178 | 753 | PUMP PHASE CABLE ASSY. | |||
| STYLUS PRO 9880 | 2112808 | 754 | PANEL FFC,ASP | |||
| STYLUS PRO 9880 | 1414002 | 756 | FLAT CLAMP,FCR-35 | |||
| STYLUS PRO 9880 | 1045442 | 758 | FLAT CORE HOLDER | |||
| STYLUS PRO 9880 | 1449313 | 759 | TERM L FFC2,ASP | |||
| STYLUS PRO 9880 | 2111167 | 760 | CR MOTOR CABLE 2 ASSY. | |||
| STYLUS PRO 9880 | 2111168 | 761 | PF MOTOR CABLE 2 ASSY. | |||
| STYLUS PRO 9880 | 2111177 | 762 | PRESS POS CABLE ASSY. | |||
| STYLUS PRO 9880 | 2111175 | 763 | F COVER CABLE ASSY. | |||
| STYLUS PRO 9880 | 2111176 | 764 | PF ENC CABLE ASSY. | |||
| STYLUS PRO 9880 | 1063145 | 765 | EDGE SADDLE | |||
| STYLUS PRO 9880 | 1234049 | 766 | FLAT CLAMP,FCR-30 V0 | |||
| TB-30758 | ||||||
| STYLUS PRO 9880 | 1234048 | 767 | FLAT CLAMP,FCR-15 V0 | |||
| STYLUS PRO 9880 | 1449314 | 768 | INK FFC1,ASP | |||
| STYLUS PRO 9880 | 2111169 | 769 | PUMP MOTOR CABLE ASSY. | |||
| STYLUS PRO 9880 | 2111180 | 770 | RE SOL CONNECTOR CABLE ASSY. | |||
| STYLUS PRO 9880 | 2111179 | 771 | PRESS MOT CONNECTOR CABLE ASSY. | |||
| STYLUS PRO 9880 | 1468025 | 800 | PUMP CAP ASSY.,C699 | |||
| STYLUS PRO 9880 | 1468023 | 801 | CLEANER,HEAD,C699,ASP | |||
| STYLUS PRO 9880 | 1441755 | 806 | PG REDUCTION GEAR 17-39 | |||
| STYLUS PRO 9880 | 1441681 | 807 | PG IDLE GEAR A BA | |||
| TB-30113 | ||||||
| STYLUS PRO 9880 | 1441685 | 808 | PG IDLE GEAR B BA | |||
| TB-30114 | ||||||
| STYLUS PRO 9880 | 1451035 | 809 | PRESSURE LEVER | |||
| STYLUS PRO 9880 | 1441757 | 810 | PG CONNECTING GEAR 40 | |||
| STYLUS PRO 9880 | 1417240 | 811 | POROUS PAD,INK EJECT,TRAY | |||
| STYLUS PRO 9880 | 2111147 | 850 | PF MOTOR ASSY. | |||
| TB-31430 | ||||||
| STYLUS PRO 9880 | 2035504 | 851 | BOARD ASSY.,ENCODER | |||
| STYLUS PRO 9880 | 1441673 | 852 | PF ENCODER COVER B | |||
| STYLUS PRO 9880 | 1305846 | 853 | SCALE,PF | |||
| STYLUS PRO 9880 | 1441648 | 854 | SPEED REDUCTION PULLEY | |||
| STYLUS PRO 9880 | 1441686 | 855 | X SPEED REDUCTION BELT BA | |||
| STYLUS PRO 9880 | 1467289 | 856 | POROUS PAD,PLATEN | |||
| STYLUS PRO 9880 | 1412711 | 900 | FLANGE,LEFT | |||
| TB-31436 | ||||||
| STYLUS PRO 9880 | 1104332 | 901 | ADAPTER | |||
| STYLUS PRO 9880 | 1441363 | 902 | SCROLLER(2 STANDARD) | |||
| STYLUS PRO 9880 | 1283663 | 903 | E-RING,3,F/UC-3C | |||
| STYLUS PRO 9880 | 1441708 | 904 | STOPPER SHAFT L | |||
| STYLUS PRO 9880 | 1104330 | 905 | FLANGE,RIGHT | |||
| TB-30867 | ||||||
| STYLUS PRO 9880 | 1104833 | 906 | LABEL,ROLLPAPER SET,2/3 INCH | |||
| STYLUS PRO 9880 | 1469209 | 951 | STAND L ASSY. | |||
| STYLUS PRO 9880 | 1432933 | 952 | CASTER (NON STOPPER) | |||
| STYLUS PRO 9880 | 1432934 | 953 | CASTER (STOPPER) | |||
| STYLUS PRO 9880 | 1432941 | 954 | UPPER ARM,L. | |||
| STYLUS PRO 9880 | 1432943 | 955 | UNDER ARM | |||
| STYLUS PRO 9880 | 1432930 | 956 | OUTLET TRAY ASSY.,OVERSEAS. | |||
| STYLUS PRO 9880 | 1432929 | 957 | STAND STAY ASSY. | |||
| STYLUS PRO 9880 | 1469210 | 958 | STAND R ASSY. | |||
| STYLUS PRO 9880 | 1432932 | 959 | SCREW ASSY. | |||
| STYLUS PRO 9880 | 1432935 | 960 | SUPPORT PAPER FILM ASSY. | |||
| STYLUS PRO 9880 | 1432936 | 961 | UPPER ARM HOLDER,L. | |||
| STYLUS PRO 9880 | 1432937 | 962 | UPPER ARM HOLDER,R. | |||
| STYLUS PRO 9880 | 1432938 | 963 | UNDER ARM HOLDER,L. | |||
| Manual Name | Stylus Pro 9880 9880C 9450 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 2.78M |
| Pages | 14 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson Stylus Pro 9880 9880C Series |
Related Products
Check items to add to the cart or
Upsell Products
