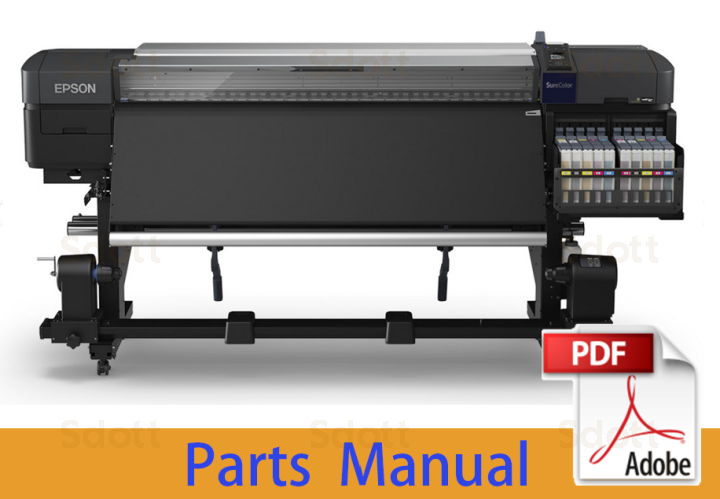

EPSON SureColor F9400 F9430 F9440 F9450 F9460 F9470 F9480 Parts Manual
In stock
SKU
EP-F9400-PM
$1.10
| Manual Name | EPSON SureColor F9400 F9430 F9440 F9450 F9460 F9470 F9480 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 15.1M |
| Pages | 11 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON SureColor F9400 F9430 F9440 F9450 F9460 F9470 Series |
EPSON SureColor F9400 F9430 F9440 F9450 F9460 F9470 F9480 Parts Manual
****** The following content is not included in the PDF manual, please use it online ******
| SURECOLOR SC-F9400 | 1740449 | 1 | SCREW KIT ASSY CG44,ASP |
| SURECOLOR SC-F9400 | 1751650 | 2 | ADJUSTER ASSY.,STAND |
| SURECOLOR SC-F9400 | 1654818 | 3 | CASER,6043STNO |
| SURECOLOR SC-F9400 | 1654819 | 4 | CASER,6043STYS |
| SURECOLOR SC-F9400 | 1735162 | 8 | STAND LEFT ASSY CG44,ASP |
| SURECOLOR SC-F9400 | 1735163 | 9 | STAND RIGHT ASSY CG44,ASP |
| SURECOLOR SC-F9400 | 1654820 | 10 | ADJUSTER,D-B3 10X75FR |

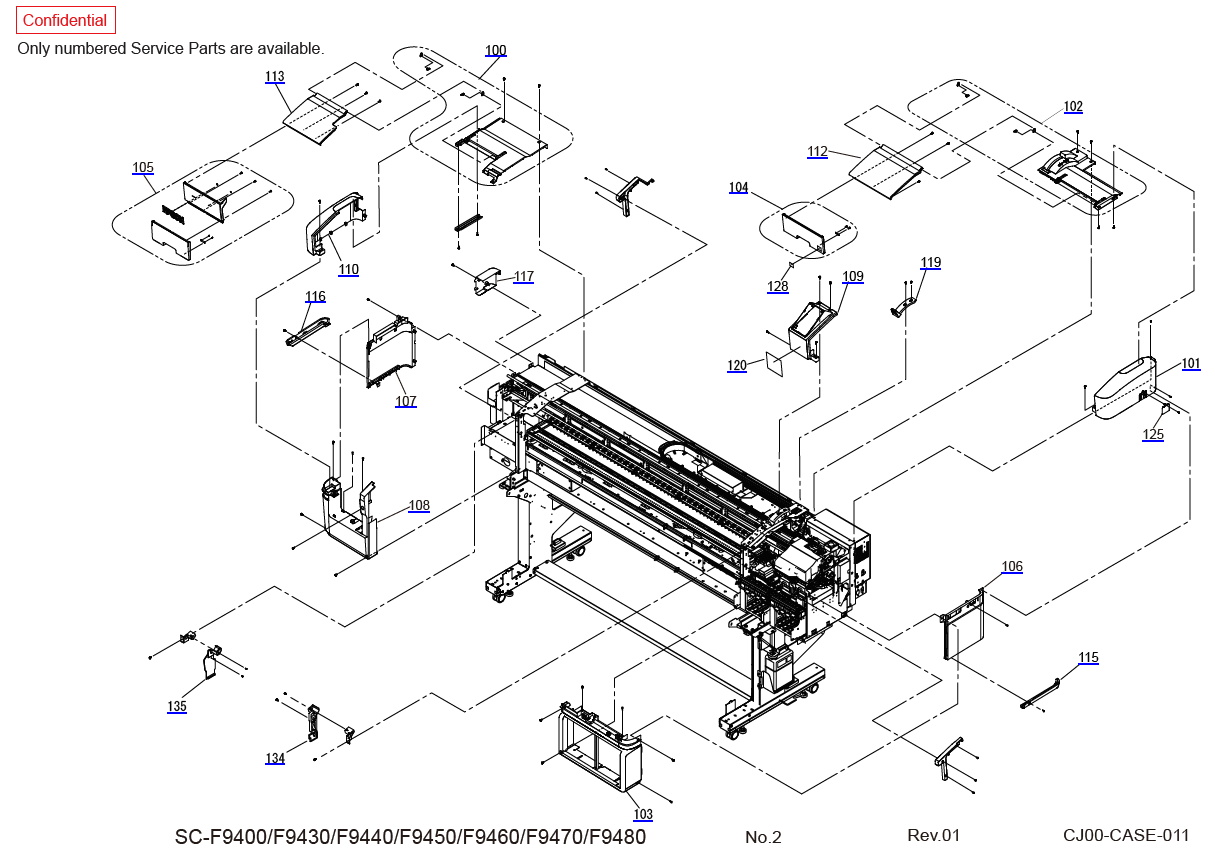

| SURECOLOR SC-F9400 | 1824286 | 100 | COVER TOP LEFT ASSY ESL,ASP |
| SURECOLOR SC-F9400 | 1869872 | 100 | COVER TOP LEFT ASSY ESL,ASP |
| SURECOLOR SC-F9400 | 1805526 | 101 | COVER,SIDE,RIGHT,UPPER,MR |
| SURECOLOR SC-F9400 | 1824288 | 102 | COVER TOP RIGHT ASSY,ASP |
| SURECOLOR SC-F9400 | 1869873 | 102 | COVER TOP RIGHT ASSY,ASP |
| SURECOLOR SC-F9400 | 1824298 | 103 | COVER,FRONT,RIGHT,64, ASSY ESL,ASP |
| SURECOLOR SC-F9400 | 1824289 | 104 | COVER,MAINTENANCE,RIGHT,ASSY,ASP |
| SURECOLOR SC-F9400 | 1824287 | 105 | COVER,MAINTENANCE,LEFT,ASSY,ASP |
| SURECOLOR SC-F9400 | 1824301 | 106 | COVER SIDE RIGHT DOWN ASSY ESL,ASP |
| SURECOLOR SC-F9400 | 1824300 | 107 | COVER,SIDE,LEFT,LOWER ASSY ESL,ASP |
| SURECOLOR SC-F9400 | 1824299 | 108 | COVER,FRONT,LEFT,64, ASSY ESL,ASP |
| SURECOLOR SC-F9400 | 1805524 | 109 | COVER,TOP,PANEL,MR |
| SURECOLOR SC-F9400 | 1731959 | 11 | STAY STAND SUB ASSY,ASP |
| SURECOLOR SC-F9400 | 1770933 | 110 | COVER,SIDE,LEFT,UPPER,D |
| SURECOLOR SC-F9400 | 1805527 | 112 | COVER,MAINTENANCE,MR |
| SURECOLOR SC-F9400 | 1805523 | 113 | COVER,MAINTENANCE,HEAD,MR |
| SURECOLOR SC-F9400 | 1577202 | 115 | HOUSING,BASE,SUPPORT,RIGHT,B |
| SURECOLOR SC-F9400 | 1577204 | 116 | HOUSING,BASE,SUPPORT,LEFT,B |
| SURECOLOR SC-F9400 | 1805522 | 117 | CAP,COVER,TUBE,MR |
| SURECOLOR SC-F9400 | 1552177 | 119 | KNOB,LEVER |
| SURECOLOR SC-F9400 | 1719501 | 12 | STAY,STAND,FRONT |
| SURECOLOR SC-F9400 | 1818651 | 120 | LABEL,MODEL NAME |
| SURECOLOR SC-F9400 | 1770923 | 125 | CAP,CR,ADJUST,D |
| SURECOLOR SC-F9400 | 1682129 | 128 | LABEL,PRECISIONCORE,B |
| SURECOLOR SC-F9400 | 1731541 | 129 | LABEL,PERIODIC MAINTENANCE |
| SURECOLOR SC-F9400 | 1805534 | 131 | COVER,PRINTER,PROTECT,RIGHT,MR |
| SURECOLOR SC-F9400 | 1805531 | 132 | COVER,PRINTER,PROTECT,LEFT,MR |
| SURECOLOR SC-F9400 | 1824296 | 133 | COVER PRINTER ASSY ESLASP |
| SURECOLOR SC-F9400 | 1805535 | 134 | COVER,SUB,RIGHT,MR |
| SURECOLOR SC-F9400 | 1805533 | 135 | COVER,SUB,LEFT,MR |
| SURECOLOR SC-F9400 | 1709780 | 136 | LABEL,WARNING,CHILD GUARD |
| SURECOLOR SC-F9400 | 1715246 | 15 | ACCESSORY KIT.A,ASP |
| SURECOLOR SC-F9400 | 1721817 | 16 | STOPPER,INK EJECT BOTTLE,B |
| SURECOLOR SC-F9400 | 1673002 | 18 | LUBRICATION KIT CE30 ASP |
| SURECOLOR SC-F9400 | 2203957 | 200 | BOARD ASSY.,MAIN |
| SURECOLOR SC-F9400 | 2138619 | 201 | HARNESS |
| SURECOLOR SC-F9400 | 2130945 | 202 | HARNESS |
| SURECOLOR SC-F9400 | 2130944 | 203 | HARNESS |
| SURECOLOR SC-F9400 | 2142891 | 204 | BOARD ASSY.,MAIN |
| SURECOLOR SC-F9400 | 2149216 | 205 | BOARD ASSY.,SUB |
| SURECOLOR SC-F9400 | 2181305 | 206 | HARNESS |
| SURECOLOR SC-F9400 | 2179826 | 207 | HARNESS |
| SURECOLOR SC-F9400 | 2138605 | 208 | HARNESS |
| SURECOLOR SC-F9400 | 1753739 | 21 | TRAY AND TWEEZERS KIT ASP |
| SURECOLOR SC-F9400 | 2188975 | 210 | BOARD ASSY.,POWER SUPPLY |
| SURECOLOR SC-F9400 | 2138596 | 211 | HARNESS |
| SURECOLOR SC-F9400 | 2138598 | 212 | HARNESS |
| SURECOLOR SC-F9400 | 2138614 | 213 | HARNESS |
| SURECOLOR SC-F9400 | 2138618 | 214 | HARNESS |
| SURECOLOR SC-F9400 | 2180921 | 217 | BOARD ASSY.,SUB 6645F,CF79 ASP |
| SURECOLOR SC-F9400 | 2142879 | 218 | BOARD ASSY.,SUB |
| SURECOLOR SC-F9400 | 2139319 | 219 | FAN SET. DC (PROPELLER TYPE) |
| SURECOLOR SC-F9400 | 2174036 | 220 | BOARD ASSY.,PANEL |
| SURECOLOR SC-F9400 | 2143596 | 222 | HARNESS |
| SURECOLOR SC-F9400 | 2188983 | 223 | BOARD ASSY.,POWER SUPPLY |
| SURECOLOR SC-F9400 | 2143594 | 224 | HARNESS |
| SURECOLOR SC-F9400 | 2149057 | 225 | BOARD ASSY.,SUB 6703B,ASP STANDARD |
| SURECOLOR SC-F9400 | 2169990 | 227 | FAN SET. DC(PROPELLER TYPE) |
| SURECOLOR SC-F9400 | 2170609 | 231 | HARNESS,RELAY,SUB-J |
| SURECOLOR SC-F9400 | 2175354 | 233 | BOARD ASSY.,SUB |
| SURECOLOR SC-F9400 | 2170614 | 234 | HARNESS,RELAY,1 |
| SURECOLOR SC-F9400 | 1680677 | 501 | SCALE,PF ASSY ESL,ASP |
| SURECOLOR SC-F9400 | 2171014 | 502 | CABLE,FRONT,COVER,LEFT |
| SURECOLOR SC-F9400 | 1673176 | 503 | FULL,MAINTENANCE OPEN ASSY.CF06,ESL,ASP |
| SURECOLOR SC-F9400 | 2171016 | 504 | CABLE,FRONT,COVER,RIGHT |
| SURECOLOR SC-F9400 | 1673177 | 505 | INK LOCK,MAINTENANCE,ASSY.CF06,ESL,ASP |
| SURECOLOR SC-F9400 | 1783875 | 506 | CARRIGE ASSY B ESL CF79,ASP |
| SURECOLOR SC-F9400 | 1834960 | 506 | CARRIGE ASSY B ESL CF79,ASP |
| SURECOLOR SC-F9400 | 1480133 | 507 | PULLEY,DRIVEN |
| SURECOLOR SC-F9400 | 1480177 | 508 | BOARD ASSY.,ENCODER |
| SURECOLOR SC-F9400 | 2208696 | 508 | BOARD ASSY.,ENCODER |
| SURECOLOR SC-F9400 | 1662705 | 509 | BELT,CR |
| SURECOLOR SC-F9400 | 2143464 | 510 | PHOTO INTERRUPTER |
| SURECOLOR SC-F9400 | FA25010 | 511 | PRINT HEAD,IE343J-1 |
| SURECOLOR SC-F9400 | 2183502 | 512 | BOARD ASSY.,INK MARK,D |
| SURECOLOR SC-F9400 | 2109393 | 513 | BOARD ASSY.,DETECTOR,PW,B |
| SURECOLOR SC-F9400 | 2158133 | 514 | HARNESS,CR,ENCODER |
| SURECOLOR SC-F9400 | 2142289 | 515 | HARNESS,IMS |
| SURECOLOR SC-F9400 | 2158134 | 516 | HARNESS,PW |
| SURECOLOR SC-F9400 | 2171011 | 517 | CABLE,SENSOR,PG |
| SURECOLOR SC-F9400 | 2174252 | 518 | BOARD ASSY.,SUB |
| SURECOLOR SC-F9400 | 1680697 | 519 | OIL PAD ASSY ESL.,ASP |
| SURECOLOR SC-F9400 | 1710362 | 520 | FRAME APG ASSY .A,ESL,ASP |

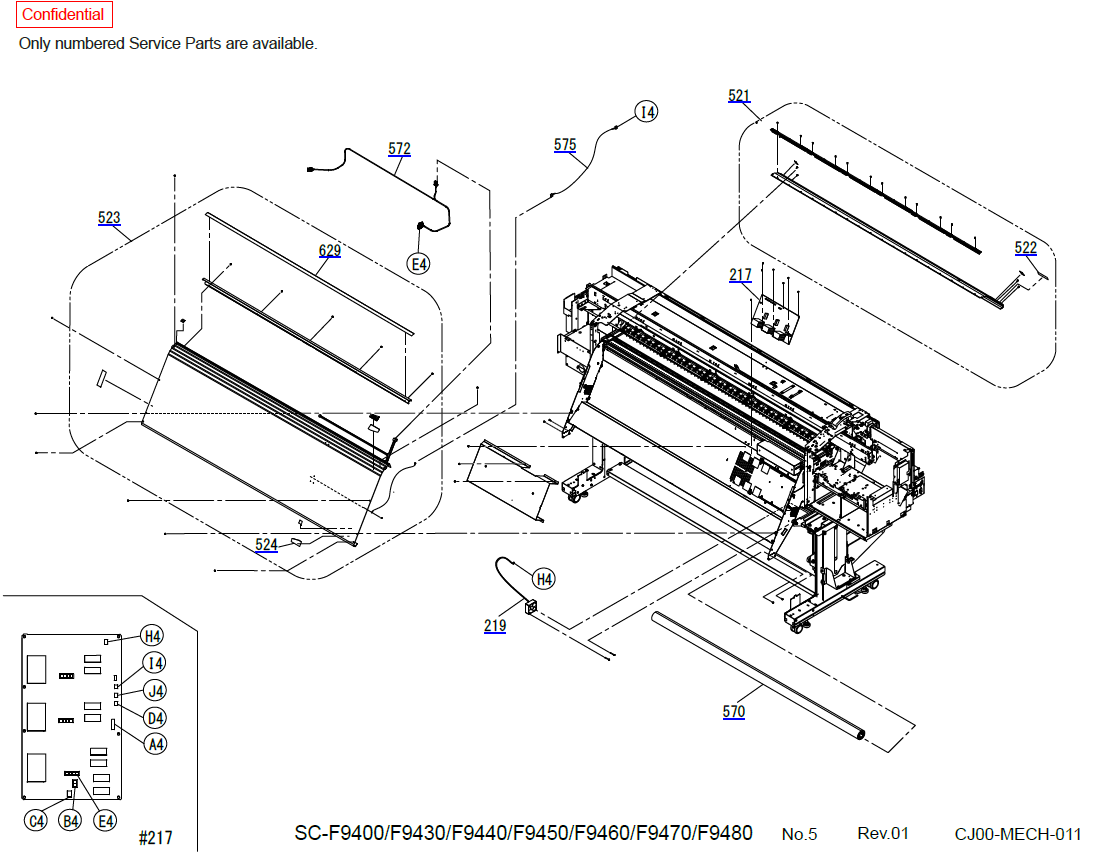

| SURECOLOR SC-F9400 | 1824295 | 521 | COVER HEATER TOP REAR ASSY ESL |
| SURECOLOR SC-F9400 | 1809586 | 522 | LABEL,SET,PRE HEATER,2L |
| SURECOLOR SC-F9400 | 1824294 | 523 | AFTER HEATER ASSY ESL |
| SURECOLOR SC-F9400 | 1809585 | 524 | LABEL,SET,AFTER HEATER,2L |
| SURECOLOR SC-F9400 | 1824297 | 525 | PANEL ASSY ESL,ASP |
| SURECOLOR SC-F9400 | 1684361 | 526 | POROUS PAD,FLASHING BOX.,ASSY ESL,ASP |
| SURECOLOR SC-F9400 | 1731956 | 527 | FLASHING BOX ASSY CF79 ESL AND PAD,ASP |

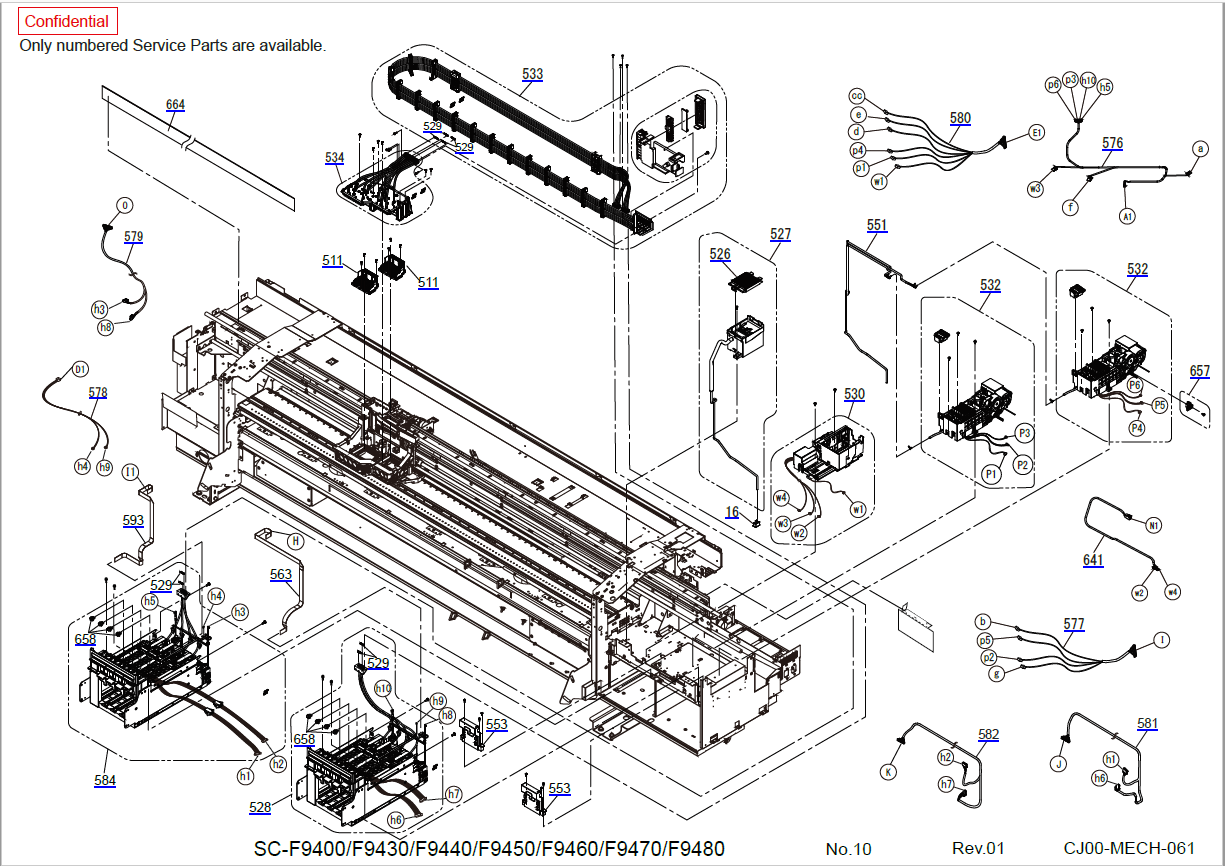

| SURECOLOR SC-F9400 | 1824306 | 528 | IH ASSY.,L CJ00,ASP |
| SURECOLOR SC-F9400 | 1863579 | 528 | IH ASSY.,L CJ00,ASP |
| SURECOLOR SC-F9400 | 1575095 | 529 | SEAL RUBBER,JOINT.,ASP |
| SURECOLOR SC-F9400 | 1764639 | 530 | CLOTH WIPER CARRIAGE ASSY .A, ESL,ASP |
| SURECOLOR SC-F9400 | 1834253 | 532 | PUMP,CAP ASSY CG44 B ESL,ASP |
| SURECOLOR SC-F9400 | 1860431 | 532 | PUMP,CAP ASSY CG44 B ESL,ASP |
| SURECOLOR SC-F9400 | 1731955 | 533 | Ersetzt durch: 1863585 |
| SURECOLOR SC-F9400 | 1863585 | 533 | TUBE ASSY CF79 ESL,ASP |
| SURECOLOR SC-F9400 | 1809741 | 534 | DUCT,CR ASSY A CG44 ESL,ASP |
| SURECOLOR SC-F9400 | 1863899 | 534 | DUCT,CR ASSY A CG44 ESL,ASP |
| SURECOLOR SC-F9400 | 1574106 | 535 | HARNESS,HEAD ASSY,ASP |
| SURECOLOR SC-F9400 | 1574107 | 536 | HARNESS,HEAD ASSY,C,ASP |
| SURECOLOR SC-F9400 | 1662703 | 537 | SCALE,CR |
| SURECOLOR SC-F9400 | 1680708 | 538 | FAN ASSY ESL,ASP |
| SURECOLOR SC-F9400 | 1559726 | 540 | SEAL,IMS |
| SURECOLOR SC-F9400 | 2169091 | 542 | MOTOR ASSY.,PF |
| SURECOLOR SC-F9400 | 2170578 | 543 | BOARD ASSY.,ENCODER,PF |
| SURECOLOR SC-F9400 | 2170930 | 544 | HARNESS,PF,ENCORDER |
| SURECOLOR SC-F9400 | 2170931 | 546 | HARNESS,SENSOR,PE |
| SURECOLOR SC-F9400 | 2170576 | 547 | MOTOR,ASSY.,CR |
| SURECOLOR SC-F9400 | 2211420 | 547 | MOTOR,ASSY.,CR |
| SURECOLOR SC-F9400 | 2182572 | 548 | MOTOR ASSY.,ASF,SUB |
| SURECOLOR SC-F9400 | 2139286 | 549 | CABLE,MOTOR,APG |
| SURECOLOR SC-F9400 | 1673000 | 550 | FAN SET.DC,ASSY ASP |
| SURECOLOR SC-F9400 | 1735174 | 551 | TUBE,INK EJECT ASSY CG44 ESL,ASP |
| SURECOLOR SC-F9400 | 1559635 | 552 | COVER,CR |
| SURECOLOR SC-F9400 | 1559650 | 553 | SPACER,CR,B |
| SURECOLOR SC-F9400 | 1709897 | 554 | SHEET,GUIDE RAIL,TUBE,LOWER,B |
| SURECOLOR SC-F9400 | 1664858 | 555 | TIMING BELT,PF |
| SURECOLOR SC-F9400 | 1824303 | 556 | MEDIA EDGE PLATE ASSY ESL |
| SURECOLOR SC-F9400 | 2139279 | 559 | CABLE,RELAY,FRONT,COVER,LEFT |
| SURECOLOR SC-F9400 | 2174478 | 560 | CABLE,RELAY,MAINTENANCE COVER,LEFT |
| SURECOLOR SC-F9400 | 2158128 | 561 | HARNESS,PANEL |
| SURECOLOR SC-F9400 | 2158148 | 562 | HARNESS |
| SURECOLOR SC-F9400 | 2158129 | 563 | HARNESS,CRCM1 |
| SURECOLOR SC-F9400 | 2139289 | 564 | CABLE,SENSOR,CR |
| SURECOLOR SC-F9400 | 2158139 | 565 | HARNESS,CR |
| SURECOLOR SC-F9400 | 2139297 | 566 | CABLE,RELAY,MOTOR,PF |
| SURECOLOR SC-F9400 | 2171010 | 567 | CABLE,SENSOR,MANUAL RELEASE |
| SURECOLOR SC-F9400 | 2171009 | 568 | CABLE,RELAY,FAN |
| SURECOLOR SC-F9400 | 2139304 | 569 | CABLE,RELAY,FAN,B |
| SURECOLOR SC-F9400 | 1722157 | 570 | PIPE,GUIDE,REEL |
| SURECOLOR SC-F9400 | 2170935 | 572 | CABLE,RELAY,HEATER,B |
| SURECOLOR SC-F9400 | 2170934 | 575 | CABLE,RELAY,THERMISTOR |
| SURECOLOR SC-F9400 | 2170595 | 576 | HARNESS,RELAY,MOTOR,11 |
| SURECOLOR SC-F9400 | 2170597 | 577 | HARNESS,RELAY,ENCODER,21 |
| SURECOLOR SC-F9400 | 2143600 | 578 | HARNESS |
| SURECOLOR SC-F9400 | 2143601 | 579 | HARNESS |
| SURECOLOR SC-F9400 | 2170599 | 580 | HARNESS,RELAY,SENSOR,3 |
| SURECOLOR SC-F9400 | 2143603 | 581 | HARNESS |
| SURECOLOR SC-F9400 | 2143604 | 582 | HARNESS |
| SURECOLOR SC-F9400 | 1824307 | 584 | IH ASSY.,R CJ00,ASP |
| SURECOLOR SC-F9400 | 1863580 | 584 | IH ASSY.,R CJ00,ASP |
| SURECOLOR SC-F9400 | 1585151 | 586 | HARNESS,HEAD,ASSY.,S ESL ASP |
| SURECOLOR SC-F9400 | 1585152 | 587 | HARNESS,HEAD,ASSY.,S-C ESL ASP |
| SURECOLOR SC-F9400 | 2158130 | 593 | HARNESS,CRCM2 |
| SURECOLOR SC-F9400 | 1602678 | 598 | SHEET,PROTECT,INK,B |
| SURECOLOR SC-F9400 | 1680676 | 604 | PULLEY,ROLLER,PF ASSY ESL,ASP |
| SURECOLOR SC-F9400 | 1685414 | 615 | SUB SHAFT,SLIDER ASSY ,ASP |
| SURECOLOR SC-F9400 | 2169089 | 617 | FAN ASSY.,CR |
| SURECOLOR SC-F9400 | 2153099 | 618 | HARNESS |
| SURECOLOR SC-F9400 | 2169335 | 622 | HARNESS,RELAY,CR MOTOR COOLING FAN |
| SURECOLOR SC-F9400 | 2169336 | 623 | HARNESS,RELAY,CR MOTOR |
| SURECOLOR SC-F9400 | 1662819 | 629 | ANTISTATIC CLOTH,EJ |
| SURECOLOR SC-F9400 | 2170923 | 630 | CABLE,SENSOR,NIP |
| SURECOLOR SC-F9400 | 2150441 | 631 | MOTOR ASSY.,WIPER |
| SURECOLOR SC-F9400 | 2170924 | 632 | CABLE,MOTOR,NIP |
| SURECOLOR SC-F9400 | 2167755 | 633 | BOARD ASSY.,SUB |
| SURECOLOR SC-F9400 | 2170604 | 634 | HARNESS,RELAY,2 |
| SURECOLOR SC-F9400 | 2170933 | 637 | CABLE,HEATER,SENSOR,RELAY |
| SURECOLOR SC-F9400 | 2170932 | 638 | CABLE,HEATER,SENSOR |
| SURECOLOR SC-F9400 | 2170598 | 641 | HARNESS,RELAY,ENCODER,3 |
| SURECOLOR SC-F9400 | 1662767 | 642 | FASTEN PLATE,ROLLER,DRIVEN |
| SURECOLOR SC-F9400 | 2170602 | 644 | HARNESS,RELAY,AC,1 |
| SURECOLOR SC-F9400 | 2170603 | 645 | HARNESS,RELAY,SUB |
| SURECOLOR SC-F9400 | 2170610 | 648 | HARNESS,RELAY,AC,2 |
| SURECOLOR SC-F9400 | 1708279 | 649 | ROLLER,DRIVEN |
| SURECOLOR SC-F9400 | 1746803 | 650 | COVER,HEAD,CR ASSY A CF79,ASP |
| SURECOLOR SC-F9400 | 1845879 | 650 | COVER,HEAD,CR ASSY A CF79,ASP |
| SURECOLOR SC-F9400 | 1690512 | 652 | COIL SPRING ASSY ESL,ASP |
| SURECOLOR SC-F9400 | 1748038 | 654 | SHEET,PROTECTION,IMS,B |
| SURECOLOR SC-F9400 | 1843036 | 654 | SHEET,PROTECTION,IMS,B |
| SURECOLOR SC-F9400 | 1662773 | 655 | HOLDER,PAPER GUIDE,FRONT |
| SURECOLOR SC-F9400 | 1662783 | 656 | FASTEN PLATE,PAPER GUIDE,FRONT |
| SURECOLOR SC-F9400 | 1680696 | 657 | GUIDE DRIVER,FR,IS,MAIN ASSY,ASP |
| SURECOLOR SC-F9400 | 2150699 | 658 | LEAF SENSOR,P599 |
| SURECOLOR SC-F9400 | 1560623 | 664 | SHEET,GUIDE RAIL,TUBE,FRONT |
| SURECOLOR SC-F9400 | 1750841 | 671 | PULLEY,DRIVEN ASSY ESL,ASP |
| SURECOLOR SC-F9400 | 1662736 | 672 | SHAFT,ROLLER,DRIVEN |
Related Products
Check items to add to the cart or
Validate your login
